Retrofit Running Boards - AN88.30-P-0005LWH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3
except code 5U1 (Aluminum rear axle carrier)
except code 830 (China version)
except code U98 (LITHIUM-ION-STARTERBATTERY (LISB))
| Remove | |||
| 1 | Remove left and right longitudinal member panel | ||

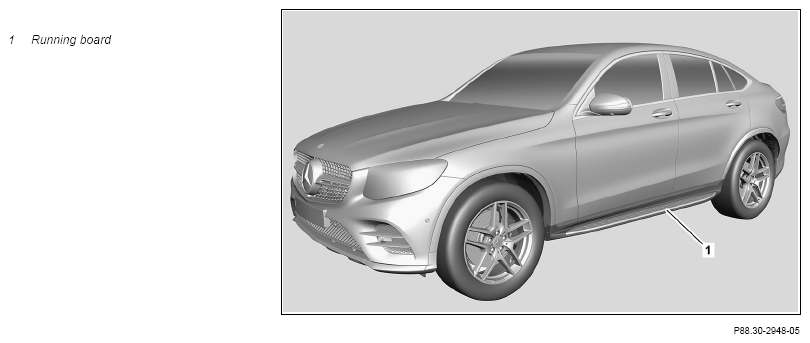

The expansion rivets and nuts with which the longitudinal member panels were fastened, are reused for installation of the running boards (1). |
AR88.80-P-6000LWG | ||
| Install | |||
| 2 | Retrofit running board (1) | AN88.30-P-0005-01LWH | |
| 3 | Install remaining parts | ||
| Update Vehicle Documentation (VeDoc) | |||
| 4 | Enter special equipment in online vehicle data card | ||
| 5 | Attach note "Running board retrofitted according to AN88.30-P-0005LWH" to field organization texts for design group 88 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 99 (see EPC) | Parts kit for running boards | 1 |
