Retrofit Running Boards - AN88.30-P-0005-01LWH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3

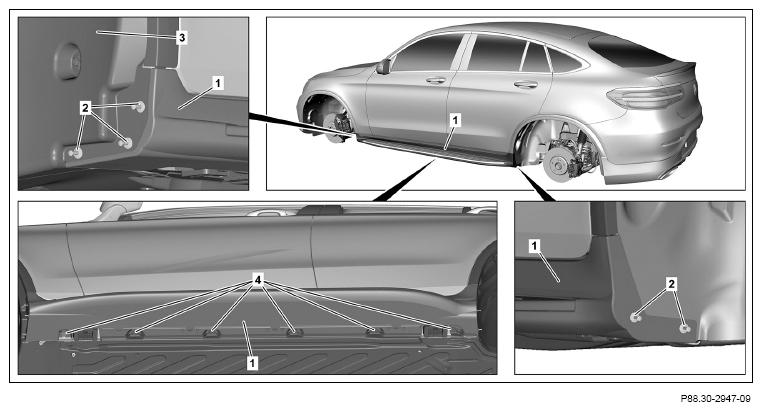

The following work procedure is shown on the left side of the vehicle, the installation is to be performed on the right.
- Remove cover (1.1) from running board (1).
- Install bracket (9) on longitudinal member and fasten with nuts (10).
- Install running board (1) on bracket (9).
Ensure that catch tabs (1.6, 1.7 and 1.8) as well as retaining clips (1.5) are seated correctly.
- Arrest catch tabs (1.6, 1.7 and 1.8) as well as retaining clips (1.5) in bracket (9) by pressing on running board (1).
- Fasten edge guard on rear wheel arch on running board (1).
- Screw nuts (4) tight.
- Install expansion rivets (2).
- Install cover (1.1) on running board (1).
