Retrofit Roof Spoiler - AZ88.30-P-0015LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.9 except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

	Install

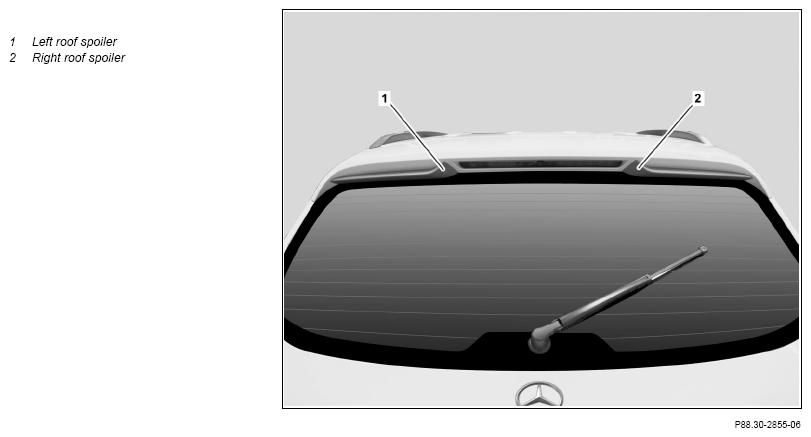

1	Clean liftgate in area of left roof spoiler (1) and right roof spoiler (2) to be installed	Cleaner	*BR00.45-Z-1025-04A
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
2	Paint left roof spoiler (1) and right roof spoiler (2)	Clarify with customer whether left roof spoiler (1) or right roof spoiler (2) is to be painted. Should this not be the case, do not perform this operation step.
			AZ88.30-P-0015-01LWG
		Use only paint and paint system approved by Daimler AG.
3	Install left roof spoiler (1) and right roof spoiler (2) on liftgate		AZ88.30-P-0015-03LWG
		When pressing on, ensure that the pressure is applied directly on the adhesive tape. Otherwise there may be adhesion problems. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 h.
	Update Vehicle Documentation (VeDoc)
4	Attach note "Roof spoiler retrofitted according to AZ88.30-P-0015LWG" field organization texts for design group 67 and 88

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Roof spoiler parts kit	1
