Retrofit Mud Flaps - AZ88.30-P-0003LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.9 (except 253.964/988/989) except code 772 (AMG styling - Front spoiler, side skirts) except code 830 (China version)
| Install | |||
| 1 | Detach rear complete wheels | ||
| AR40.10-P-1102A | |||

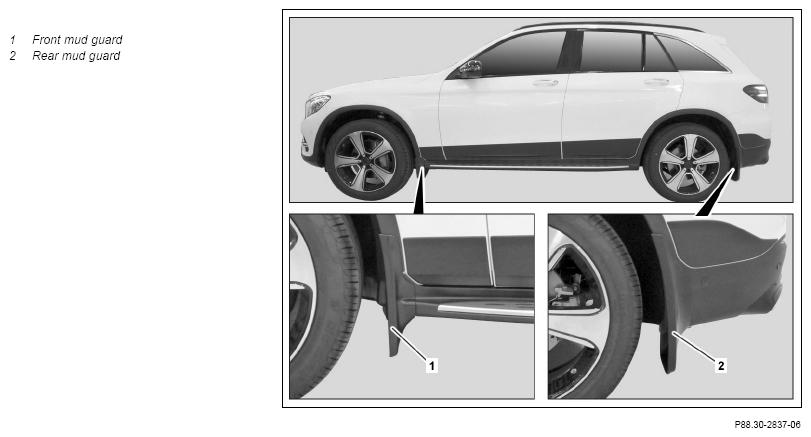

| 2 | Install front mud guard (1) | AZ88.30-P-0003-03LWG | |
| 4298 UV primer | *BR00.45-Z-1125-02A | ||
| Cleaner | *BR00.45-Z-1025-04A | ||
| 3 | Install rear mud guard (2) | AZ88.30-P-0003-04LWG | |
| 4298 UV primer | *BR00.45-Z-1125-02A | ||
| Cleaner | *BR00.45-Z-1025-04A | ||
| 4 | Install rear complete wheels | ||
| AR40.10-P-1102A | |||
| Update Vehicle Documentation (VeDoc) | |||
| 5 | Attach note "Mud guard retrofitted according to AZ88.300003L" in field organization texts for design group (KG) 88 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
| BR00.45-Z-1125-02A | 4298 UV primer | A 007 989 96 71 10 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Mud guard parts kit | 1 |
