Retrofit Front Mud Guards - AZ88.30-P-0003-03LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1125-02A	4298 UV primer	A 007 989 96 71 10

The following operation steps are shown on the left side of the vehicle and can be accomplished analogously on the right side of the vehicle.

Clean front fender in crosshatched area.
Prime front fender in crosshatched area.
Observe processing notes for primer.

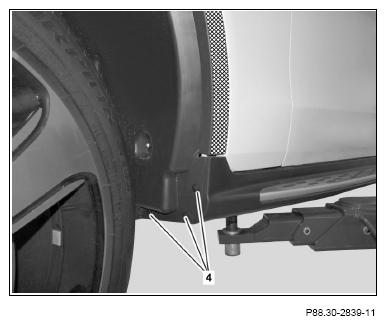

Remove expansion rivet (4) from fender liner.
Expansion rivets (4) are reused.

Courtesy of MERCEDES-BENZ USA

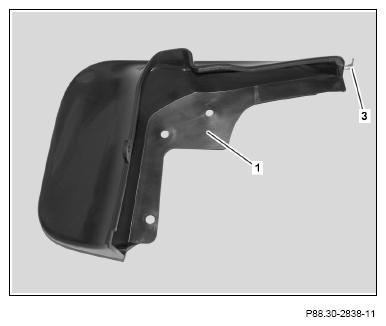

Slightly remove protective foil (3) from adhesive strip at end and bend in direction of outer edge of front mud guard (1) (arrow) at an angle of 45°.

Courtesy of MERCEDES-BENZ USA

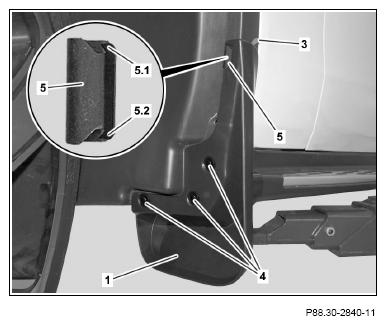

Position front mud guard (1) and install expansion rivet (4) on front mud guard (1).
Install retaining clip (5).
Ensure that the retaining clip (5) is installed so that the barbs (5.1 and 5.2) can reach into the front mud guard (1).
Remove protective foil (3) and firmly press on front mud guard (1) in area of adhesvie strips.

Courtesy of MERCEDES-BENZ USA

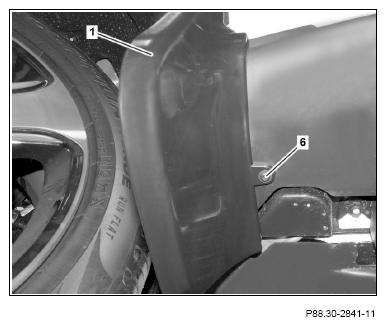

Screw self tapping screw (6) into front mud guard (1).

Courtesy of MERCEDES-BENZ USA
