Retrofit Front Illuminated Mercedes Star - AZ88.40-P-0011LWH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.384/953/983/984 as of 6/1/19 with code 460 (Canada version)
except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 253.384/953/983/984 as of 6/1/19 with code 494 (US version)
except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 253.384/953/983/984 as of 6/1/19 with code 623 (Gulf States version)
except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 253.384/953/983/984 as of 6/1/19 with code 737L (Mexico)
except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
MODIFICATION NOTES
| 09.10.2020 | Change to installing ground point in the wiring harness for the illuminated Mercedes star (1). | Operation steps 5 and basic data |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||

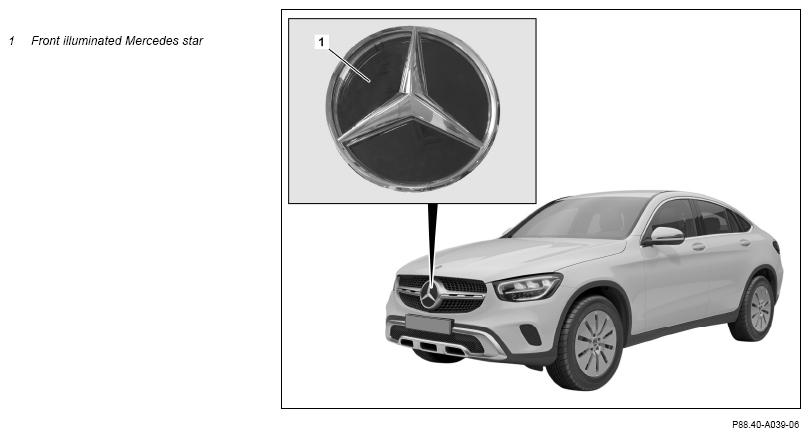

| 1 | Remove Mercedes star. | ||
| AR88.40-P-4050LW | |||

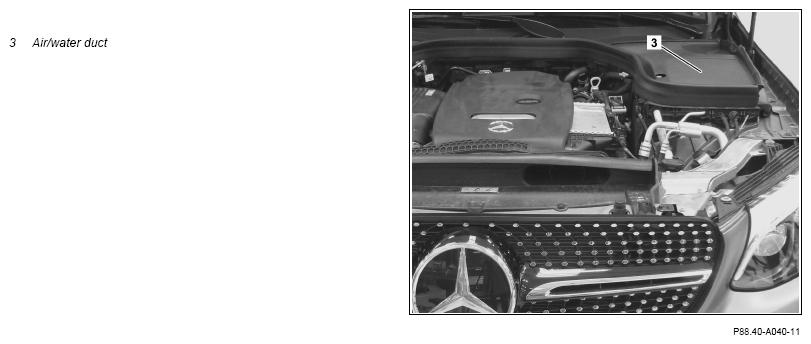

| 2 | Remove air/water duct (3). | ||

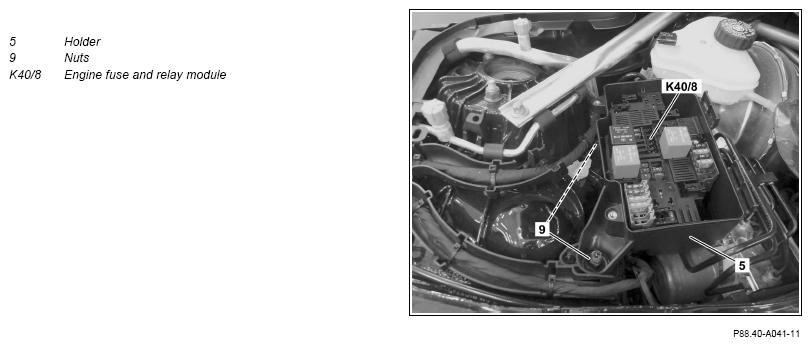

| 3 | Unscrew nuts (9) and unfasten holder (5). | ||
| Install | |||
| 4 | Prepare holder (5) of the engine fuse and relay module (K40/8) for retrofitting the wiring harness for the front illuminated Mercedes star. | AZ88.40-P-0011-03LWH | |
| 5 | Retrofit wiring harness for front illuminated Mercedes star. | AZ88.40-P-0011-01LWI | |
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A | |
| Topical note | Notes on the use of paint scraping nuts on ground connections - | AH00.19-P-1000-20A | |
| *BA00.19-P-1054-01E | |||
| 6 | Install remaining parts. | ||
| Check | |||
| 7 | Carry out function check. | ||
| Update vehicle documentation (VeDoc) | |||
| 8 | Attach note "Illuminated Mercedes star retrofitted as per AZ88.40-P-0011LWH" under field organization texts for DG 54 and DG 88. |
GROUND POINTS
| Number | Designation | Model 253 (except 253.99) as of model year 2020 | Model 253 (except 253.99) up to model year 2020 | |
|---|---|---|---|---|
| BA00.19-P-1054-01E | Jump-start connection point ground point | Nm | 16 | 16 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see XENTRY Portal parts information) | Front illuminated Mercedes star parts kit | 1 |
