Prepare Holder Of Engine Fuse And Relay Module For Retrofitting Wiring Harness For Front Illuminated Mercedes Star - AZ88.40-P-0011-03LWH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 as of 6/1/19

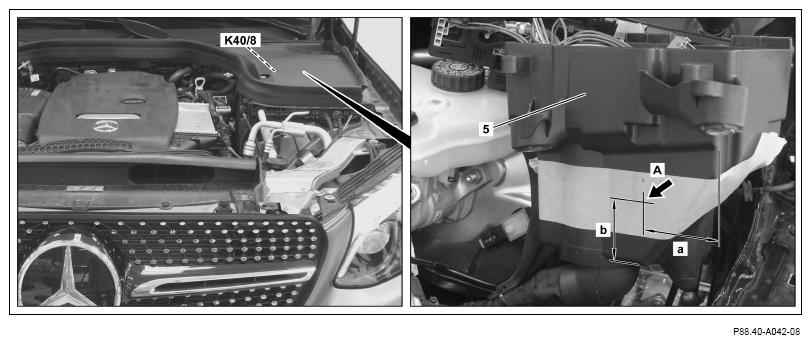

- Mark bore center point on the bracket (5) based on the dimensions (a, b).
Dimensions:
a = 60 mm (2.36 inches)
b = 50 mm (1.97 inches)
- Drill a hole with a diameter of 18 mm (0.71 inches) at the marked point (arrow A).
Do not drill hole too deep.
Otherwise the engine fuse and relay module (K40/8) may be damaged.
- Deburr bore on both sides.
- Remove drilling chips.
