(Retrofit Front Illuminated Mercedes Star - AZ88.40-P-0010LWG)

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253 (except 253.364/954/964) up to 5/31/19

except code 233 (DISTRONIC PLUS)

except code 239 (Active Distance Assist DISTRONIC)

except code 460 (Canada version)

except code 494 (US version)

G14471949Courtesy of MERCEDES-BENZ USA
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Remove side paneling of instrument panel at left
2 Remove left floor covering on front footwell
REFER TO TESTING & REPAIR     AR68.20-P-2050LW
3 Disconnect battery ground line
REFER TO TESTING & REPAIR     AR54.10-P-0003LW
4 Remove Mercedes star from radiator grille
REFER TO TESTING & REPAIR   IMPORTANT Mercedes star is an omitted part. AR88.40-P-4050LW
INSTALLING Install
5 Install illuminated Mercedes star control unit   AZ88.40-P-0010-02LWG
    Binder Duotec® Pilz in Pilz Klett - with adhesive 32 *BR00.45-Z-1084-02A
6 Install wiring harness for illumination Mercedes star   AZ88.40-P-0010-01LWG
    TORQUE SPECIFICATION Left front footwell ground point *BA00.19-P-1016-01E
    TORQUE SPECIFICATION Left front footwell ground point (CAN) *BA00.19-P-1017-01E
    Butyl cord Terostat 81 Ø 6 mm *BR00.45-Z-1085-01A
    SPECIAL TOOL Wiring harness repair kit, basic Fig 2
    SPECIAL TOOL New passenger car wiring harness repair kit Fig 1

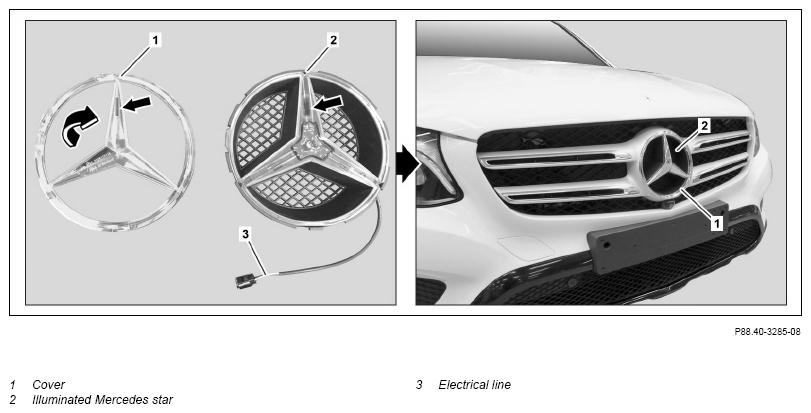

7 Position cover (1) on illuminated Mercedes star (2) to that the markings (arrows) coincide
8 Install illuminated Mercedes star (2) and connect
REFER TO TESTING & REPAIR     AR88.40-P-4050LW
    IMPORTANT Position electrical line (3) on left in direction of travel.
9 Install remaining parts
  Update Vehicle Documentation (VeDoc)
10 Attach note "Illuminated Mercedes star retrofitted according to AZ88.40-P-0010LWG" field organization texts for design group 88.
INSPECT Check
11 Cover light sensor in windshield and check illuminated Mercedes star for proper function IMPORTANT The illuminated Mercedes star is switched on when a door is opened or the ambient illumination is activated. The illuminated Mercedes star switches off automatically after approx. 5 minutes after a door is opened or after the ambient illumination switches off automatically.
GROUND POINTS

Number Designation Model 253 (except 253.99) Model 253.99
BA00.19-P-1016-01E Left front footwell ground point W15/5 Nm 10 10
GROUND POINTS

Number Designation Model 253 (except 253.99) Model 253.99
BA00.19-P-1017-01E Left front footwell ground point (CAN) W15/6 Nm 10 10
Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G13743246Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G12618300Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1084-02A Binder Duotec® Pilz in Pilz Klett - with adhesive 32 Klettband Technik Schultz UG Schulstrasse 6
71111 Waldenbuch Germany
Tel.: +49 (0) 7157 6754-83 or 82
Fax: +49 (0) 7157 6696815
info@klettband-technik.de
http://www.klettband-technik.de
BR00.45-Z-1085-01A Butyl cord Terostat 81 Ø 6 mm A 004 989 61 20
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 98 (see EPC) Parts kit for illuminated Mercedes star 1
