Retrofit Front Illuminated Mercedes Star Control Unit - AZ88.40-P-0010-02LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1084-02A | Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |

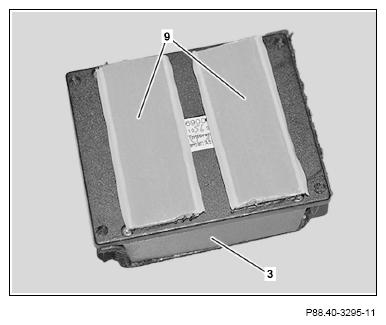

- Glue velcro strips (9) to bottom on illuminated Mercedes star control unit (3) as shown.
The bonding surfaces must be free of dust and grease.
- Remove carrier foils from velcro strips (9).

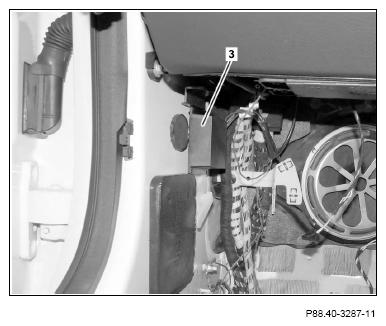

- Glue illuminated Mercedes star control unit (3) on the side of driver side footwell as shown.
Ensure that the wiring harnesses are not damaged by chafing or pinching.
Otherwise the corresponding wiring harness must be replaced.
