Retrofit AMG Exterior Accessories - AZ88.00-P-0006LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3 (except 253.388/389), 253.9 (except 253.988/989) with code 772 (AMG styling - Front spoiler, side skirts)
Model 253.3 (except 253.388/389), 253.9 (except 253.988/989) with code P31 (AMG Line exterior)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by inhaling vapors or swallowing adhesive. Risk of injury caused by adhesive coming into contact with skin and eyes | Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. | AS00.00-Z-0016-01A | |
| Clean | |||

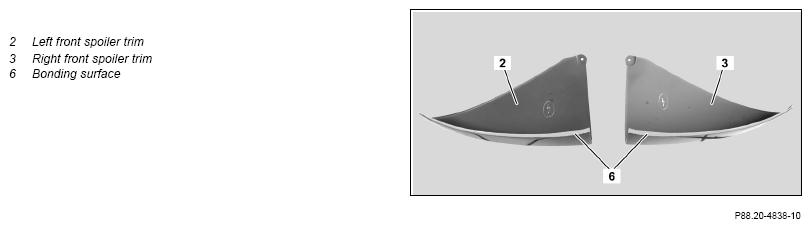

| 1 | Clean bonding surfaces (6) of left and right front spoiler trims (2 and 3) | ||
| Cleaner | *BR00.45-Z-1025-04A | ||
| 2 | Clean bonding surface of rear diffuser trim (10) | ||
| Cleaner | *BR00.45-Z-1025-04A | ||
| Install | |||
| 3 | Retrofit front spoiler on front bumper | AZ88.20-P-0018-01LWG | |
| 4 | Retrofit rear diffuser on bumper | AZ88.30-P-0020-02LWG | |
| Update Vehicle Documentation (VeDoc) | |||
| 5 | Attach note "AMG Exterior accessories retrofitted according to AZ88.00-P-0006LWG" under field organization texts to design group 88. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| A 253 880 93 03 | Front bumper trim (front spoiler lip) | 1 |
| A 253 880 94 03 | Rear bumper paneling (rear diffuser) | 1 |
