Retrofit Rear Diffuser On Bumper - AZ88.30-P-0020-02LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.3/9

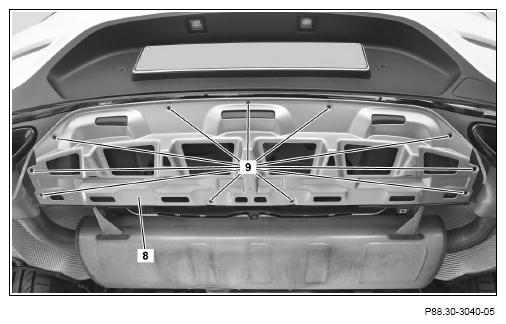

Position the rear diffuser basic carrier (8) and align.
Helper required.
Drill the hole (9) indicated in the center at the top of the rear diffuser basic carrier (8) with a diameter-4.0 mm through the bumper.
Remove the protective foil in the area where the hole is to be drilled.

Ensure that it is correctly aligned.

Courtesy of MERCEDES-BENZ USA
Drill the holes (9) indicated in the center at the top of the rear diffuser basic carrier (8) to the outside with a diameter-4.0 mm through the bumper.
Ensure that it is correctly aligned. Remove drill shavings.
Rivet the rear diffuser basic carrier (8) from the inside outward in clockwise direction.
The rivets are included in the scope of supply.
Remove the protective foil from the rear diffuser basic carrier (8).

Courtesy of MERCEDES-BENZ USA

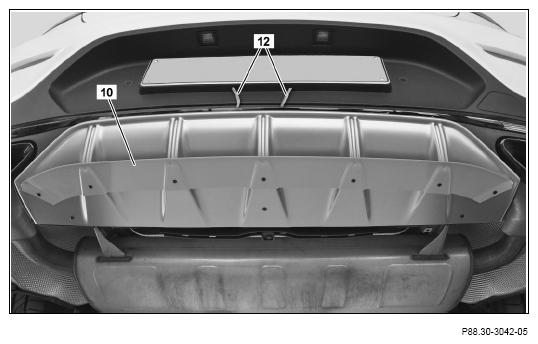

Position the rear diffuser trim (10) on the rear diffuser basic carrier (8) and align.
There must not be any gap between the rear diffuser trim (10) and the rear apron. The bonding area must make full contact.
Remove protective foils (12) of adhesive strips from the rear diffuser basic carrier (8) in increments of 5 cm from the center outward and press the rear diffuser trim (10) onto the exposed bonding surface on the rear diffuser basic carrier (8) in between.

Courtesy of MERCEDES-BENZ USA

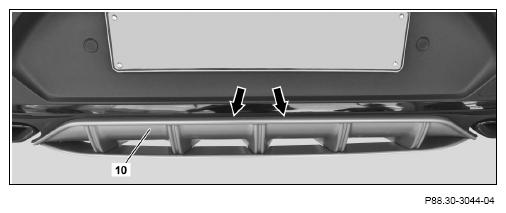

Use the MR1 load roller from 3M™ to roll on the rear diffuser trim (10) in the bonding area from the inside outward (arrows) with a press-on force of 50 N.
Rolling activates the adhesive in the tape, allowing the full adhesive power to take effect.

Remove the protective foil from the rear diffuser trim (10).

Courtesy of MERCEDES-BENZ USA

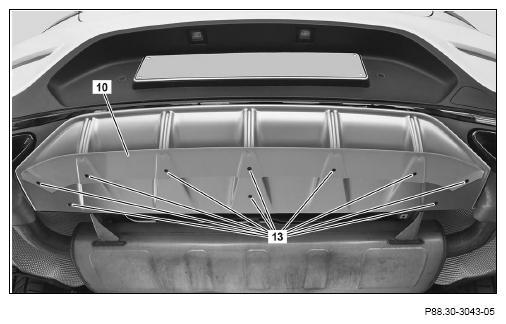

Drill the holes (13) indicated in the center at the top of the rear diffuser trim (10) to the outside with a diameter-4.5 mm through the bumper.
Ensure that it is correctly aligned. Remove drill shavings.
Rivet the rear diffuser trim (10) from the inside outward in clockwise direction.
The rivets are included in the scope of supply.

Courtesy of MERCEDES-BENZ USA
