Assembly And Covering Work When Painting The Front Fender - Ar98.00-P-0205LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
Model 293
MODIFICATION NOTES
| 06.07.2018 | Detailed description of the work procedure. |

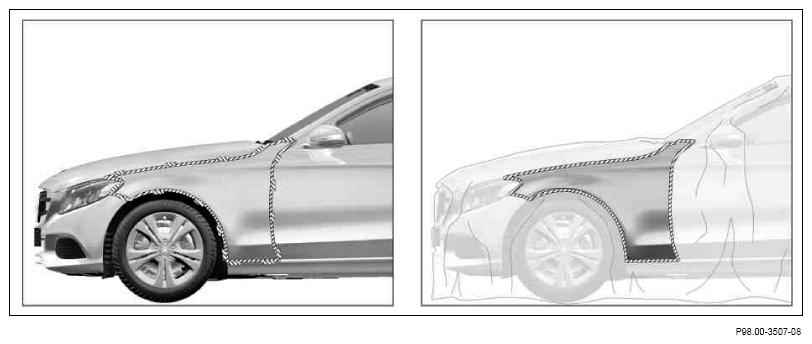

Shown on model 205 in paint stage 2/3 on left side of vehicle
| Notice | Cleaning plastic cover plates of lamps | AH82.10-P-1002-01A . | |
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A . | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK . | ||
| Mask off, cover in paint stage 2 or 3 | |||
| 1.1 | Loosen front bumper. | Paint stage 3 if the damaged area is not in the vicinity of front bumper or paint stage 2. | AR88.20-P-2000LW . |
| 1.2 | Remove front bumper. | Paint stage 3, if the damaged area is in the vicinity of the front bumper. | AR88.20-P-2000LW . |
| 2.1 | Release longitudinal member panel. | Paint stage 3, if the damaged area is not in the vicinity of the longitudinal member panel or paint stage 2. | |
| Model 205 | AR88.80-P-6000LW | ||
| Model 253 Model 293 |
AR88.80-P-6000LWG . | ||
| 2.2 | Remove longitudinal member panel. | Paint stage 3, if the damaged area is in the vicinity of the longitudinal member panel. | |
| Model 205 | AR88.80-P-6000LW | ||
| Model 253 Model 293 |
AR88.80-P-6000LWG . | ||
| 3 | Remove front lamp unit. | Model 205, 253 Model 293 Paint stage 3, if the damaged area is in the area of the front lamp unit. Model 205, 253 |
AR82.10-P-4730LW . |
| 4 | Loosen drip rail in area of A-pillar. | ||
| 5 | Mask off the fender all the way round. | ||
| 6 | Cover areas of vehicle that are not to be painted using film. |
