Remove/Install Right Blending Air Actuator Motor - AR83.10-P-2003LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 253

Model 293

Shown on model 205.### 1# with code 581 (Automatic air conditioning)

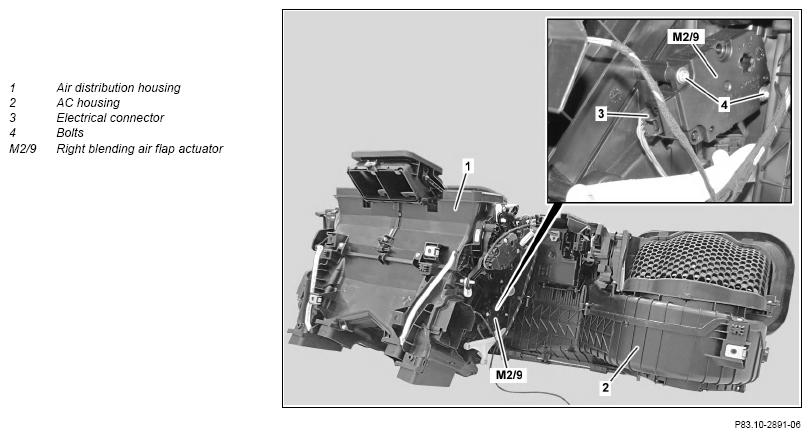

Fig 1: Right Blend Air Flap Actuator Motor Components Location - Model 253 (Shown On Model 205.### 1#)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove air conditioner housing.	Model 205.### 1#, 213.### 1#, 253.### 1#, 293.### 1# Model 205.### 1#, 213.### 1#, 253.### 1#	AR83.30-P-5200LW
		Model 293.### 1#	AR83.30-P-5200EQ
1.2	Remove trim under driver's side instrument panel.	Model 205.### 2#, 213.### 2#, 253.### 2#, 293.### 2# Model 205.### 2#, 253.### 2#	AR68.10-P-1500LW
		Model 213.### 2#	AR68.10-P-1501LWE
		Model 293.### 2#	AR68.10-P-1501EQ
2	Disconnect air distribution housing (1) from evaporator housing (2).	Model 205.### 1#, 213.### 1#, 253.### 1#, 293.### 1#	AR83.30-P-5201LW
3	Disconnect electrical connector (3).
4	Remove bolts (4) and remove right air mixing flap actuator motor (M2/9).
5	Install in the reverse order.
6	Using vehicle diagnosis system, teach-in right air mixing flap actuator motor (M2/9), then normalize it and delete fault memory.
		Model 205 Model 213 Model 253	AD00.00-P-2000-04B
		Model 293 Menu point: Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors	AD00.00-P-2000-06FR
