Disassembling, Assembling A/C Housing - AR83.30-P-5201LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293

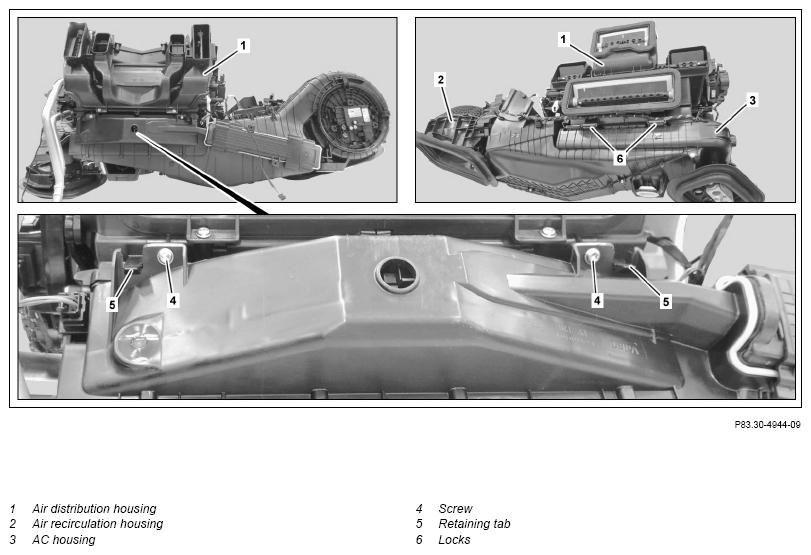

Shown on MODEL 205 with CODE 581 (automatic air conditioning)

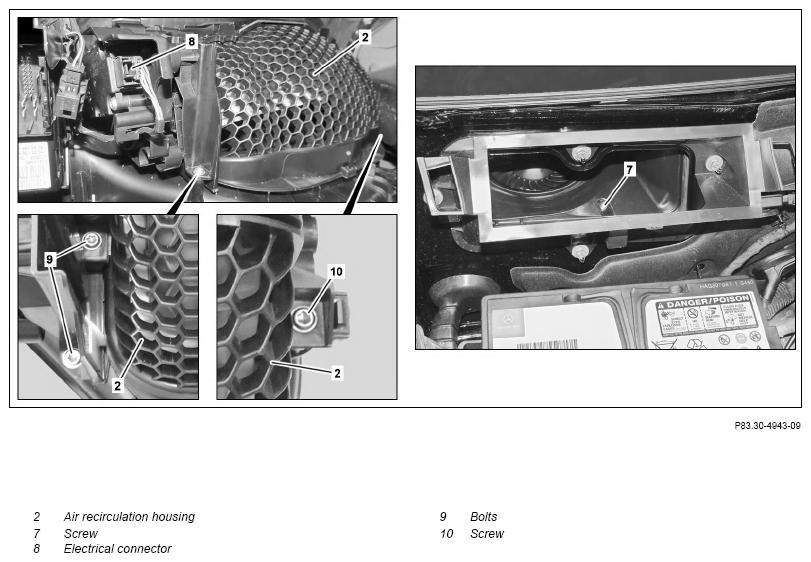

Shown on MODEL 205 with CODE 581 (automatic air conditioning)

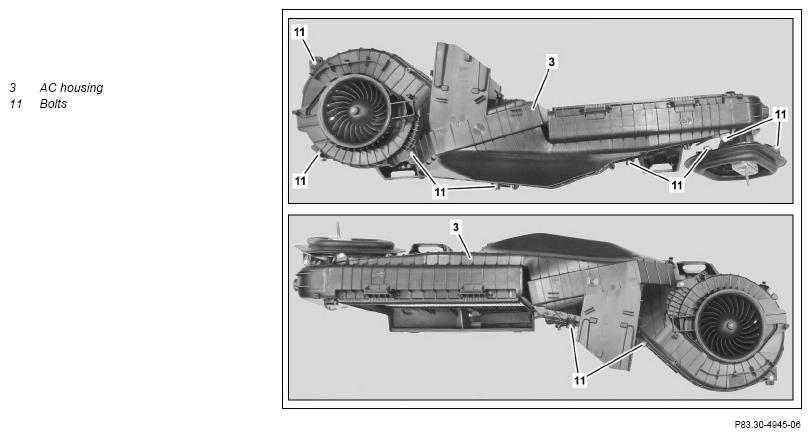

Shown on MODEL 205 with CODE 581 (automatic air conditioning)
| Remove | |||
| 1 | Remove air conditioner housing. | Model 205, 253 | AR83.30-P-5200LW |
| Model 293 | AR83.30-P-5200EQ | ||
| Disassemble/assemble | |||
| 2 | Remove heat exchanger. | Model 293 | AR83.25-P-1100EQ |
| Model 205, 213, 253 | AR83.25-P-1100LW | ||
| 3 | Unscrew bolts (4). | ||
| 4 | Release retaining tabs (5) and locks (6) and remove air distribution housing (1) from evaporator housing (3). | ||
| 5 | Remove bolt (7) from recirculated air housing (2). | ||
| 6 | Disconnect electrical connector (8) and place electrical wiring harness to one side. | ||
| 7 | Remove screws (9, 10) of air recirculation housing (2). | ||
| 8 | Remove recirculated air housing (2) from evaporator housing (3) and place to one side. | ||
| 9 | Remove screws (11). | ||
| 10 | Remove upper part of evaporator housing (3) and place to one side. | ||
| 11 | Assemble in the reverse order. | ||
| Install | |||
| 12 | Install air conditioner housing. | Model 205, 213, 253 | AR83.30-P-5200LW |
| Model 293 | AR83.30-P-5200EQ |
