Remove/Install Left Blend Air Flap Actuator Motor - AR83.10-P-2002LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293
Shown on MODEL 205.### 1#

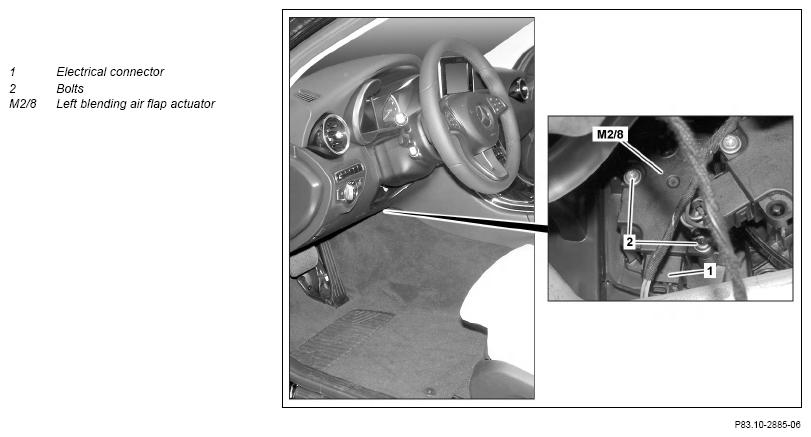

Fig 1: Left Blend Air Flap Actuator Motor Components Location - Model 253 (Shown On Model 205.### 1#)
| Remove/install | |||
| 1.1 | Remove trim under driver's side instrument panel. | Model 205.### 1#, 213.### 1#, 253.### 1#, 293.### 1# Model 205.### 1#, 253.### 1# |
AR68.10-P-1500LW |
| Model 213.### 1# | AR68.10-P-1501LWE | ||
| Model 293.### 1# | AR68.10-P-1501EQ | ||
| 1.2 | Remove air conditioner housing. | Model 205.### 2#, 213.### 2#, 253.### 2#, 293.### 2# Model 205.### 2#, 213.### 2#, 253.### 2# |
AR83.30-P-5200LW |
| Model 293.### 2# | AR83.30-P-5200EQ | ||
| 2 | Disconnect air distribution housing from evaporator housing. | Model 205.### 2#, 213.### 2#, 253.### 2#, 293.### 2# | AR83.30-P-5201LW |
| 3 | Disconnect electrical connector (1). | ||
| 4 | Remove bolts (2) and remove left air mixing flap actuator motor (M2/8). | ||
| 5 | Install in the reverse order. | ||
| 6 |
Using the vehicle diagnosis system, teach-in the left air mixing flap actuator motor (M2/8), then normalize it and delete the fault memory. | Model 205, 213, 253 | AD00.00-P-2000-04B |
| Model 293 Menu point: Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors |
AD00.00-P-2000-06FR |
