Flush Air Conditioning - AR83.30-P-1785LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 166.0 (except 166.063)

Model 190

Model 197

Model 205 (except 205.012/013/047/053/054/147/212/213/247/253)

Model 213 (except 213.016/050/053/054/153/155/216/253)

except code 1U6 (R744 refrigerant)

Model 217

except code 1U6 (R744 refrigerant)

Model 222 (except 222.004/057/104/157/163/173)

except code 1U6 (R744 refrigerant)

except code 582 (Air conditioning, rear)

Model 238

Model 253 (except 253.353/354/953/954/992/993)

Model 257

Model 290 (except 290.679)

Model 292

Model 453 (except 453.091/391/491)

Model 463 (except 463.242)

MODIFICATION NOTES

11.06.2021

Method revised.

Refrigerant R744 removed from document

Courtesy of MERCEDES-BENZ USA

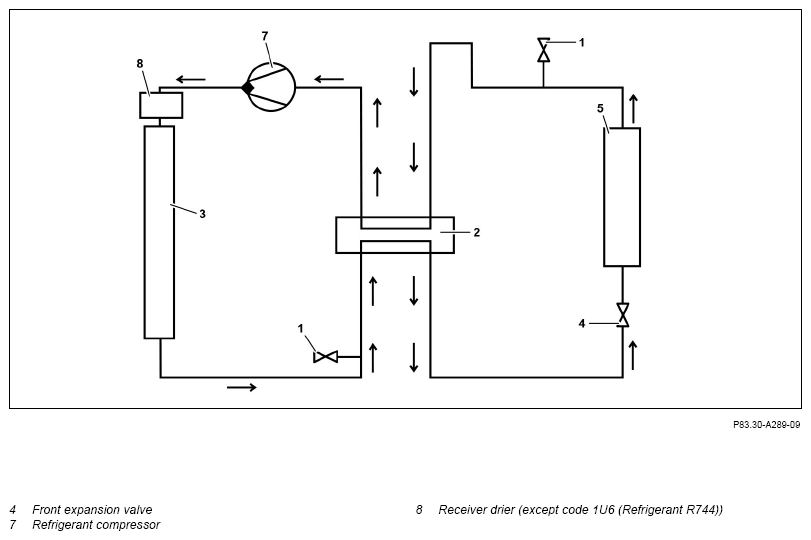

Schematic diagram of refrigerant circuit

Courtesy of MERCEDES-BENZ USA

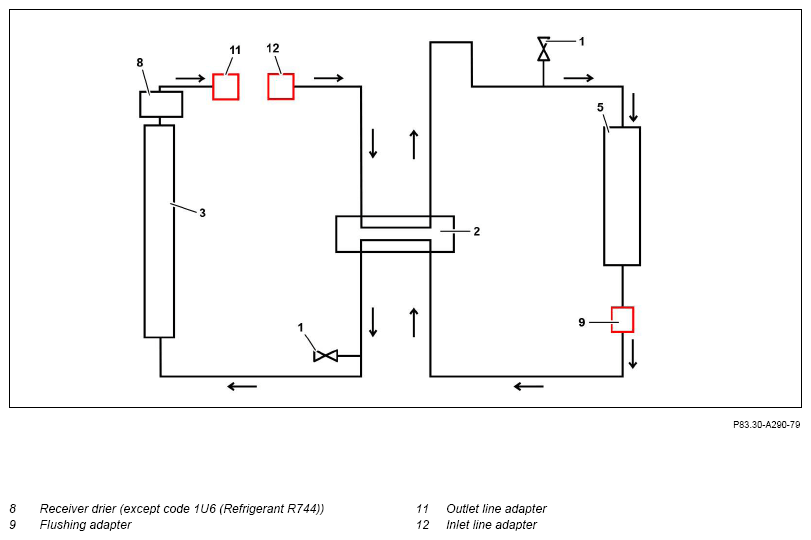

Flushing procedure

	Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234y refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
	Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0006-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
	Notes on handling refrigerant R134a		AH83.30-P-0003-01KOA
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Remove
1	Remove receiver drier (8).	Model 290 (except 290.679) with engine 177	AR83.30-P-6521FRX
		Model 166.0 (except 166.063), 292	AR83.30-P-6521GQ
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.30-P-6521LF
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 253 (except 253.353/354/953/954/992/993)	AR83.30-P-6521LW
		Model 238	AR83.30-P-6521LWO
		Model 257 with engine 256 Model 290 (except 290.679) with engine 256	AR83.30-P-6521MSA
		Model 257 with engine 264	AR83.30-P-6521MSB
		Model 257 with engine 654, 656	AR83.30-P-6521OIB
		Model 190 (except 190.381)	AR83.30-P-6521RG
		Model 190.381	AR83.30-P-6521MNJ
		Model 197	AR83.30-P-6521RQ
		Model 453 (except 453.091/391/491) with engine 281, 780 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281, 780 with code I77 (Air conditioning, manual)	AR83.30-P-6521SR
		Model 463 (except 463.242) with engine 176, 177 as of model year 2019	AR83.30-P-6521XGA
2	Remove refrigerant compressor (7).	Model 213.011/211 with engine 654.9 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) except code 1U6 (R744 refrigerant)	AR83.55-P-5311OLQ
		Model 213 (except 213.011/016/211/216) with engine 654.8 except code 1U6 (R744 refrigerant) Model 238, 257 with engine 654.8	AR83.55-P-5311OLN
		Model 463 (except 463.270/271) with engine 112, 113 (except 113.993) with code H02 (Air conditioning, manual)	AR83.55-P-5300GE
		Model 463.322/323 with engine 612.965 with code H02 (Air conditioning, manual)	AR83.55-P-5300GL
		Model 463.303/340/341 with engine 642.970 Model 463.306/336 with engine 642.886 Model 463.309/332/333 with engine 628.962 Model 463.346 with engine 642.886/Facelift 2012	AR83.55-P-5300GM
		Model 166.0 (except 166.063) with engine 157, 276, 278, 642, 651 Model 292 with engine 157, 276, 278, 642	AR83.55-P-5300GQ
		Model 463 with engine 157, 642 as of model year 2013 up to model year 2019	AR83.55-P-5300GW
		Model 463 (except 463.242) with engine 273/Facelift 2012	AR83.55-P-5300GZG
		Model 222 (except 222.004/057/104/157/163/173) with engine 642 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5300LF
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 276 Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 276 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 276 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) Model 253 (except 253.353/354/953/954/992/993) with engine 276	AR83.55-P-5310ELA
		Model 290 (except 290.679) with engine 177.9	AR83.55-P-5310FRX
		Model 463 (except 463.242) with engine 176 as of model year 2016 up to model year 2019	AR83.55-P-5310GW
		Model 217 with engine 157, 278 except code 1U6 (R744 refrigerant) except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 (except 222.004/057/104/157/163/173) with engine 157, 278 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) except code M005 (Vehicles with 4MATlC/all-wheel drive)	AR83.55-P-5310LC
		Model 217 with engine 279 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 279 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310LCA
		Model 217 with engine 157, 278 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 157, 278 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310LF
		Model 222 (except 222.004/057/104/157/163/173) with engine 277.9 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310LFH
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 274 except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 213 (except 213.050/053/054/153/155/253) with engine 274 except code 1U6 (R744 refrigerant) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 253 (except 253.353/354/953/954/992/993) with engine 274	AR83.55-P-5310LW
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 177 Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 177 except code 1U6 (R744 refrigerant)	AR83.55-P-5310LWA
		Model 213 (except 213.011/016/211/216) with engine 654.9 except code 1U6 (R744 refrigerant)	AR83.55-P-5310LWE
		Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 642 except code 1U6 (R744 refrigerant) Model 238 with engine 642 Model 253 (except 253.353/354/953/954/992/993) with engine 642	AR83.55-P-5310LWF
		Model 238 with engine 274	AR83.55-P-5310LWK
		Model 238 with engine 276	AR83.55-P-5310LWL
		Model 238, 257 with engine 654.9	AR83.55-P-5310LWM
		Model 253 (except 253.353/354/953/954/992/993) with engine 177	AR83.55-P-5310MNG
		Model 217 with engine 176 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 176 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MNL
		Model 217 with engine 177 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 177 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MNM
		Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 264 except code 1U6 (R744 refrigerant) Model 238 with engine 264 Model 257 with engine 264	AR83.55-P-5310MRH
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 264	AR83.55-P-5310MRI
		Model 222 (except 222.004/057/104/157/163/173) with engine 264 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MRJ
		Model 222 (except 222.004/057/104/157/163/173) with engine 256.9 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MRT
		Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 256.9 except code 1U6 (R744 refrigerant) Model 238 with engine 256.9 Model 257 with engine 256.9 Model 290 with engine 256.9	AR83.55-P-5310MSA
		Model 222 (except 222.004/057/104/157/163/173) with engine 656 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-53100IA
		Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 656 except code 1U6 (R744 refrigerant) Model 238 with engine 656 Model 257 with engine 656	AR83.55-P-53100IB
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 651 except code ME04 (Mild hybrid drive) Model 253 (except 253.353/354/953/954/992/993) with engine 651	AR83.55-P-53100LD
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 654	AR83.55-P-53100LI
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 626	AR83.55-P-53100LP
		Model 190 (except 190.381)	AR83.55-P-5310RG
		Model 190.381 with engine 178.9	AR83.55-P-5310MNJ
		Model 453 (except 453.091/391/491) with engine 281 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281 with code I77 (Air conditioning, manual)	AR83.55-P-5310SR
		Model 463 (except 463.242) with engine 176 as of model year 2019	AR83.55-P-5310XGA
		Model 463 (except 463.242) with engine 177 as of model year 2019	AR83.55-P-5310XGC
3	Remove front expansion valve (4).	Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 253 (except 253.353/354/953/954/992/993)	AR83.30-P-5520LW
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.30-P-5520LF
		Model 453 (except 453.091/391/491) with engine 281 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281 with code I77 (Air conditioning, manual)	AR83.30-P-5520SR
		Model 257, 290 (except 290.679)	AR83.30-P-5520MSA
		Model 190, 197	AR83.30-P-5520RQ
		Model 238	AR83.30-P-5520LW0
		Model 463.204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013 with code H02 (Air conditioning, manual)	AR83.30-P-5520GA
		Model 463.202/236/237/346 up to model year 2013 Model 463.222/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341 up to model year 2013	AR83.30-P-5520GM
		Model 463 (except 463.242) as of model year 2013 up to model year 2019	AR83.30-P-5520GW
		Model 463 (except 463.242) as of model year 2019	AR83.30-P-5520XGA
		Model 166.0 (except 166.063) Model 292	AR83.30-P-5520GQ
	Install
4	Install flushing adapter (9) in place of removed front expansion valve (4).	Model 453 (except 453.091/391/491) Screw/nut, adapter to retaining plate	*BA83.30-P-1023-01G
		Model 166.0 (except 166.063) Model 292Screw/nut, adapter to retaining plate	*BA83.30-P-1013-01J
		Model 190, 197Screw/nut, adapter to retaining plate	*BA83.30-P-1017-01M
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 253 (except 253.353/354/953/954/992/993) Screw/nut, adapter to retaining plate	*BA83.30-P-1017-01Q
		Model 290 (except 290.679) Screw/nut, adapter to retaining plate	*BA83.30-P-1012-01S
		Model 463 (except 463.242) as of model year 2019 Model 463 (except 463.242) up to model year 2019Screw/nut, adapter to retaining plate	*BA83.30-P-1025-01C
		Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Screw/nut adapter to retaining plate	*BA83.30-P-1023-01R
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) Screw/nut, adapter to retaining plate	*BA83.30-P-1022-01P
		Model 190, 197, 238, 257, 290 (except 290.679), 292 Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) Model 253 (except 253.353/354/953/954/992/993) Model 453 (except 453.091/391/491) Adapter	Fig 5
		Model 453 (except 453.091/391/491) Adapter kit	Fig 4
		Model 166.0 (except 166.063) Model 463 (except 463.242) Adapter kit If the screw threads do not grip, ↓ pull the threaded plate out using extraction hooks, hold and screw in the screws alternately.	Fig 3
		Extraction hook	Fig 1
5	Fit and tighten refrigerant lines on flushing adapter (9).	Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 238 Model 257Screw/nut, refrigerant line to adapter	*BA83.30-P-1024-01R
		Model 453 (except 453.091/391/491) Screw/nut, refrigerant line to adapter	*BA83.30-P-1024-01G
		Model 166.0 (except 166.063) Model 292Screw/nut, refrigerant line to adapter	*BA83.30-P-1011-01J
		Model 190, 197Screw/nut, refrigerant line to adapter	*BA83.30-P-1015-01M
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 253 (except 253.353/354/953/954/992/993) Screw/nut, refrigerant line to adapter	*BA83.30-P-1018-01Q
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) Screw/nut, refrigerant line to adapter	*BA83.30-P-1023-01P
		Model 290 (except 290.679) Screw/nut, refrigerant line to adapter	*BA83.30-P-1013-01S
		Model 463 (except 463.242) as of model year 2019 Model 463 (except 463.242) up to model year 2019Screw/nut, refrigerant line to adapter	*BA83.30-P-1023-01C
6	Attach outlet line adapter (11) and inlet line adapter (12) to refrigerant lines of removed refrigerant compressor (7) according to line diameters.	Model 453 (except 453.091/391/491) Screw, refrigerant line to line adapter	*BA83.30-P-1025-01G
		Model 166.0 (except 166.063) Model 292Screw, refrigerant line to line adapter	*BA83.30-P-1012-01J
		Model 190, 197Screw, refrigerant line to line adapter	*BA83.30-P-1016-01M
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 253 (except 253.353/354/953/954/992/993) Screw, refrigerant line to line adapter	*BA83.30-P-1016-01Q
		Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 238, 257Screw, refrigerant line to line adapter	*BA83.30-P-1025-01R
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) Screw, refrigerant line to line adapter	*BA83.30-P-1021-01P
		Model 290 (except 290.679) Screw, refrigerant line to line adapter	*BA83.30-P-1011-01S
		Model 463 (except 463.242) as of model year 2019 Model 463 (except 463.242) up to model year 2019Screw, refrigerant line to line adapter	*BA83.30-P-1024-01C
		Model 453 (except 453.091/391/491) Adapter kit	Fig 4
		Model 166.0 (except 166.063) Model 463 (except 463.242) Adapter kit	Fig 3
		Model 190, 197, 238, 257, 290 (except 290.679), 292 Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) Model 253 (except 253.353/354/953/954/992/993) Adapter kit	Fig 2
7	Reinstall all component parts of receiver drier (8) except filter package.	Model 463 (except 463.242) with engine 176, 177 as of model year 2019	AR83.30-P-6521XGA
		Model 453 (except 453.091/391/491) with engine 281, 780 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281, 780 with code I77 (Air conditioning, manual)	AR83.30-P-6521SR
		Model 197	AR83.30-P-6521RQ
		Model 190 (except 190.381)	AR83.30-P-6521RG
		Model 190.381	AR83.30-P-6521MNJ
		Model 257 with engine 654, 656	AR83.30-P-6521OIB
		Model 257 with engine 264	AR83.30-P-6521MSB
		Model 257, 290 with engine 256	AR83.30-P-6521MSA
		Model 238	AR83.30-P-6521LWO
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.011/016/050/053/054/153/155/211/216/253) except code 1U6 (R744 refrigerant) Model 253 (except 253.353/354/953/954/992/993)	AR83.30-P-6521LW
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.30-P-6521LF
		Model 166.0 (except 166.063) Model 292	AR83.30-P-6521GQ
		Model 290 (except 290.679) with engine 177.9	AR83.30-P-6521FRX
8	Connect air conditioning service unit with flushing tank and service hoses to outlet line adapter (11) and to inlet line adapter (12).
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit	In principle, any air conditioning service unit can be used, regardless of the brand or design; it only has to have a flushing function. The flushing direction (arrows) is the opposite direction to the flow direction of the refrigerant circuit. Connect inlet service hose to inlet line adapter (12) and outlet service hose to outlet line adapter (11).	WS83.00-P-0034B
	Flushing
9	Start flushing procedure at air conditioning service unit and follow instructions.
	Remove
10	Disconnect air conditioning service unit.
11	Detach refrigerant lines from flushing adapter (9).
12	Remove flushing adapter (9) and seal openings of refrigerant lines with suitable stop plugs.	Record plug	Fig 6
	Install
13	Install new front expansion valve (4).	Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 253 (except 253.353/354/953/954/992/993)	AR83.30-P-5520LW
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.30-P-5520LF
		Model 453 (except 453.091/391/491) with engine 281 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281 with code I77 (Air conditioning, manual)	AR83.30-P-5520SR
		Model 257, 290 (except 290.679)	AR83.30-P-5520MSA
		Model 190, 197	AR83.30-P-5520RQ
		Model 238	AR83.30-P-5520LWO
		Model 463.204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013 with code H02 (Air conditioning, manual)	AR83.30-P-5520GA
		Model 463.202/236/237/346 up to model year 2013 Model 463.222/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341 up to model year 2013	AR83.30-P-5520GM
		Model 463 (except 463.242) as of model year 2013 up to model year 2019	AR83.30-P-5520GW
		Model 463 (except 463.242) as of model year 2019	AR83.30-P-5520XGA
		Model 166.0 (except 166.063) Model 292	AR83.30-P-5520GQ
	Remove
14	Detach outlet line adapter (11) and inlet line adapter (12) from refrigerant lines of removed refrigerant compressor (7) and seal openings of refrigerant lines using suitable stop plugs.	Record plug	Fig 6
15	Remove all installed component parts of receiver drier (8) again.	Model 166.0, 190, 197, 205, 238, 253, 257, 290, 292, 453, 463 Model 213, 217, 222 except code 1U6 (Refrigerant R744)
		Model 290 (except 290.679) with engine 177.9	AR83.30-P-6521FRX
		Model 166.0 (except 166.063) Model 292	AR83.30-P-6521GQ
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.30-P-6521LF
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 253 (except 253.353/354/953/954/992/993)	AR83.30-P-6521LW
		Model 238	AR83.30-P-6521LWO
		Model 257, 290 (except 290.679) with engine 256	AR83.30-P-6521MSA
		Model 257 with engine 264	AR83.30-P-6521MSB
		Model 257 with engine 654, 656	AR83.30-P-6521OIB
		Model 190 (except 190.381)	AR83.30-P-6521RG
		Model 190.381	AR83.30-P-6521MNJ
		Model 197	AR83.30-P-6521RQ
		Model 453 (except 453.091/391/491) with engine 281, 780 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281, 780 with code I77 (Air conditioning, manual)	AR83.30-P-6521SR
		Model 463 (except 463.242) with engine 176, 177 as of model year 2019	AR83.30-P-6521XGA
	Install
16	Install new refrigerant compressor (7).	Model 213.011/211 with engine 654.9 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) except code 1U6 (R744 refrigerant)	AR83.55-P-53110LQ
		Model 213 (except 213.011/016/211/216) with engine 654.8 except code 1U6 (R744 refrigerant) Model 238, 257 with engine 654.8	AR83.55-P-53110LN
		Model 463 (except 463.270/271) with engine 112, 113 (except 113.993) with code H02 (Air conditioning, manual)	AR83.55-P-5300GE
		Model 463.322/323 with engine 612.965 with code H02 (Air conditioning, manual)	AR83.55-P-5300GL
		Model 463.303/340/341 with engine 642.970 Model 463.306/336 with engine 642.886 Model 463.309/332/333 with engine 628.962 Model 463.346 with engine 642.886/Facelift 2012	AR83.55-P-5300GM
		Model 166.0 (except 166.063) with engine 157, 276, 278, 642, 651 Model 292 with engine 157, 276, 278, 642	AR83.55-P-5300GQ
		Model 463 with engine 157, 642 as of model year 2013 up to model year 2019	AR83.55-P-5300GW
		Model 463 (except 463.242) with engine 273/Facelift 2012	AR83.55-P-5300GZG
		Model 222 (except 222.004/057/104/157/163/173) with engine 642 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5300LF
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 276 Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 276 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 276 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) Model 253 (except 253.353/354/953/954/992/993) with engine 276	AR83.55-P-5310ELA
		Model 290 (except 290.679) with engine 177.9	AR83.55-P-5310FRX
		Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 256.9 except code 1U6 (R744 refrigerant) Model 238 with engine 256.9 Model 257 with engine 256.9 Model 290 with engine 256.9	AR83.55-P-5310MSA
		Model 463 (except 463.242) with engine 176 as of model year 2016 up to model year 2019	AR83.55-P-5310GW
		Model 217 with engine 157, 278 except code 1U6 (R744 refrigerant) except code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 (except 222.004/057/104/157/163/173) with engine 157, 278 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR83.55-P-5310LC
		Model 217 with engine 279 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 279 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310LCA
		Model 217 with engine 157, 278 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 157, 278 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310LF
		Model 222 (except 222.004/057/104/157/163/173) with engine 277.9 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310LFH
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 274 except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 213 (except 213.050/053/054/153/155/253) with engine 274 except code 1U6 (R744 refrigerant) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 253 (except 253.353/354/953/954/992/993) with engine 274	AR83.55-P-5310LW
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 177 Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 177 except code 1U6 (R744 refrigerant)	AR83.55-P-5310LWA
		Model 213 (except 213.011/016/211/216) with engine 654.9 except code 1U6 (R744 refrigerant)	AR83.55-P-5310LWE
		Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 642 except code 1U6 (R744 refrigerant) Model 238 with engine 642 Model 253 (except 253.353/354/953/954/992/993) with engine 642	AR83.55-P-5310LWF
		Model 238 with engine 274	AR83.55-P-5310LWK
		Model 238 with engine 276	AR83.55-P-5310LWL
		Model 238, 257 with engine 654.9	AR83.55-P-5310LWM
		Model 253 (except 253.353/354/953/954/992/993) with engine 177	AR83.55-P-5310MNG
		Model 217 with engine 176 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 176 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MNL
		Model 217 with engine 177 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) with engine 177 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MNM
		Model 213 (except 213.016/050/053/054/153/155/216/253) with engine 264 except code 1U6 (R744 refrigerant) Model 238, 257 with engine 264	AR83.55-P-5310MRH
		Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) with engine 264	AR83.55-P-5310MRI
		Model 222 (except 222.004/057/104/157/163/173) with engine 264 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MRJ
		Model 222 (except 222.004/057/104/157/163/173) with engine 256.9 except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.55-P-5310MRT
		Model 190 (except 190.381)	AR83.55-P-5310RG
		Model 190.381 with engine 178.9	AR83.55-P-5310MNJ
17	Install receiver drier (8) with new filter pack.	Model 290 (except 290.679) with engine 177	AR83.30-P-6521FRX
		Model 166.0 (except 166.063), 292	AR83.30-P-6521GQ
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.30-P-6521LF
		Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 253 (except 253.353/354/953/954/992/993)	AR83.30-P-6521LW
		Model 238	AR83.30-P-6521LWO
		Model 257 with engine 256 Model 290 (except 290.679) with engine 256	AR83.30-P-6521MSA
		Model 257 with engine 264	AR83.30-P-6521MSB
		Model 257 with engine 654, 656	AR83.30-P-6521OIB
		Model 190 (except 190.381)	AR83.30-P-6521RG
		Model 190.381	AR83.30-P-6521MNJ
		Model 197	AR83.30-P-6521RQ
		Model 453 (except 453.091/391/491) with engine 281, 780 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281, 780 with code I77 (Air conditioning, manual)	AR83.30-P-6521R
		Model 463 (except 463.242) with engine 176, 177 as of model year 2019	AR83.30-P-6521XGA
18	Fill air conditioning system and inspect for leak tightness and proper operation.	Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) Model 213 (except 213.016/050/053/054/153/155/216/253) except code 1U6 (R744 refrigerant) Model 253 (except 253.353/354/953/954/992/993)	AR83.30-P-1760LW
		Model 238	AR83.30-P-1760LW0
		Model 166.0 (except 166.063) Model 292	AR83.30-P-1760CW
		Model 257 Model 290 (except 290.679)	AR83.30-P-1760FR
		Model 453 (except 453.091/391/491) with engine 281 with code I01 (Air conditioning Plus) Model 453 (except 453.091/391/491) with engine 281 with code I77 (Air conditioning, manual)	AR83.30-P-1760SR
		Model 217 except code 1U6 (R744 refrigerant) Model 222 (except 222.004/057/104/157/163/173) except code 1U6 (R744 refrigerant) except code 582 (Air conditioning, rear)	AR83.30-P-1760LF
		Model 463 (except 463.242) up to model year 2013 with code H02 (Air conditioning, manual)	AR83.30-P-1760A
		Model 463 (except 463.242/270/271) as of model year 2013 up to model year 2019	AR83.30-P-1760GW
		Model 463 (except 463.242) as of model year 2019	AR83.30-P-1760XG
		Model 190, 197	AR83.30-P-1760RQ

AIR CONDITIONING

Number	Designation		Model 166	Model 292
BA83.30-P-1011-01J	Screw/nut, refrigerant line to adapter	Nm	8	8

AIR CONDITIONING

Number	Designation		Model 290
BA83.30-P-1011-01S	Screw, refrigerant line to line adapter	Nm	20

AIR CONDITIONING

Number	Designation		Model 166	Model 292
BA83.30-P-1012-01J	Screw, refrigerant line to line adapter	Nm	20	20

AIR CONDITIONING

Number	Designation		Model 290
BA83.30-P-1012-01S	Screw/nut, adapter to retaining plate	Nm	7

AIR CONDITIONING

Number	Designation		Model 166	Model 292
BA83.30-P-1013-01J	Screw/nut, adapter to retaining plate	Nm	5	5

AIR CONDITIONING

Number	Designation		Model 290
BA83.30-P-1013-01S	Screw/nut, refrigerant line to adapter	Nm	12

AIR CONDITIONING

Number	Designation		Model 190	Model 197
BA83.30-P-1015-01M	Screw/nut, refrigerant line to adapter	Nm	8	8

AIR CONDITIONING

Number	Designation		Model 190	Model 197
BA83.30-P-1016-01M	Screw, refrigerant line to line adapter	Nm	20	20

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1016-01Q	Screw, refrigerant line to line adapter	Nm	20	20

AIR CONDITIONING

Number	Designation		Model 190	Model 197
BA83.30-P-1017-01M	Screw/nut, adapter to retaining plate	Nm	8	8

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1017-01Q	Screw/nut, adapter to retaining plate	Nm	7	7

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1018-01Q	Screw/nut, refrigerant line to adapter	Nm	12	12

AIR CONDITIONING

Number	Designation		Model 217 except code 1U6 (R744 refrigerant)	Model 222 except code 1U6 (R744 refrigerant)
BA83.30-P-1021-01P	Screw, refrigerant line to line adapter	Nm	20	20

AIR CONDITIONING

Number	Designation		Model 217 except code 1U6 (R744 refrigerant)	Model 222 except code 1U6 (R744 refrigerant)
BA83.30-P-1022-01P	Screw/nut, adapter to retaining plate	Nm	6	6

AIR CONDITIONING

Number	Designation		Model 463 up to model year 2019	Model 463 as of model year 2019
BA83.30-P-1023-01C	Screw/nut, refrigerant line to adapter	Nm	8	8

AIR CONDITIONING

Number	Designation		Model 453
BA83.30-P-1023-01G	Screw/nut, adapter to retaining plate	Nm	8

AIR CONDITIONING

Number	Designation		Model 217 except code 1U6 (R744 refrigerant)	Model 222 except code 1U6 (R744 refrigerant)
BA83.30-P-1023-01P	Screw/nut, refrigerant line to adapter	Nm	12	12

AIR CONDITIONING

Number	Designation		Model 213 except code 1U6 (R744 refrigerant)
BA83.30-P-1023-01R	Screw/nut, adapter to retaining plate	Nm	7

AIR CONDITIONING

Number	Designation		Model 463 up to model year 2019	Model 463 as of model year 2019
BA83.30-P-1024-01C	Screw, refrigerant line to line adapter	Nm	20	20

AIR CONDITIONING

Number	Designation		Model 453
BA83.30-P-1024-01G	Screw/nut, refrigerant line to adapter	Nm	8

AIR CONDITIONING

Number	Designation		Model 213 except code 1U6 (R744 refrigerant)	Model 238
BA83.30-P-1024-01R	Screw/nut, refrigerant line to adapter	Nm	12	12

AIR CONDITIONING

Number	Designation		Model 257
BA83.30-P-1024-01R	Screw/nut, refrigerant line to adapter	Nm	12

AIR CONDITIONING

Number	Designation		Model 463 up to model year 2019	Model 463 as of model year 2019
BA83.30-P-1025-01C	Screw/nut, adapter to retaining plate	Nm	8	8

AIR CONDITIONING

Number	Designation		Model 453
BA83.30-P-1025-01G	Screw, refrigerant line to line adapter	Nm	20

AIR CONDITIONING

Number	Designation		Model 213 except code 1U6 (R744 refrigerant)	Model 238
BA83.30-P-1025-01R	Screw, refrigerant line to line adapter	Nm	20	20

AIR CONDITIONING

Number	Designation		Model 257
BA83.30-P-1025-01R	Screw, refrigerant line to line adapter	Nm	20

Fig 1: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter Kit (222 589 01 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter Kit (221 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter Kit (453 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adapter (213 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
