Remove/Install Expansion Valve - AR83.30-P-5520LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

except code 1U6 (R744 refrigerant)

Model 253

Model 293

Shown on model 205

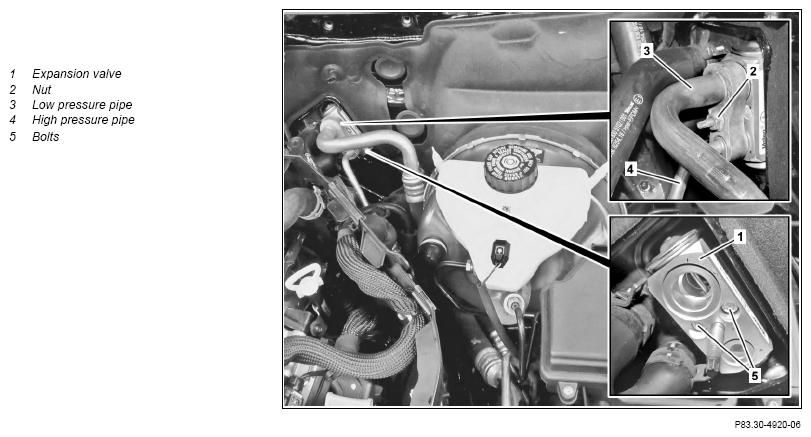

Fig 1: Expansion Valve Components Location - Model 253 (Shown On Model 205)
G14547195DANGERWARNINGREMOVINGINSTALLINGTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTSPECIAL TOOLINSTALLATION IMPORTANTSPECIAL TOOLTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLCourtesy of MERCEDES-BENZ USA
DANGER Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234y refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
WARNING Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0006-01A
Notice  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01KOA
  Notes on handling refrigerant R134a   AH83.30-P-0003-01KOA
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
REMOVINGINSTALLING Remove/install
1 Discharge air conditioning system. Model 205
Model 213 except code 1U6 (R744 refrigerant)
Model 253		 AR83.30-P-1760LW
    Model 293 AR83.30-P-1760EQ
2 Remove windshield wiper system.   AR82.30-P-6400LW
3 Unbolt nut (2). TORQUE SPECIFICATION Model 205
Model 253Nut, refrigerant line to expansion valve		 *BA83.30-P-1003-01Q
    TORQUE SPECIFICATION Model 213 except code 1U6 (R744 refrigerant) Nut, refrigerant line to expansion valve *BA83.30-P-1003-01R
    TORQUE SPECIFICATION Model 293Nut, refrigerant line to expansion valve *BA83.30-P-1003-01V
4 Detach low-pressure line (3) and high-pressure line (4) from expansion valve (1) and seal openings. INSTALLATION IMPORTANT Install new sealing rings.
SPECIAL TOOL Record plug		 Fig 3
5 Unscrew screws (5), remove expansion valve (1) and seal openings. INSTALLATION IMPORTANT If the thread of screws/bolts (5) does not engage, remove threaded plate using SPECIAL TOOL extraction hook, hold in position and screw in screws/bolts (5) alternately.
    TORQUE SPECIFICATION Model 205
Model 253Bolt, expansion valve to retaining plate		 *BA83.30-P-1005-01Q
    TORQUE SPECIFICATION Model 213
except code 1U6 (R744 refrigerant) Bolt, expansion valve to retaining plate		 *BA83.30-P-1002-01R
    TORQUE SPECIFICATION Model 293Bolt, expansion valve to retaining plate *BA83.30-P-1004-01V
    SPECIAL TOOL Record plug Fig 3
    SPECIAL TOOL Extraction hook Fig 2
6 Install in the reverse order.
AIR CONDITIONING

Number Designation Model 213 except code 1U6 (R744 refrigerant)
BA83.30-P-1002-01R Bolt, expansion valve to retaining plate Nm 7
AIR CONDITIONING

Number Designation Model 205 Model 253
BA83.30-P-1003-01Q Nut, refrigerant line to expansion valve Nm 12 12
AIR CONDITIONING

Number Designation Model 213 except code 1U6 (R744 refrigerant)
BA83.30-P-1003-01R Nut, refrigerant line to expansion valve Nm 12
AIR CONDITIONING

Number Designation Model 293
BA83.30-P-1003-01V Nut, refrigerant line to expansion valve Nm 12
AIR CONDITIONING

Number Designation Model 293
BA83.30-P-1004-01V Bolt, expansion valve to retaining plate Nm 7
AIR CONDITIONING

Number Designation Model 205 Model 253
BA83.30-P-1005-01Q Bolt, expansion valve to retaining plate Nm 7 7
Fig 2: Identifying Extraction Hook (140 589 02 33 00)
G11128914Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
