Remove/Install Heat Exchanger - AR83.25-P-1100LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253

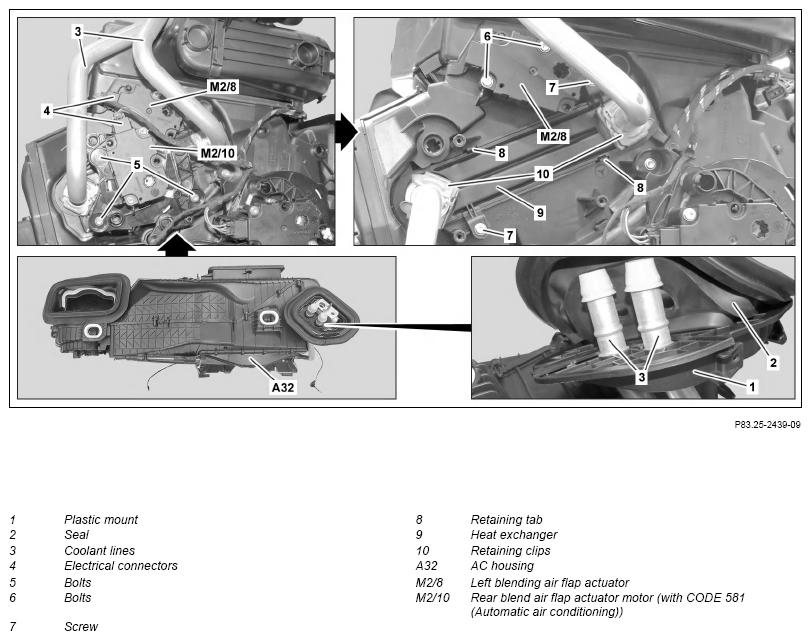

Shown with code 581 (Automatic air conditioning)
| Remove/install | |||
| 1 | Remove air conditioner housing (A32) | AR83.30-P-5200LW | |
| 2 | Detach plastic mount (1) and remove seal (2) from coolant lines (3) | ||
| 3 | Disconnect electrical connector (4) at left blend air flap actuator motor (M2/8) and place electrical wiring harness to one side | ||
| 4 | Disconnect electrical connector (4) at rear blend air flap actuator motor (M2/10) and place electrical wiring harness to one side | Model 205, 213, 253 with code 581 (Automatic air conditioning) | |
| 5 | Remove screws/bolts (5) and remove actuator unit with rear blend air flap actuator motor (M2/10) | Model 205, 213, 253 with code 581 (Automatic air conditioning) | |
| 6 | Remove screws/bolts (6) and remove left blend air flap actuator motor (M2/8) | ||
| 7 | Remove screw/bolts (7) | ||
| 8 | Detach retaining tabs (8) and remove heat exchanger (9) | ||
| 9 | Detach retaining clips (10) and remove coolant lines (3) from heat exchanger (9) | ||
| 10 | Install in the reverse order |
