Check Evaporator For Leaks - AR83.30-P-5550LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

except code 1U6 (R744 refrigerant)

Model 253

Model 293

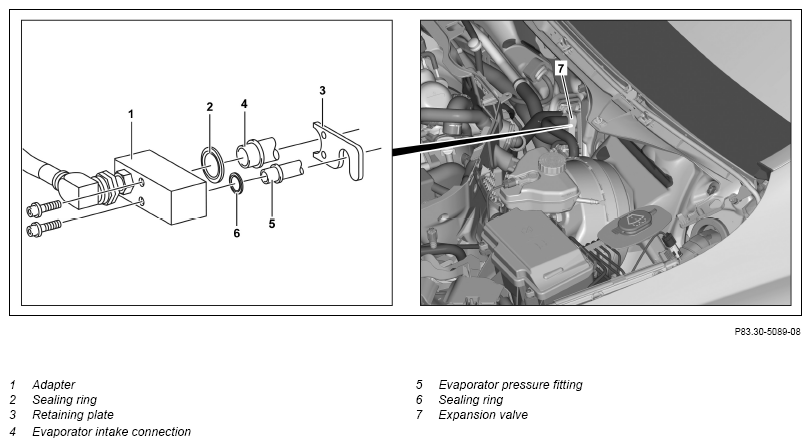

G14547199Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  when using a forming gas with incorrect mixing ratio. Risk of suffocation due to inhalation of forming gas. Risk of injury  due to bursting of high-pressure hoses. Wear safety glasses and protective gloves. No smoking or open flames. Work in well-ventilated rooms only. AS83.00-Z-0001-02A
Notice  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01KOA
REMOVING Remove
1 Remove expansion valve (7).   AR83.30-P-5520LW
INSPECT Check
2 Install adapter (1) with adapter hose in place of expansion valve (7) with new sealing rings (2, 6). IMPORTANT Use adapter hose from SPECIAL TOOL Adapter set (221 589 00 91 00). Use adapter (1) from SPECIAL TOOL Adapter set (222 589 00 91 00).
    TORQUE SPECIFICATION Model 205, 253Screw/bolt, adapter to retaining plate *BA83.30-P-1011-01Q
    TORQUE SPECIFICATION Model 213 except code 1U6 (R744 refrigerant) Screw/bolt, adapter to retaining plate *BA83.30-P-1009-01R
    TORQUE SPECIFICATION Model 293Screw/bolt, adapter to retaining plate *BA83.30-P-1013-01V
    SPECIAL TOOL Adapter kit Fig 2
    SPECIAL TOOL Adapter kit Fig 1
3 Connect leak tester to adapter hose.
REFER TO SPECIAL TOOLS 000 588 19 21 00 Leak tester   WS83.00-P-0035B
4 Fill evaporator with forming gas and check for leak tightness. IMPORTANT Pay attention to the leak tester operator's manual.
Do not fill evaporator with forming gas unless engine is cold.
IMPORTANT Temperature changes during the pressure test (e.g. because of change in weather or cooling down of the engine compartment) can cause pressure fluctuations. Consistent ambient conditions must therefore be strictly ensured.
    Pressure drop in refrigerant circuit filled with test gas
In the event of leakage.
↓
replace evaporator.		 *BE83.30-P-1001-04A
      AR83.30-P-5540LW
5 Disconnect leak tester unit from adapter hose.
6 Remove adapter (1) with adapter hose.
INSTALLING Install
7 Install expansion valve (7) with new sealing rings (2, 6).   AR83.30-P-5520LW
AIR CONDITIONING

Number Designation Model 118, 164, 166, 167, 169, 171, 177, 190, 197, 199, 204, 205, 206, 207, 209, 211, 212, 216, 218, 219, 221, 230, 238, 240, 243, 245, 247, 251, 253, 257, 290, 292, 293 Model 213, 217, 222 except code 1U6 (R744 refrigerant)
BE83.30-P-1001-04A Pressure drop in refrigerant circuit filled with test gas Test pressure bar 15
Test period h 4
Permissible fluctuation of ambient temperature °C ±2
Pressure drop bar 0
AIR CONDITIONING

Number Designation Model 213 except code 1U6 (R744 refrigerant)
BA83.30-P-1009-01R Screw/bolt, adapter to retaining plate Nm 7
AIR CONDITIONING

Number Designation Model 205 Model 253
BA83.30-P-1011-01Q Screw/bolt, adapter to retaining plate Nm 7 7
AIR CONDITIONING

Number Designation Model 293
BA83.30-P-1013-01V Screw/bolt, adapter to retaining plate Nm 7
Fig 1: Identifying Adapter Kit (222 589 00 91 00)
G12939670Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Adapter Kit (221 589 00 91 00)
G12824938Courtesy of MERCEDES-BENZ USA
