Remove/Install Evaporator - AR83.30-P-5540LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293
Shown on MODEL 205 with CODE 581 (automatic air conditioning)
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Remove/install | |||
| 1 | Disassemble air conditioner housing. | AR83.30-P-5201LW | |

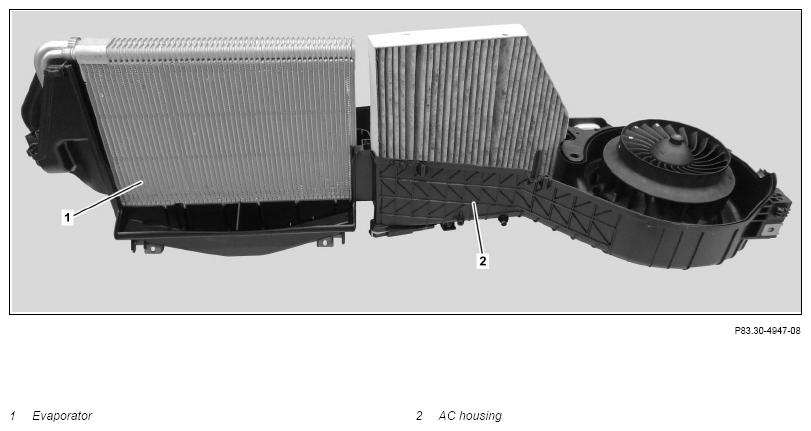

| 2 | Remove evaporator (1) from evaporator housing (2). | ||
| 3 | Install in the reverse order. |
