Retrofit Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.3/9

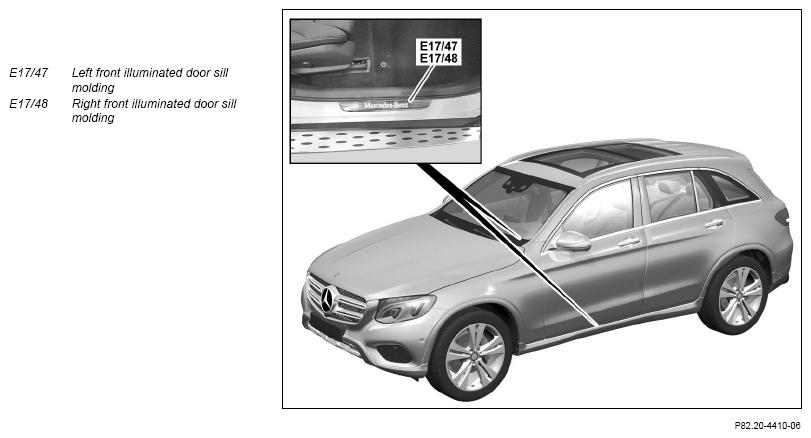

G14471822Courtesy of MERCEDES-BENZ USA
Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Detach driver-side fuse and relay module (K40/6)
2 Detach door seals from entrance area at left and right
3 Use suitable means to remove front right door sills and remove adhesive residue
Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks   AH00.00-P-0013-01AK
    IMPORTANTCommercially available devices/tools
Battery-operated drill
IMPORTANT Left and right door sill moldings are no longer required. Use commercially available surface conditioning disk with dia.100 mm.
    SPECIAL TOOL Long wedge Fig 1
4 Remove front floor covering on driver side
REFER TO TESTING & REPAIR     AR68.20-P-2050LW
5 Remove front floor covering on front passenger side
REFER TO TESTING & REPAIR     AR68.20-P-2070LW
6 Remove front footrest on passenger side
INSTALLING Install
7 Fit electrical wiring harness of illuminated door sill molding with Mercedes-Benz lettering to the front   AZ82.20-P-0005-01LWG
Notes on the use of paint scraping nuts on ground connections   AH00.19-P-1000-20A
    TORQUE SPECIFICATION Right front footwell ground point (CAN) *BA00.19-P-1019-01E
8 Install control unit for illuminated door sill moldings with Mercedes-Benz lettering   AZ82.20-P-0005-05LWG
    Self-adhesive felt strip 40X2 mm *BR00.45-Z-1074-01A
    Binder Duotec® Mushroom in mushroom velcro - with adhesive 32 *BR00.45-Z-1084-02A
9 Install front left illuminated door sill molding (E17/47) and front right illuminated door sill molding (E17/48)   AZ82.20-P-0005-10LWG
    Cleaner *BR00.45-Z-1025-04A
INSPECT Check
10 Carry out function check IMPORTANT Front left illuminated door sill molding (E17/47) or front right illuminated door sill molding (E17/48) is switched on by opening corresponding front door. Automatic shutoff takes place after approx. 5 min.
INSTALLING Install
11 Install remaining parts
  Update Vehicle Documentation (VeDoc)
12 Attach "Illuminated door sill molding retrofitted as per AZ82.20-P-0005LWG note" under field organization texts on design group 68 and KG82
GROUND POINTS

Number Designation Model 253 (except 253.99) Model 253.99
BA00.19-P-1019-01E Right front footwell ground point (CAN) W15/8 Nm 10 10
Fig 1: Identifying Long Wedge (115 589 03 59 00)
G13657072Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1025-04A Cleaner A 005 989 19 71
BR00.45-Z-1074-01A Self-adhesive felt strip 40X2 mm A 001 983 23 10
BR00.45-Z-1084-02A Binder Duotec® Mushroom in mushroom velcro - with adhesive 32 Klettband Technik Schultz UG Schulstrasse 6
71111 Waldenbuch
Germany
Tel.: +49 (0) 7157 6754-83 or 82
Fax: +49 (0) 7157 6696815
info@klettband-technik.de
http://www.klettband-technik.de
PARTS ORDERING NOTE

Part no. Designation Quantity
KG98 (see EPC) Parts kit for illuminated door sill moldings with Mercedes-Benz lettering. 1
