Retrofit Front Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005-10LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3/9
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
Installation is shown on left side of vehicle as an example. Installation on right side of vehicle is performed analogously.

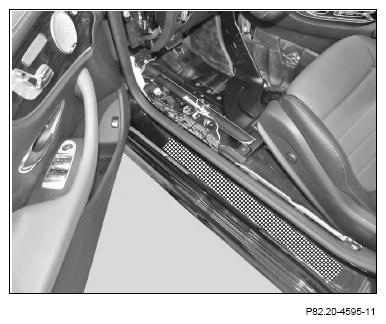

- Clean contact surface of door sill in hatched area with cleaner.

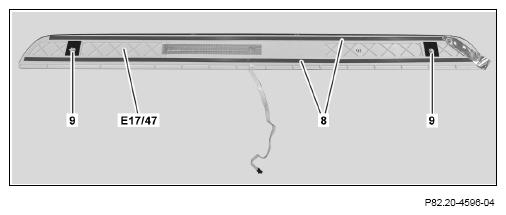

- Pull off carrier foils (8) from front left illuminated door sill molding (E17/47).
Note guides (9) during installation.
- Position illuminated door sill molding at front left (E17/47) onto longitudinal member and uniformly press on.

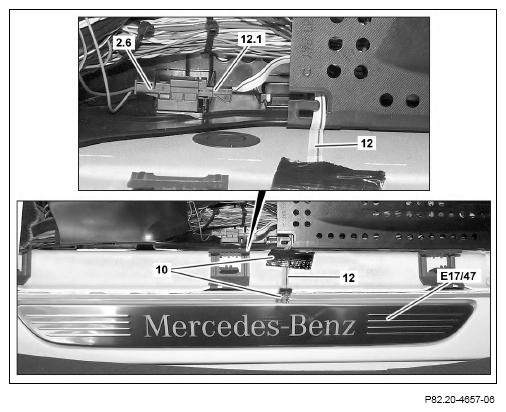

- Connect black 2-pin connector socket (12.1) of front left illuminated door sill molding (E17/47) to black 2-pin plug (2.6).
- Clip electrical connector into bracket on cable duct.
- Route ribbon cable (12) of front left illuminated door sill molding (E17/47) over body flange on longitudinal member and fix in place using fabric tape (10).
