Detach/Attach External Plate Carrier B08 Of Adapter Housing - AR27.50-P-0627MRD
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.007 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Transmission 725.037/047
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 | Remove planetary gear set 1 with multidisk clutch K81 and multidisk brake B08 | AR27.50-P-0625EWM | |

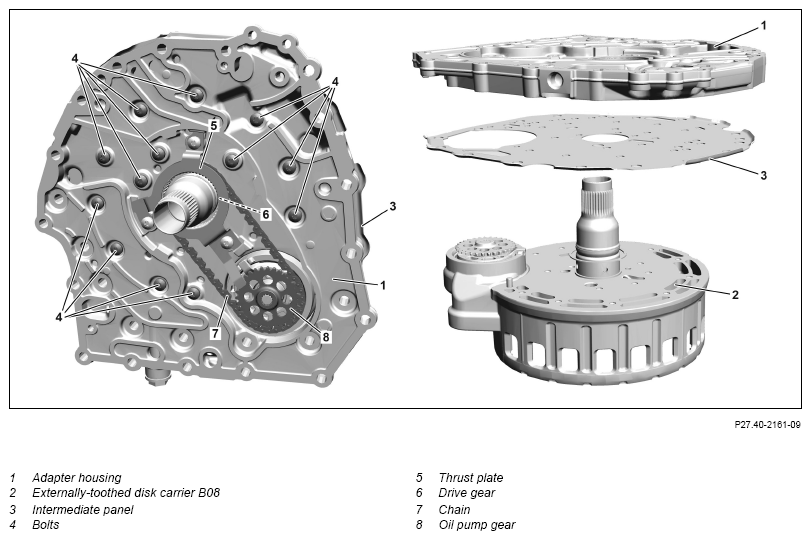

| 2 | Unscrew screws/bolts and remove thrust plate (5) | ||
| 3 | Remove drive wheel (6), chain (7) and oil pump gear (8) at the same time | ||
| 4 | Loosen bolts (4) | Do not unscrew screws/bolts (4) completely. Otherwise the outer plate carrier B08 (2) will fall down when it is pressed out; this will cause damage. |
|

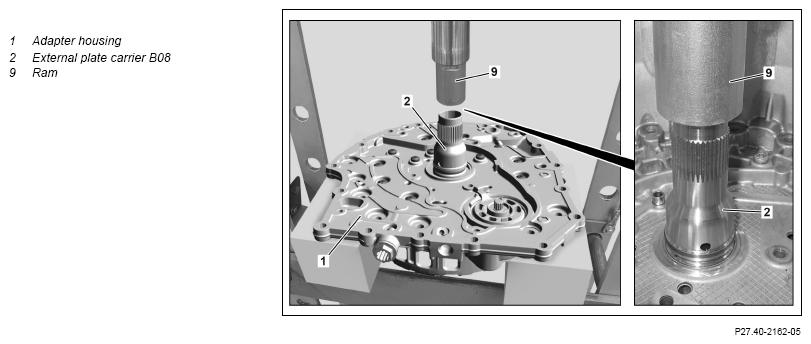

| 5 | Press external plate carrier B08 (2) out of adapter housing (1) | Make sure that the contact surface of the ram (9) is flush fitted. Otherwise damage will occur to the external plate carrier B08 (2). Only press out the outer plate carrier B08 (2) far enough to allow it to be removed. Otherwise damage will occur to the external plate carrier B08 (2) and screws/bolts (4). |
|
| 6 | Unscrew screws/bolts (4) and remove external plate carrier B08 (2) | ||
| 7 | Remove intermediate panel (3) | ||
| Install | |||
| 8 | Check intermediate panel (3) for damage and replace if necessary | ||
| 9 | Position intermediate panel (3) on external plate carrier B08 (2) | ||
| 10 | Position external plate carrier B08 (2) and intermediate panel (3) on adapter housing (1) | ||
| 11 | Press external plate carrier B08 (2) into adapter housing (1) | Make sure that the contact surface of the ram (9) is flush fitted. Otherwise damage will occur to the external plate carrier B08 (2). Workshop press |
|
| 12 | Measure and adjust clearance in multidisk brake B08 | When replacing external plate carrier B08 (2). | |
| AR27.51-P-7230-02EWM | |||
| Clearance in multidisk brake B08 | *BE27.51-P-1003-01E | ||
| Fig 2 | |||
| Fig 3 | |||
| Fig 4 | |||
| Fig 1 | |||
| 13 | Tighten screws/bolts (4) | *BA27.10-P-1003-04H | |
| 14 | Slide on drive wheel (6), chain (7) and oil pump gear (8) at the same time | Ensure that the chain (7) is seated correctly or drive wheel (6) and oil pump gear (8). Otherwise there could be assembly problems. |
|
| 15 | Position thrust plate (5) on adapter housing (1) and tighten screws/bolts | *BA27.10-P-1025-04H | |
| 16 | Install planetary gear set 1 with multidisk clutch K81 and multidisk brake B08 | AR27.50-P-0625EWM |
ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE
| Number | Designation | Transmission 725.0 | |||
|---|---|---|---|---|---|
| BE27.51-P-1003-01E | Clearance in multidisk brake B08 | Contact force for clearance adjustment | F1 | N | 600 |
| Number of internal plates | 3 | mm | 1, 6...1, 8 | ||
| 4 | mm | 1, 8...2, 0 | |||
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | ||
|---|---|---|---|---|
| BA27.10-P-1003-04H | Screw/bolt, external plate carrier to torque converter housing/adapter housing | M6 | Nm | 10 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1025-04H | Screw/bolt, thrust plate to adapter housing | Nm | 8 |
