Remove/Install Engine Covers - AP01.10-P-2405-01I
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 167, 205, 253
Engine 264 in model 463

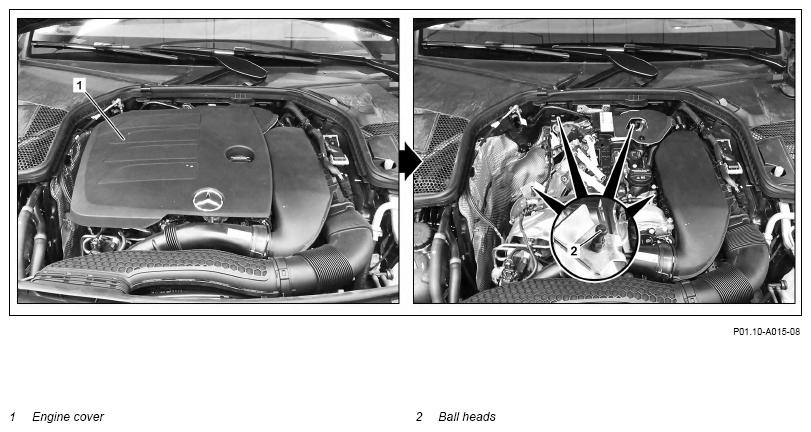

Shown on model 205.077

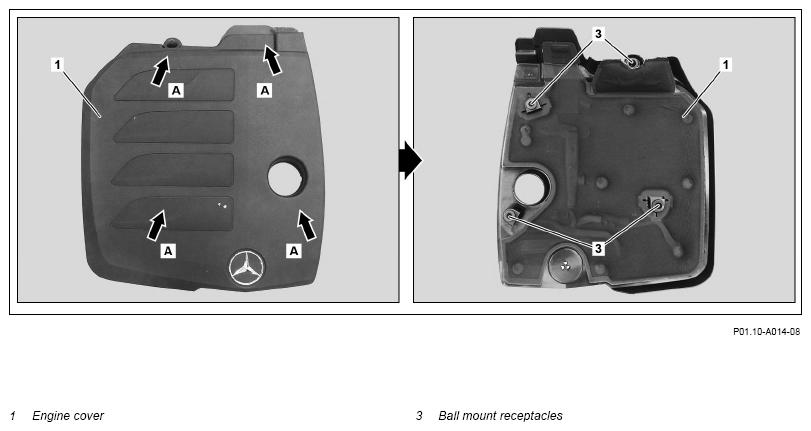

Shown on model 205.077
When removing and installing the Engine cover (1) always make sure that only the positions shown in the picture (arrows A) are used for pulling during removal or for pressing during installation. The ball heads (2) latch there into the ball mount receptacles (3). No force may be applied at any other points on the Engine cover.
The Engine cover can get damaged if these instructions are not observed.
