Remove/Install Engine With Transmission - AR01.10-P-2401MRB

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 274.9 in model 253

except code M005 (Vehicles with 4MATIC/all-wheel drive)

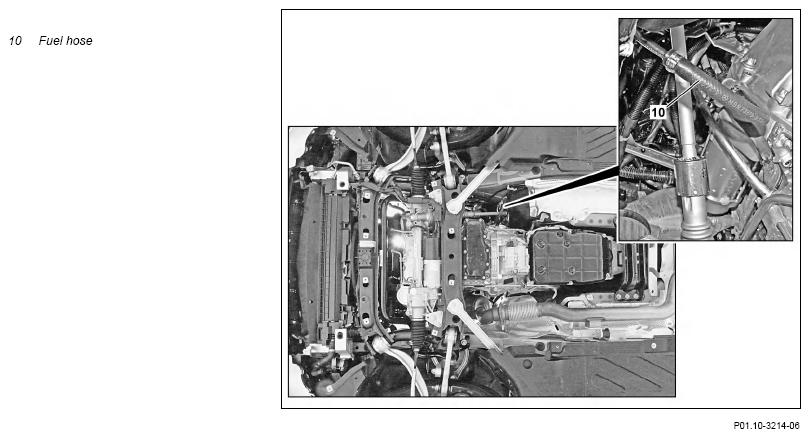

G14474274Courtesy of MERCEDES-BENZ USA

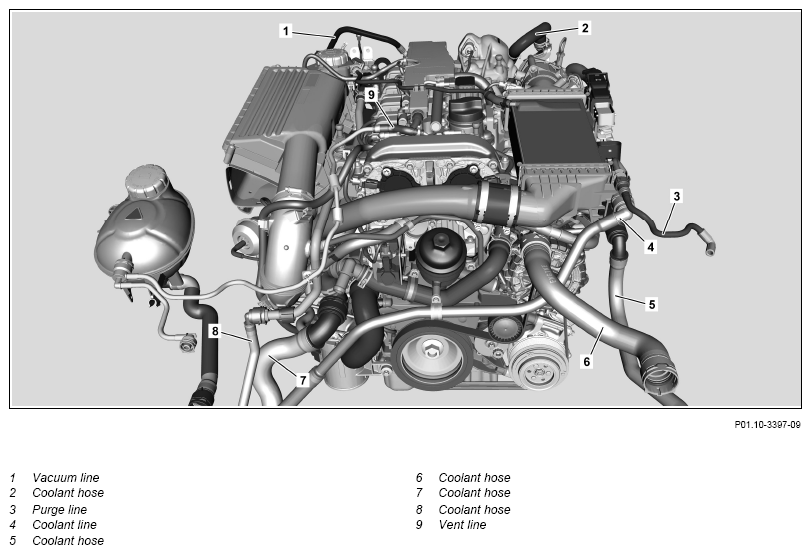

G14474275Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning
caused by swallowing engine oil
Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
Notice  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases   AH01.10-P-0001-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Secure vehicle against rolling
2 Shift transmission to neutral and release parking brake
3 Deactivate easy entry/exit feature Engine 274.9 in model 253
with code 275 (Memory Package (driver's seat, steering column and mirror))
except code M005 (Vehicles with 4MATIC/all-wheel drive)

4 Turn front wheels to straight-ahead position and fix steering wheel in place with holding device SPECIAL TOOL Retainer device Fig 3
5 Disconnect ground line from on-board electrical system battery   AR54.10-P-0003LW
6 Secure vehicle on vehicle lift   AR00.60-P-0100CW
7 Remove upper engine cover INSTALLATION IMPORTANT : Only install top engine cover after leak test.
8 Remove bottom engine compartment paneling INSTALLATION IMPORTANT Only install lower engine compartment paneling after leak test. AR61.20-P-1105LW
9 Relieve fuel pressure over diagnostic socket   AR07.03-P-1460-01MR
    TORQUE SPECIFICATION Dust cap at service connection *BA07.03-P-1003-01F
    SPECIAL TOOL Pressure hose Fig 5
10 Drain coolant at radiator   AR20.00-P-1142LW
11 Drain coolant from low-temperature circuit   AR09.41-P-6834LW
12 Remove drain screw from oil pan, drain engine oil and collect in suitable container
  Notes on engine oil and filter changes INSTALLATION NOTES
Use only approved engine oils. Engine damage will occur otherwise.
INSTALLATION IMPORTANT Replace sealing ring.
AH18.00-P-0104-01A
    TORQUE SPECIFICATION Drain screw to oil pan *BA01.45-P-1002-01T
    FLUID SPECIFICATION Engine oil *BF18.00-P-1001-01ZA
13 Remove drive shaft from transmission output flange   AR41.10-P-0050LWX
14 Remove rear engine mounts IMPORTANT The rear engine crossmember remains on vehicle. AR22.10-P-1160LWB
15 Remove center shifter console and shift rod on transmission Engine 274.9 in model 253 with transmission 716.7
except code M005 (Vehicles with 4MATIC/all-wheel drive)

      AR26.60-P-0600LW
16 Remove hydraulic line from clutch slave cylinder Engine 274.9 in model 253 with transmission 716.7
except code M005 (Vehicles with 4MATIC/all-wheel drive)

      AR25.20-P-0150LW
17 Remove steering coupling from steering shaft NOTES
Do not turn steering wheel with steering coupling removed.
Clock spring contact can otherwise be damaged.
AR46.10-P-8000LW
18 Remove fuel hose (10) from engine, collect escaping fuel with suitable container and seal openings with suitable stop plug SPECIAL TOOL Pliers for click clamps Fig 2
    SPECIAL TOOL Record plug Fig 4
19 Remove coolant line to low-temperature circuit cooler from oil cooler Engine 274.9 in model 253 with transmission 725.0
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR27.55-P-1000LWX
    Engine 274.9 in model 253 with transmission 724.2
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR27.55-P-1000RFH
20 Remove oil cooler from fan unit and secure with attached lines on engine against falling down Engine 274.9 in model 253 with transmission 725.0
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR27.55-P-1000LWX
    Engine 274.9 in model 253 with transmission 724.2
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR27.55-P-1000RFH
21 Remove catalytic converter   AR49.10-P-5500LW
22 Remove fan unit   AR20.40-P-5050RF
23 Mount protective plate on radiator
REFER TO SHOP-MADE TOOLS     WF58.50-P-0110-01A
24 Remove engine wiring harness from engine Engine 274.9 in model 253.354/954 with transmission 724.2
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR15.18-P-1000-05MRB
    Engine 274.9 in model 253 with transmission 716.7
except code M005 (Vehicles with 4MATIC/all-wheel drive)
Engine 274.9 in model 253 with transmission 725.0
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR15.18-P-1000-05MRC
    TORQUE SPECIFICATION Nut, positive line to busbar on firewall *BA54.18-P-1001-02C
    TORQUE SPECIFICATION Nut, ground line to pin/underfloor *BA00.19-P-1043-01E
    TORQUE SPECIFICATION M6X1 *BA00.10-P-1002-04A
25 Remove ME-SFI [ME] control unit (N3/10) and secure with connected lines to engine against falling down   AR07.08-P-7008MRA
26 Remove bracket of ME-SFI [ME] control unit (N3/10)
27 Remove vacuum line (1) from vacuum pump
28 Release and disconnect inerting system line at firewall and seal openings with suitable stop plugs Engine 274.9 in model 253
with code 2U8 (Alternative refrigerant)
except code M005 (Vehicles with 4MATIC/all-wheel drive)

      AR86.10-P-0419LWE
    SPECIAL TOOL Record plug Fig 4
29 Remove bleed line (9) from cylinder head cover SPECIAL TOOL Hose clamp pliers Fig 1
30 Unclip vent line (9) and from holder and place to one side
31 Remove coolant hose (2) from bulkhead   AR20.20-P-7441-01RQ
32 Remove coolant hose (6)   AR20.20-P-7441-01RQ
33 Remove coolant hose (7)   AR20.20-P-7441-01RQ
34 Remove coolant hose (5) from charge air cooler   AR20.20-P-7441-01RQ
35 Remove coolant line (4) from charge air cooler   AR20.20-P-7441-01RQ
36 Remove coolant line (4) from oil filter housing and place to one side TORQUE SPECIFICATION M6X1 *BA00.10-P-1002-04A
37 Remove coolant hose (8) from engine   AR20.20-P-7441-01RQ
38 Release and disconnect purge line (3) at charge air cooler and seal openings with suitable stop plugs SPECIAL TOOL Record plug Fig 4
39 Remove poly-V belt Engine 274.9 in model 253 (except 253.354/954)
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR13.20-P-0001MRA
40 Release and disconnect electrical connection from refrigerant compressor
41 Remove A/C compressor from crankcase, place with attached lines to one side and secure against falling down TORQUE SPECIFICATION Screw/bolt, refrigerant compressor to timing case/crankcase/engine support *BA83.55-P-1001-01M
42 Attach load tilter to all available engine lifting lugs as well as to boom crane and slightly lift engine
REFER TO SPECIAL TOOLS 000 588 00 62 00 Load tilter   WS01.00-P-0102B
    NOTES
When lifting, do not subject engine mounts to tension.
Otherwise, engine mounts are damaged.
IMPORTANTCommercially available devices/tools  Boom crane

43 Remove front engine mounts from engine supports   AR22.10-P-4330LWC
44 Lift out the engine together with the transmission
REFER TO SPECIAL TOOLS 000 588 00 62 00 Load tilter   WS01.00-P-0102B
    NOTES
When lifting out/in engine, do not damage any lines and hoses.
Otherwise leaks and engine damage can occur.
IMPORTANTCommercially available devices/tools  Boom crane
IMPORTANT Two helpers required.

45 Install in the reverse order
INSPECT Check
46 Check engine oil level and correct
REFER TO MAINTENANCE     AP18.00-P-1811MP
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of accident from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
47 Perform engine test run; as part of this check engine and transmission for proper operation and leak tightness
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6X1 Nm 9 13
GROUND POINTS

Number Designation Model 253 (except 253.99) as of model year 2020 Model 253 (except 253.99) up to model year 2020
BA00.19-P-1043-01E Nut, ground line to pin/underfloor M8 Nm 20 20
OIL PAN

Number Designation Engine 274
BA01.45-P-1002-01T Drain screw to oil pan Nm 40
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 274
BA07.03-P-1003-01F Dust cap at service connection Plastic Nm 2
Metal Nm 15
WIRING HARNESS

Number Designation Model 253
BA54.18-P-1001-02C Nut, positive line to busbar on firewall M6 Nm 8
M8 Nm 16
REFRIGERANT COMPRESSOR

Number Designation Engine 274
BA83.55-P-1001-01M Screw/bolt, refrigerant compressor to timing case/crankcase/engine support Nm 20
ENGINE LUBRICATION

Number Designation Engine 274.91 in model 205, 213 Engine 274.92 in model 205, 213, 238, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)
BF18.00-P-1001-01ZA Engine oil Oil filling capacity with oil filter L 7
Specification   SI18.00-P-1311A

Fig 1: Identifying Hose Clamp Pliers (003 589 03 37 00)
G11065562Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Pliers For Click Clamps (171 589 00 37 00)
G13745025Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Retainer Device (129 589 01 21 00)
G13743638Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Record Plug (129 589 00 91 00)
G12078802Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Pressure Hose (119 589 04 63 00)
G13744353Courtesy of MERCEDES-BENZ USA
