Remove/Install Front Engine Mount - AR22.10-P-4330LWC
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.9 in model 253 except code M005 (4MATIC)
Shown on right front engine mount (2)

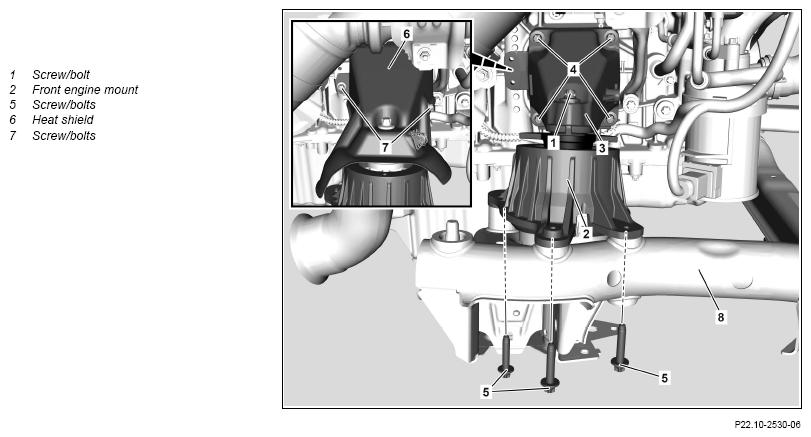

Fig 1: Front Engine Mount Components Location - Engine 274.9 In Model 253 Except Code M005 (Right Side Shown)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Deactivate memory package | Engine 274.9 in model 253 with code 275 (Memory package) except code M005 (4MATIC) | |
| 2 | Turn rack-and-pinion steering to central position (front wheels in straight ahead position) and secure steering wheel with the holding device | The steering wheel must not be turned when detaching steering coupling. Otherwise the clock spring contact will be destroyed. |
Fig 2 |
| 3 | Remove engine air intake duct upstream of air filter | ||
| 4 | Remove center and rear lower engine compartment paneling | AR61.20-P-1105LW | |
| 5 | Disconnect exhaust system between CAT and center muffler | AR49.10-P-7283RF | |
| 6 | Unclip engine management control unit with bracket and place to one side with connected lines | ||
| 7 | Remove screw/bolts (1) from left and right engine mount (2) | *BA22.10-P-1001-03M | |
| 8 | Mount engine hoist and raise engine | Do not put electrical lines and hoses under tension. Otherwise damage will occur. |
AR33.10-P-0105LW |
| 9 | Detach steering coupling from steering shaft | AR46.10-P-8000LW | |
| 10 | Remove screw/bolts (5) from left and right front engine mount (2) and remove both front engine mounts (2) downwards | ||
| *BA22.10-P-1002-03M | |||
| 11 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253 (except 253.388/389/988/989) | ||
|---|---|---|---|---|
| BA22.10-P-1001-03M | Bolt, front engine mount to engine support | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | - | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253 (except 253.388/389/988/98 9) | |
|---|---|---|---|
| BA22.10-P-1002-03M | Screw/bolt, front engine mount to front axle carrier | Nm | 30 |
