Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MRC
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.9 in model 205 with transmission 716.7
Engine 274.9 in model 205 with transmission 725.0
Engine 274.9 in model 253 with transmission 716.7
Engine 274.9 in model 253 with transmission 725.0
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 X 1 | Nm | 9 | 13 |
GROUND POINTS
| Number | Designation | Model 205 up to model year 2019 | Model 205 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA00.19-P-1043-01E | Nut, ground line to pin/underfloor | M8 | Nm | 20 | 20 |
GROUND POINTS
| Number | Designation | Model 253 (except 253.99) | ||
|---|---|---|---|---|
| BA00.19-P-1043-01E | Nut, ground line to pin/underfloor | M8 | Nm | 20 |
WIRING HARNESS
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BA54.18-P-1001-02C | Nut, positive line to busbar on firewall | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||

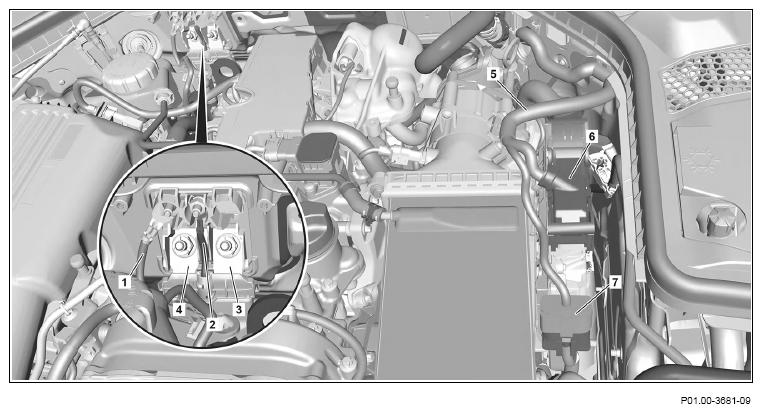

- Release and disconnect electrical connection (7).
- Release and disconnect electrical connection (6).
- Unclip wiring harness (5) from charge air cooler and Engine management control unit holder and place to one side.
- Detach electrical line (3) from busbar
.
- Engine 274.9 in model 205 (except 205.048/049/148/248/348/349/448/449) with transmission 725.0
Engine 274.9 in model 253 (except 253.349/948/949) with transmission 725.0
Engine 274.9 in model 253 (except 253.349/949) with transmission 716.7
Detach electrical line (1) from busbar
- Detach electrical line (2) from busbar
- Detach electrical line (4) from busbar

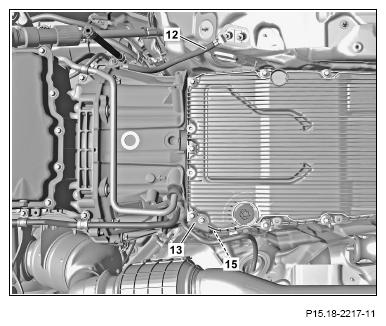

- Detach ground line (12) from underfloor
- Detach heat shield (13) from transmission
- Release and disconnect electrical connection (15).
- Engine 274.9 in model 205 with transmission 716.7 Engine 274.9 in model 253 with transmission 716.7 Release and disconnect electrical connection from neutral position encoder.
- Connect in reverse order.
