Remove/Install Bleed Line With Engine Oil Filler Neck - AR01.20-P-0022MRI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 253
MODIFICATION NOTES
| 18.04.2019 | Method description adapted. | Operation step 4 | |
| 17.04.2019 | AS49.00-Z-0001-01A, added. | Step 9 |

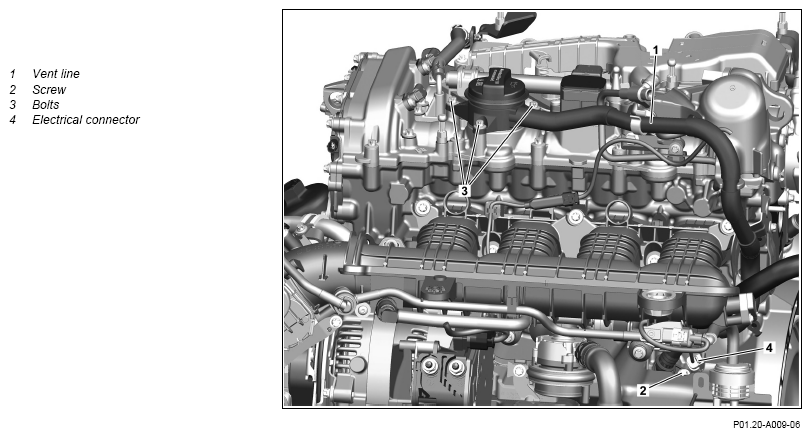

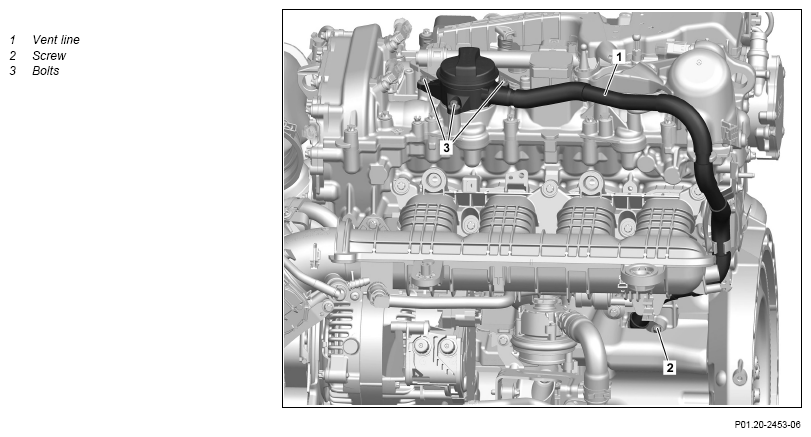

Fig 1: Bleed Line With Engine Oil Filler Neck Components Location - Engine 264 In Model 253 (Shown With Code 494)
Shown with code 494 (USA version)
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Loosen top rear engine cover and fold to one side. | AR01.10-P-2408MRI | |
| 2 | Release and disconnect electrical connector of pressure sensor downstream of air filter (B28/11). | ||
| 3 | Remove center and rear sections of lower engine compartment lining. | AR61.20-P-1105LW | |
| 4 | Release and disconnect electrical connector (4). | Engine 264 in model 205, 253 with code 460 (Canada version) Engine 264 in model 205, 253 with code 494 (US version) Engine 264 in model 205, 253 with code 835 (South Korea version) Engine 264 in model 205, 253 with code 945 (China Stage 6 exhaust treatment) |
|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 5 | Remove screw (2) and pull bleed line (1) out of crankcase. | *BA01.20-P-1005-03B | |
| 6 | Remove screw/bolts (3). | *BA01.20-P-1003-03B | |
| 7 | Unclip bleed line (1) and remove. | ||
| 8 | Install in the reverse order. | ||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. | ||
| 10 | Install center and rear lower engine compartment lining. | AR61.20-P-1105LW | |
| 11 | Install upper engine cover. | AR01.10-P-2405MRI |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA01.20-P-1003-03B | Bolt, filler neck to cylinder head cover | Nm | 9 |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA01.20-P-1005-03B | Bolt, crankcase ventilation system vent line to crankcase | Nm | 9 |
