Inspect Cylinders With A Light Probe - AR01.00-P-0200MRI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 253
MODIFICATION NOTES
| 05.08.2019 | Information document AH05.30-P-1000-02SZ, added. | Operation step 5. |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove spark plug of the cylinder to be checked. | ||
| AP15.10-P-1580MCU | |||
| 2 | Remove the charge air cooler. | AR09.41-P-6817MRI | |
| 3 | Turn engine at center bolt of the crankshaft in the direction of engine rotation until the piston of the cylinder to be checked is at bottom dead center (BDC). | ||

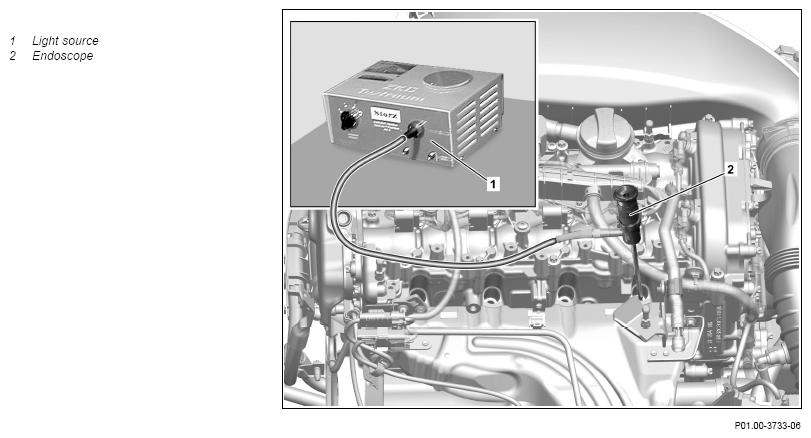

| 4 | Connect endoscope (2) to light source (1) and insert through the spark plug bore in the cylinder to be checked. | ||
| 000 588 01 21 00 Endoscope | WS01.00-P-0097B | ||
| Check | |||
| 5 | Check cylinder barrels. | ||
| General information on checking valves, valve seats and valve guides | AH05.30-P-1000-02SZ | ||
| General information on inspecting cylinder walls | If the condition of the cylinder barrel is not clearly recognizable, ↓ Remove cylinder head. |
AH01.00-P-0300-01A | |
| AR01.30-P-5800MRI | |||
| 6 | Install in the reverse order. |
