Remove/Install Inner Trim On Seat Frame - AR91.10-P-1202CLW
Model 205.3/4, 238
MODIFICATION NOTES
| 24.07.2019 | WIS Service Media added in operation step 2. |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/Install | |||
| 1 | Remove front seat. | Model 205.3, 238 | AR91.10-P-1000LW |
| Model 205.4 | AR91.10-P-1000LWR | ||

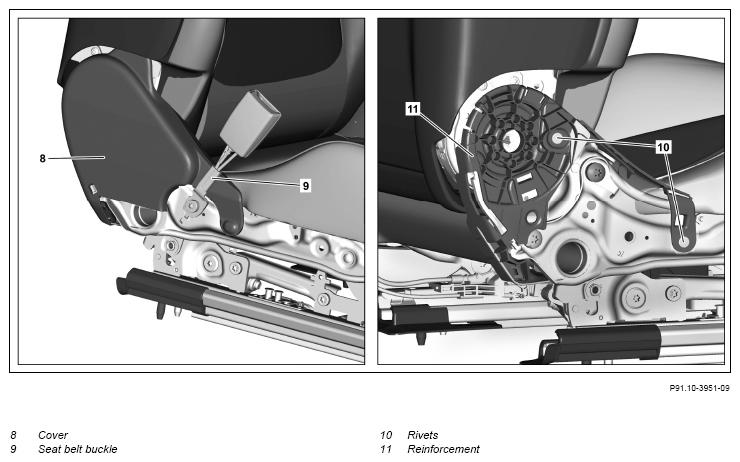

| 2 | Remove belt buckle (9) from seat frame and place to one side with electric lines attached. | WIS Service Media Operation steps 2 to 6 are shown here: multimedia:A supplement to the article is available.
|
AR91.40-P-1515LW |
| 3 | Unclip and remove trim (8). | Long wedge |
Fig 2 |
| 4 | Unhook electrical wiring harness of seat belt buckle (9) from reinforcement (11). | ||
| 5 | Drill out rivets (10). | Replace rivets (10). |
|
| 6 | Release locks and remove reinforcement (11). | ||
| 7 | Install in the reverse order |
