Remove/Install Seat Belt Buckle (Front Seat) - AR91.40-P-1515LW

Model 205

Model 213

Model 238

Model 253, 293

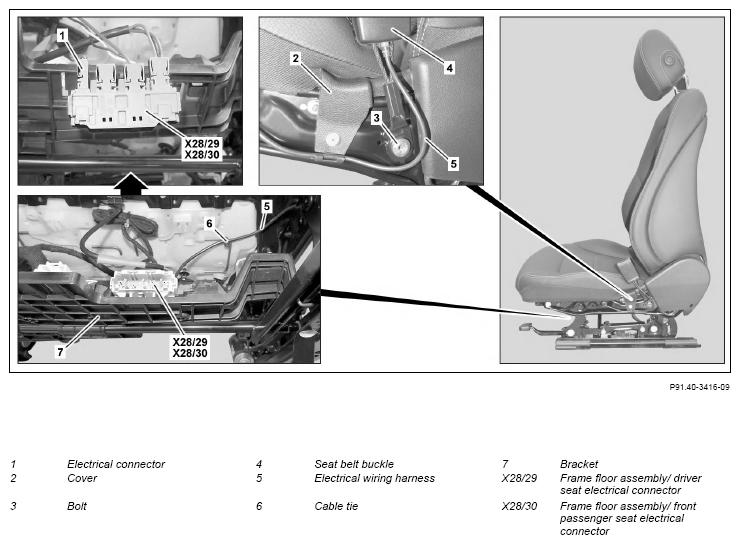

Fig 1: Seat Belt Buckle/Front Seat Components Location - Model 205

Courtesy of MERCEDES-BENZ USA

Shown on Model 205.0

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove front seat and place on seat backrest	Model 205.0/1/2/3, 213, 238, 253, 293	AR91.10-P-1000LW
		Model 205.4	AR91.10-P-1000LWR
2	Release catch hooks (8) and remove frame floor assembly electrical connector (X28/29, X28/30) from holder (7).
3	Release electrical connector (1) of electrical wiring harness (5) using two suitable screwdrivers and pull out frame floor assembly electrical connector (X28/29, X28/30).	Carefully remove electrical connection (1). Otherwise, this may be damaged.
4	Release electrical wiring harness (5) from trim (2) and expose.	Fix electrical wiring harness (5) to seat adjustment unit so that the front seat can be adjusted without any restriction. Otherwise shearing off or crushing of the electrical wiring harness (5) may occur. Replace cable tie (6). Dismantling tool	Fig 2
5	Remove bolt (3) and remove seat belt buckle (4).	Note correct installation position of belt buckle (4). Bolt, front seat belt buckle	*BA91.40-P-1004-01U
6	Install in the reverse order

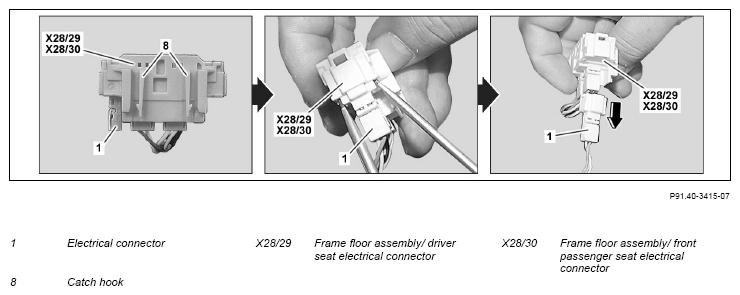

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)
