Remove/Install Front Seat Cushion Padding - AR91.10-P-5040LWA

Model 205

except code 221 (Electrically Adjustable Left Driver Seat)

except code 222 (Electrically Adjustable Right Driver Seat)

except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)

except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

except code 275 (Driver's Seat, Electrically Adjustable With Memory Function)

except code 555 (AMG-Performance Seat)

except code P65 (Seat Comfort Package)

Model 238

except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)

except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))

except code P65 (Seat Comfort Package)

Model 253

except code 221 (Electrically Adjustable Left Driver Seat)

except code 222 (Electrically Adjustable Right Driver Seat)

except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)

except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

except code 275 (Driver's Seat, Electrically Adjustable With Memory Function)

except code 555 (AMG-Performance Seat)

except code P65 (Seat Comfort Package)

Model 293

except code 221 (Electrically Adjustable Left Driver Seat)

except code 222 (Electrically Adjustable Right Driver Seat)

except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)

except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

except code 275 (Driver's Seat, Electrically Adjustable With Memory Function)

except code P65 (Seat Comfort Package)

Courtesy of MERCEDES-BENZ USA

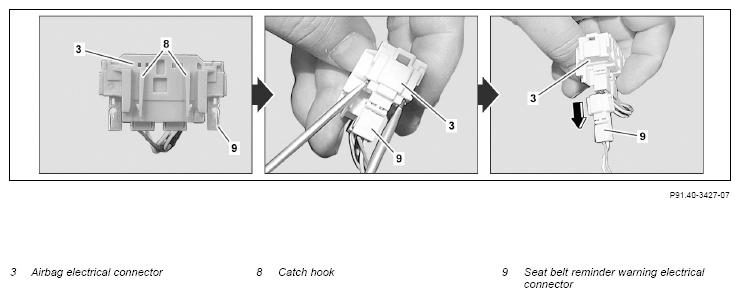

Shown on Model 205 up to model year 2015 except code U10 (Automatic Front Passenger Airbag Shutoff)

Courtesy of MERCEDES-BENZ USA

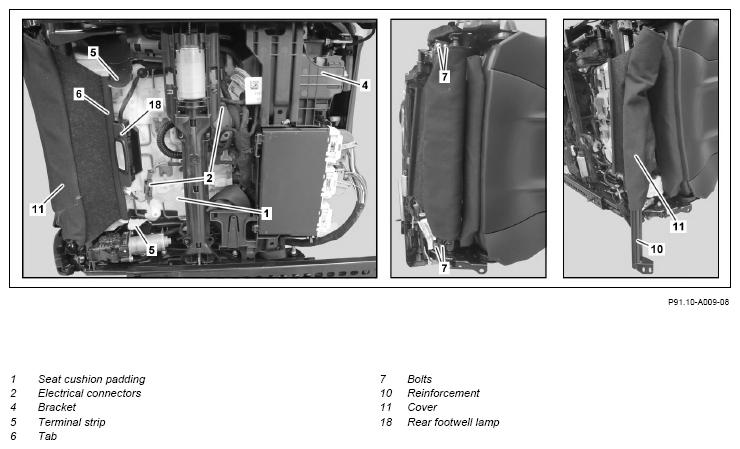

Shown on Model 205 with code 876 (Interior Light Package) and with code 873 (Seat Heating For Driver And Front Passenger)

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/Install
1	Remove front seat.	Model 205.0/1/2/3, 253 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 238 except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 293 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)	AR91.10-P-1000LW
		Model 205.4 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)	AR91.10-P-1000LWR
2	Remove outer trim from seat frame.	Model 205.3/4 with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 409 (Left And Right Front Multicontour Seat) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 238 with code U22 (Lumbar Support Adjustment) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code 432 (Dynamic seats left and right) except code P65 (Seat Comfort Package)	AR91.10-P-1201CLA
		Model 205.0/1/2, 253 with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 409 (Left And Right Front Multicontour Seat) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 293 with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 409 (Left And Right Front Multicontour Seat) except code P65 (Seat Comfort Package)	AR91.10-P-1201LW
3	Remove inner trim from seat frame.	Model 205.0/1/2, 253 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 293 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)	AR91.10-P-1202LW
		Model 205.3/4 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 238 except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except except code P65 (Seat Comfort Package) code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))	AR91.10-P-1202CLW
4	Release catch hooks (8) and remove airbag electrical connector (3) from holder (4).	Model 205 up to model year 2015 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor) When removing seat cushion padding (1) of front passenger seat.
5	Use suitable tool to release seat belt reminder warning electrical connector (9) and remove from airbag electrical connector (3).	Model 205 up to model year 2015 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor) When removing seat cushion padding (1) of front passenger seat.
6	Unhook rear footwell lamp (18) from seat adjustment unit and hang to one side with connected electric line.	Model 205, 253 with code 876 (Interior Light package) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 205, 253 with code 877 (Ambient lighting) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 238 except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code 399 (Front multicontour seat with massage function) except code P65 (Seat Comfort Package)   Model 293 with code 876 (Interior Light package) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)   Model 293 with code 877 (Ambient lighting) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)
7	Unhook terminal strip (5).	Dismantling tool	Fig 2
8	Unhook shackles (6).
9	Unscrew bolts (7) and remove reinforcement (10) from shackle on cover (11).	If a cover (11) is hooked using a shackle into the reinforcement (10).
10	Remove electrical connectors (2) and disconnect.	Model 205, 253 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 205, 253 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 238 with code 401 (Climatised Front Seats) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 238 with code 873 (Left And Right Driver's Seat Heating) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 238 with code 902 (Seat heater Plus for driver and front passenger) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 293 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)   Model 293 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory switch for electrically adjustable front passenger seat, The number of electrical connectors (2) varies depending on the vehicle equipment. : Secure electrical wiring harness onto seat adjustment unit so that it is possible to adjust the front seat without any restrictions.
11	Unhook cover (11) from below all way round on seat cushion frame.	: Hook in cover (11), starting at corners. Dismantling tool	Fig 2
12	Remove seat cushion padding (1).	Observe routing of electrical wiring harnesses.
13	Remove cover of seat cushion padding (1) on driver's seat.	When replacing the seat cushion padding (1) on the driver's seat.	AR91.18-P-1801LWA
14	Remove cover of seat cushion padding (1) on front passenger seat.	Model 205 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 238 except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor))   Model 253 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 293 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)   When replacing seat cushion padding (1) on front passenger seat.
			AR91.18-P-1801LWA
15	Remove seat ventilation motors from front seat cushion padding (1).	When replacing the seat cushion padding (1) of the front seat.
		Model 238 with code 401 (Climatised Front Seats) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)	AR91.30-P-1952LWE
		Model 205 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 253 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 293 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)	AR91.30-P-1950LW
16	Glue on new heat mat for seat cushion padding (1) on driver's seat.	When replacing the seat cushion padding (1) on the driver's seat.
		Model 205, 253 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 205, 253 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 238 with code 401 (Climatised Front Seats) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 238 with code 873 (Left And Right Driver's Seat Heating) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 238 with code 902 (Seat heater Plus for driver and front passenger) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 293 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)   Model 293 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory switch for electrically adjustable front passenger seat,	AR91.30-P-0015LWE
17	Glue on new heat mat for seat cushion padding (1) on front passenger seat.	When replacing seat cushion padding (1) on front passenger seat.
		Model 205, 253 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 205, 253 with code 873 (Left And Right Driver's Seat Heating) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 238 with code 401 (Climatised Front Seats) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 238 with code 873 (Left And Right Driver's Seat Heating) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 238 with code 902 (Seat heater Plus for driver and front passenger) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 293 with code 401 (Climatised Front Seats) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function)	AR91.30-P-0016LWE
18.1	Remove sensor mat with Weight Sensing System (WSS) control unit from seat adjustment unit.	Model 205, 253 with code U10 (Front Passenger Seat With Weight Sensor) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 238 with code U10 (Front Passenger Seat With Weight Sensor) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)   Model 293 with code U10 (Front Passenger Seat With Weight Sensor) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)   When replacing seat cushion padding (1) on front passenger seat.
			AR91.60-P-0720LW
		The new seat cushion padding (1) including cover is delivered precalibrated complete with Weight Sensing System (WSS) control unit and sensor mat.
18.2	Remove seat occupancy recognition.	Model 205, 253 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 238 except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   Model 293 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)   When replacing seat cushion padding (1) on front passenger seat.
			AR91.60-P-0720LWA
19	Install in the reverse order
	Initial startup
20.1	Carry out commissioning of Weight Sensing System (WSS).	Model 205, 238, 253, 293 with code U10 (Automatic front passenger airbag shutoff) When removing seat cushion padding (1) on front passenger side.
		Model 293 with code U10 (Front Passenger Seat With Weight Sensor) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package)	AD00.00-P-2000-06FR
		Model 238 with code U10 (Front Passenger Seat With Weight Sensor) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package)	AD00.00-P-2000-06LWO
		Model 205 with code U10 (Front Passenger Seat With Weight Sensor) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)   Model 253 with code U10 (Front Passenger Seat With Weight Sensor) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package)	AD00.00-P-2000-04B
		Plates	Fig 1
20.2	Carry out commissioning of seat belt warning sensor.	Model 205, 238, 253, 293 except code U10 (Automatic front passenger airbag shutoff) When removing seat cushion padding (1) on front passenger side.
		Model 293 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)	AD00.00-P-2000-06FR
		Model 238 except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)	AD00.00-P-2000-06LWO
		Model 205, 253 except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) except code 555 (AMG-Performance Seat) except code P65 (Seat Comfort Package) except code U10 (Front Passenger Seat With Weight Sensor)	AD00.00-P-2000-04B
		Menu sequence: SRS control unit → Actual value → Front passenger seat belt reminder warning When the front passenger seat is occupied by a person with a weight > 48 kg, the actual value must change from "NOT OCCUPIED" to "OCCUPIED".
