Remove/Install Front Seat Cushion Cover - AR91.18-P-1801LWA
Model 205, 253
except code 221 (Electrically Adjustable Left Driver Seat)
except code 222 (Electrically Adjustable Right Driver Seat)
except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
except code 275 (Driver's Seat, Electrically Adjustable With Memory Function)
except code 555 (AMG-Performance Seat)
except code P65 (Seat Comfort Package)
Model 238
except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))
except code P65 (Seat Comfort Package)
Model 293
except code 221 (Electrically Adjustable Left Driver Seat)
except code 222 (Electrically Adjustable Right Driver Seat)
except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
except code 275 (Driver's Seat, Electrically Adjustable With Memory Function)
except code P65 (Seat Comfort Package)
| Remove | |||

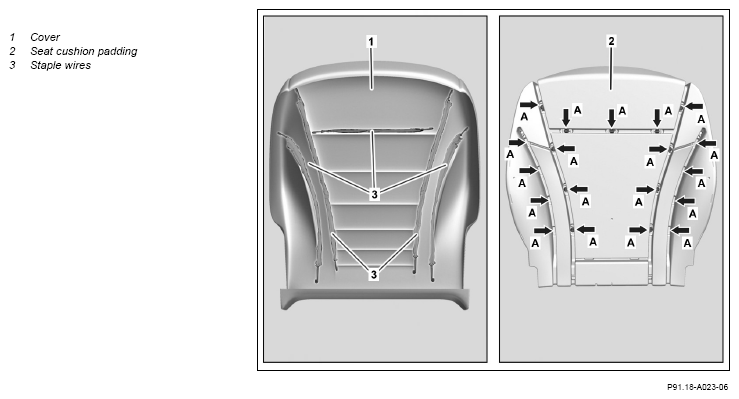

| 1 | Remove seat cushion padding (2). | AR91.10-P-5040LWA | |
| 2 | Pull cover (1) over seat cushion padding (2). | ||
| 3 | Release staple wires at attachment points (arrows A). | AR91.18-P-1802-01LW | |
Padding clip pliers |
Fig 3 | ||
Dismantling tool |
Fig 2 | ||
| 4 | Remove cover (1) from seat cushion padding (2). | ||
| Install | |||
| 5 | Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2). | ||
| 6 | Fasten staple wires (3) at attachment points (arrows A). | AR91.18-P-1802-01LW | |
Padding clip pliers |
Fig 3 | ||
Dismantling tool |
Fig 2 | ||
| 7 | Pull cover (1) over seat cushion padding (2). | ||
| 8 | Install seat cushion padding (2). | AR91.10-P-5040LWA |
