Replace All Elastomer Bearings On Rear Axle Wheel Carrier - AR35.20-P-0125MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
with code U55 (Multi-link axle)
Shown on elastomer bearing (2) of spring control arm
Shown on elastomer bearing (2) of spring control arm
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Evaluation of elastomer bearings | AH00.10-P-0001-01A | ||
| Remove | |||
| 1 | Detach brake caliper using suitable means and fasten to vehicle without tension. | If the elastomer bearing (2) of the camber strut is replaced. | AR42.10-P-0080MFA |
| 2.1 | Remove spring link. | If the elastomer bearing (2) of the spring link is replaced. | AR35.20-P-0119MFA |
| 2.2 | Remove tie rod. | If the elastomer bearing (2) of the tie rod is replaced. Model 243 with code U55 (Multi-link axle) |
AR35.20-P-0109EQA |
| Model 118, 177, 247 with code U55 (Multi-link axle) | AR35.20-P-0109MFA | ||
| 2.3 | Remove camber strut. | If the elastomer bearing (2) of the camber strut is replaced. Model 243 with code U55 (Multi-link axle) |
AR35.20-P-0110EQA |
| Model 118, 177, 247 with code U55 (Multi-link axle) | AR35.20-P-0110MFA | ||

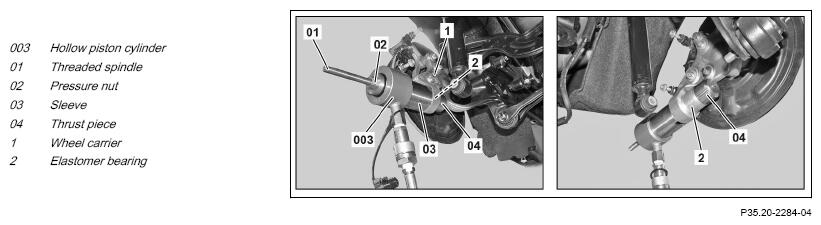

| 3 | Fit tool assembly on wheel carrier (1) and elastomer bearing (2) and secure with suitable means to prevent it falling. | Fig 1 | |
| Fig 3 | |||
| Fig 2 | |||
| Fig 4 | |||
| 4 | Press elastomer bearing (2) out of wheel carrier (1). | Fig 1 | |
| Fig 3 | |||
| Fig 2 | |||
| Install | |||
| 5 | Fit tool assembly on wheel carrier (1), attach elastomer bearing (2) to threaded spindle (01) with thrust piece (04) and secure assembly with suitable means to prevent it falling. | Note chamfer on wheel carrier (1). When pressing in the elastomer bearing (2), position it on the chamfered side of the wheel carrier (1) and press into place. The elastomer bearing (2) and, possibly, the wheel carrier (1) can otherwise be damaged. |
Fig 3 |
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||

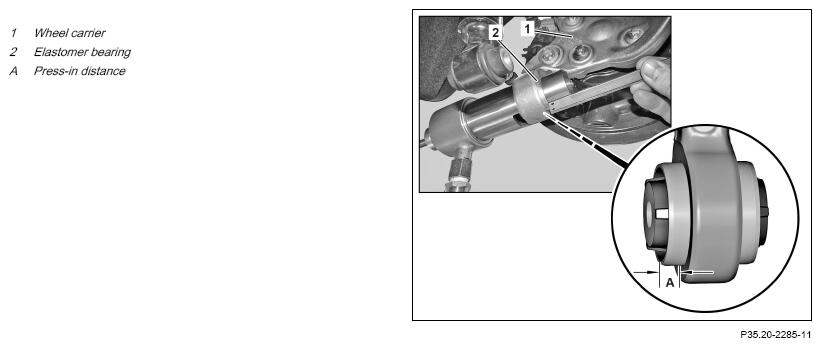

| 6 | Press elastomer bearing (2) evenly into wheel carrier (1). | *BE35.20-P-1002-03A | |
| *BE35.20-P-1003-03A | |||
| *BE35.20-P-1004-03A | |||
| 7 | Remove assembly from wheel carrier (1). | Fig 3 | |
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||
| 8.1 | Install spring link. | If the elastomer bearing (2) of the spring link was replaced. | AR35.20-P-0119MFA |
| 8.2 | Install tie rod. | If the elastomer bearing (2) of the tie rod is replaced. Model 243 with code U55 (Multi-link axle) |
AR35.20-P-0109EQA |
| Model 118, 177, 247 with code U55 (Multi-link axle) | AR35.20-P-0109MFA | ||
| 8.3 | Install camber strut. | If the elastomer bearing (2) of the camber strut was replaced. Model 243 with code U55 (Multi-link axle) |
AR35.20-P-0110EQA |
| Model 118, 177, 247 with code U55 (Multi-link axle) | AR35.20-P-0110MFA | ||
| 9 | Install brake caliper. | If the elastomer bearing (2) of the camber strut was replaced. | AR42.10-P-0080MFA |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 118 (except 118.351/353/354/651/653/654) | Model 118.351/353/354/651/653/654 | |
|---|---|---|---|---|
| BE35.20-P-1002-03A | Press-in dimension for spring control arm rubber bushing in wheel carrier | mm | 3, 8 ±0, 2 | 3, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 177 (except 177.051/054/151/951) | Model 177.051/054/151/951 | |
|---|---|---|---|---|
| BE35.20-P-1002-03A | Press-in dimension for spring control arm rubber bushing in wheel carrier | mm | 3, 8 ±0, 2 | 3, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 243 | Model 247 (except 247.651/751/753/754) | |
|---|---|---|---|---|
| BE35.20-P-1002-03A | Press-in dimension for spring control arm rubber bushing in wheel carrier | mm | 3, 8 ±0, 2 | 3, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 247.651/751/753/754 | |
|---|---|---|---|
| BE35.20-P-1002-03A | Press-in dimension for spring control arm rubber bushing in wheel carrier | mm | 3, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 118 (except 118.351/353/354/651/653/654) | Model 118.351/353/354/651/653/654 | |
|---|---|---|---|---|
| BE35.20-P-1003-03A | Press-in dimension for tie rod rubber bushing in wheel carrier | mm | 7, 7 ±0, 2 | 6, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 177 (except 177.051/054/151/951) | Model 177.051/054/151/951 | |
|---|---|---|---|---|
| BE35.20-P-1003-03A | Press-in dimension for tie rod rubber bushing in wheel carrier | mm | 7, 7 ±0, 2 | 6, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 243 | Model 247 (except 247.651/751/753/754) | |
|---|---|---|---|---|
| BE35.20-P-1003-03A | Press-in dimension for tie rod rubber bushing in wheel carrier | mm | 7, 7 ±0, 2 | 7, 7 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 247.651/751/753/754 | |
|---|---|---|---|
| BE35.20-P-1003-03A | Press-in dimension for tie rod rubber bushing in wheel carrier | mm | 6, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 118 (except 118.351/353/354/651/653/654) | Model 118.351/353/354/651/653/654 | |
|---|---|---|---|---|
| BE35.20-P-1004-03A | Press-in dimension for camber strut rubber bushing in wheel carrier | mm | 6, 8 ±0, 2 | 6, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 177 (except 177.051/054/151/951) | Model 177.051/054/151/951 | |
|---|---|---|---|---|
| BE35.20-P-1004-03A | Press-in dimension for camber strut rubber bushing in wheel carrier | mm | 6, 8 ±0, 2 | 6, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 243 | Model 247 (except 247.651/751/753/754) | |
|---|---|---|---|---|
| BE35.20-P-1004-03A | Press-in dimension for camber strut rubber bushing in wheel carrier | mm | 6, 8 ±0, 2 | 6, 8 ±0, 2 |
CHECK VALUES FOR REAR AXLE ELASTOMER BEARINGS
| Number | Designation | Model 247.651/751/753/754 | |
|---|---|---|---|
| BE35.20-P-1004-03A | Press-in dimension for camber strut rubber bushing in wheel carrier | mm | 6, 8 ±0, 2 |
