Remove/Install Rear Axle Spring Control Arm - AR35.20-P-0119MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
with code U55 (Multi-link axle)

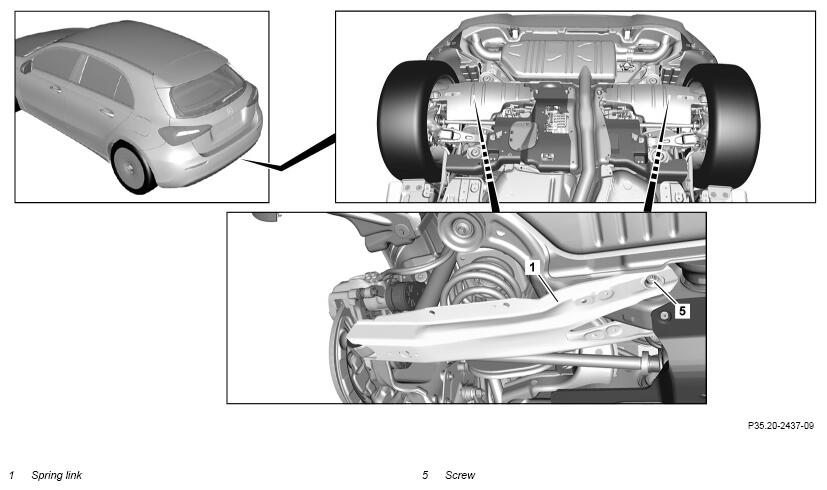

Fig 1: Rear Axle Spring Control Arm Components Location - Model 118 With Code U55 (Shown On Model 177.0)
Shown on model 177
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension | Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. | AS00.00-Z-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove left or right rear axle spring. | Model 118, 177, 247 with code U55 (Multi-link axle) except code U54 (Compound-link axle) |
AR32.20-P-0232MFB |
| Model 243 with code U55 (Multi-link axle) |
AR32.20-P-0232EQA | ||
| 2 | Unscrew nut of screw (5), remove screw (5) and remove spring link (1). | *BA35.20-P-1001-01D | |
| 3 | Install in the reverse order. |
SPRING CONTROL ARM
| Number | Designation | Model 118, 177, 243, 247 | ||
|---|---|---|---|---|
| BA35.20-P-1001-01D | Self-locking screw/nut, spring link to rear axle carrier | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | ||
