Remove/Install Radial Shaft Sealing Ring Of Rear Axle Drive Shaft - AR35.30-P-4651MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247 with engine 260, 282, 654

with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

13.02.2020 Rear axle differential filling capacity Model 118 (except 118.353/354/653/654) Model 177 (except 177.053/054) Model 247 (except 247.753/754) BF35.31-P-1001-02F
G16049168Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
REMOVING Remove
1 Remove corresponding rear axle shaft.   AR35.30-P-0621MFC

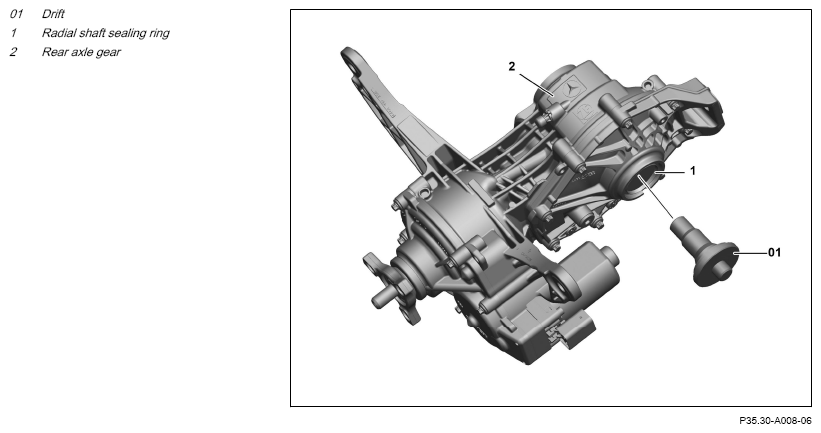

2 Pry radial shaft sealing ring (1) out of rear axle differential (2) using a suitable tool. NOTES
Do not damage the seat of the radial shaft sealing ring (1) in the rear axle differential (2).
Leakage will otherwise occur.
3 Clean seat of radial shaft sealing ring (1) in rear axle differential (2). Assembly cleaner *BR00.45-Z-1028-04A
4 Check seat of radial shaft sealing ring (1) in rear axle differential (2) for damage. If damage is found,
↓
Replace rear axle differential (2).		 AR35.31-P-0522MFC
INSTALLING Install
5 Press in radial shaft sealing ring (1) using drift (01) far enough so that drift (01) makes contact on rear axle differential (2). IMPORTANT Replace radial shaft sealing ring (1).
SPECIAL TOOL Drift		 Fig 2
    SPECIAL TOOL Handle Fig 1
6 Moisten sealing lip of radial shaft sealing ring (1) with transmission oil.
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7)   BB00.40-P-0235-07A
7 Install corresponding rear axle shaft.   AR35.30-P-0621MFC
8 Check and correct oil level in rear axle differential (2).   AR35.31-P-0520-08MFC
    FLUID SPECIFICATION Rear axle differential filling capacity *BF35.31-P-1001-02F
    Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    TORQUE SPECIFICATION Filling screw/drain screw to housing cover at front/side *BA35.31-P-1005-07A
9 Check rear axle differential (2) for leak tightness.
REAR AXLE GEAR

Number Designation Model 118 Model 177
BA35.31-P-1005-07A Filling screw/drain screw to housing cover at front/side Nm 35 35
REAR AXLE GEAR

Number Designation Model 247
BA35.31-P-1005-07A Filling screw/drain screw to housing cover at front/side Nm 35
REAR AXLE GEAR

Number Designation Model 118 (except 118.353/354/653/65 4) Model 177 (except 177.053/054) Model 247 (except 247.753/754)
BF35.31-P-1001-02F Rear axle differential filling capacity Rear axle differential 150 Liter 0, 6
Specified gear oils - overview   BB00.40-P-0231-01A
Approved axle gear oils   BB00.40-P-0235A
Fig 1: Identifying Handle (001 589 00 40 00)
G13657477Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Drift (177 589 02 15 00)
G14688886Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) A 002 989 23 71
