Remove/Install Fuel Tank - AR47.10-P-4100MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 139
Shown on model 177
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

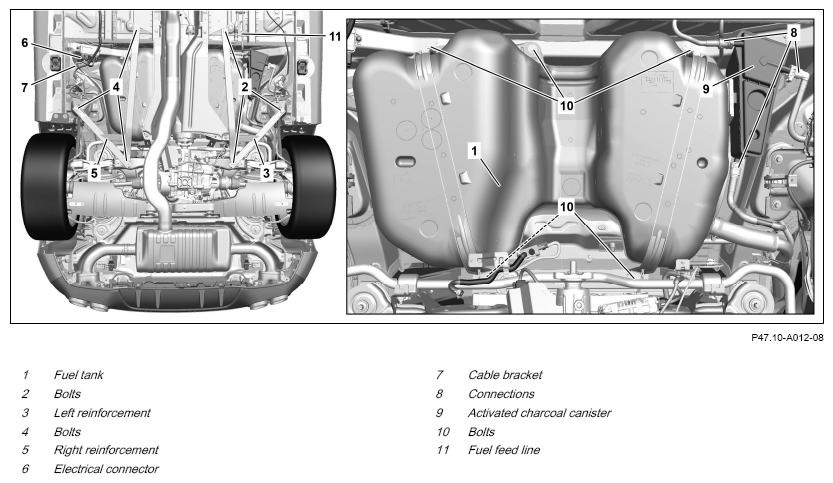

| 1 | Empty the fuel tank (1). | AR47.10-P-4001MFD | |
| 2 | Remove propeller shaft. | Model 118, 177, 247 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR41.10-P-0050MFA |
| 3 | Unscrew bolts (2) and remove left reinforcement (3). | *BA61.10-P-1006-01N | |
| *BA61.10-P-1005-01N | |||
| *BA61.10-P-1004-01N | |||
| 4 | Unscrew bolts (4) and remove right reinforcement (5). | *BA61.10-P-1006-01N | |
| *BA61.10-P-1005-01N | |||
| *BA61.10-P-1004-01N | |||
| 5 | Remove filler neck with bleed line for fuel tank. | AR47.10-P-7541MFG | |
| 6 | Release and disconnect electrical connector (6) at fuel system control unit (N118). | ||
| 7 | Unclip cable bracket (7). | ||
| 8 | Release and disconnect connections (8) from activated charcoal canister (9). | ||
| 9 | Seal exposed openings with suitable stop plugs. | Fig 2 | |
| 10 | Release and disconnect fuel feed line (11). | ||
| 11 | Seal the openings with suitable stop plugs. | Fig 2 | |
| 12 | Support fuel tank (1). | ||
| 000 588 23 62 00 Mounting plate | WS26.00-P-0415B | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 13 | Remove screws (10). | *BA47.10-P-1001-01T | |
| 14 | Lower fuel tank (1) and remove. | ||
| Check | |||
| 15 | Perform visual check on fuel tank (1) and its connection and check for crack formation and damage. | If there are problems: ↓ Replace appropriate parts. |
|
| 16 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
FUEL TANK
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA47.10-P-1001-01T | Bolt, fuel tank/tensioning strap for fuel tank to body | M8 | Nm | 23 | 23 |
FUEL TANK
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA47.10-P-1001-01T | Bolt, fuel tank/tensioning strap for fuel tank to body | M8 | Nm | 23 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 118, 177, 247 | ||
|---|---|---|---|---|
| BA61.10-P-1004-01N | Screw/nut, strut to mounting console | M10 | Nm | 45 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 118, 177, 247 | ||
|---|---|---|---|---|
| BA61.10-P-1005-01N | Screw, strut to rear axle carrier | M10 | Nm | 45 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 118, 177, 247 | ||
|---|---|---|---|---|
| BA61.10-P-1006-01N | Screw, strut to frame floor assembly | M10 | Nm | 45 |
