Empty/Fill Fuel Tank - AR47.10-P-4001MFD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 139, 260, 282
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Draining | |||
| 1 | Open fuel filler flap and fuel filler cap. | ||
| 2 | Remove ground line of battery. | AR54.10-P-0003MFA | |
| 3 | Use ground point to connect ground line for pump to vehicle. | ||
| 000 588 04 71 00 Pump | WS47.00-P-0080B | ||

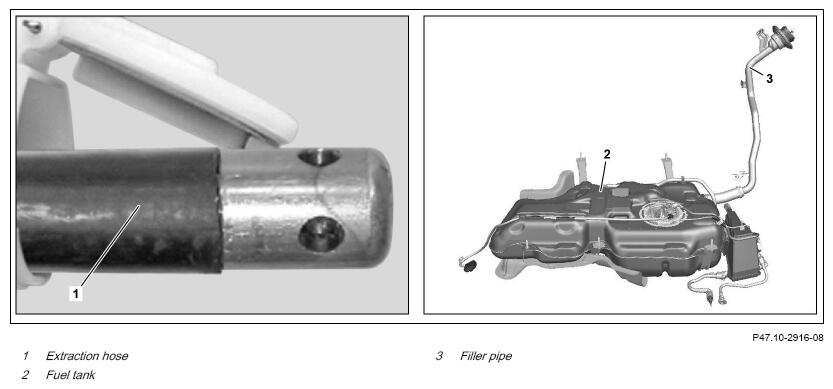

| 4 | Check extraction hose (1) for damage and ridging. | If there is a problem, ↓ Use new extraction hose (1). Use specified extraction hose (1) of the company Sucher und Plank (model 1700094). Only this extraction hose (1) can be removed again from the filler neck due to its shape. Non-observance leads to damage on the check valve and fuel tank (2). |
|
| 5 | Slide end of extraction hose (1) through filler neck and filler pipe (3) into fuel tank (2). | ||
| 6 | Extract fuel from fuel tank (2) using pump. | ||
| 000 588 04 71 00 Pump | WS47.00-P-0080B | ||
| 7 | Remove extraction hose (1) from filler neck. | ||
| Filling | |||
| 8 | Slide end of extraction hose (1) through filler neck and filler pipe (3) into fuel tank (2). | ||
| 9 | Pump extracted fuel quantity into fuel tank (2) using pump. | ||
| 000 588 04 71 00 Pump | WS47.00-P-0080B | ||
| 10 | Remove extraction hose (1) from filler neck. | ||
| 11 | Close fuel filler cap and fuel filler flap. | ||
| 12 | Disconnect pump ground line from vehicle ground connection. | ||
| 000 588 04 71 00 Pump | WS47.00-P-0080B | ||
| 13 | Install ground line of battery. | AR54.10-P-0003MFA |
