Remove/Install Filler Neck Of Fuel Tank - AR47.10-P-7541MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 139
MODIFICATION NOTES
| 17.01.2020 | Position air extraction system in working area and switch on, added. | Operation step 2 |
Shown on model 177.0
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Empty the fuel tank. | AR47.10-P-4001MFD | |
| 2 | Position air extraction system in working area and switch on. | ||
| 000 588 00 85 00 Air extraction system | WS47.00-P-0039B | ||
| 3 | Remove tank filler recess. | AR88.60-P-2001MFA | |

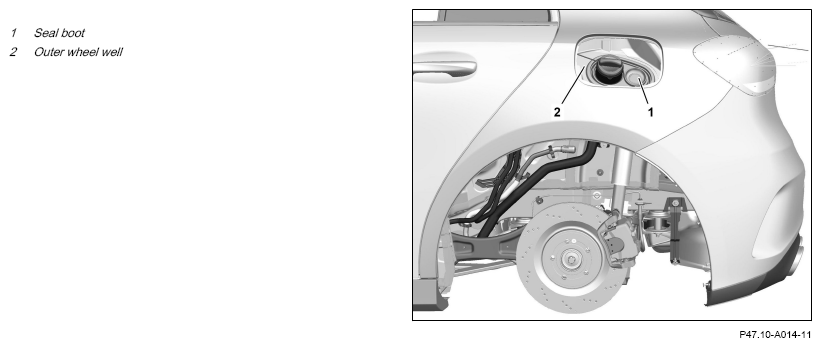

| 4 | Release sealing boot (1) at outer wheel well (2) and slide downward. | ||
| 5 | Detach left rear wheel and tire assembly. | AR40.10-P-1102MFA | |
| 6 | Remove fender liner in rear left fender. | AR88.10-P-1302MFA | |
| 7 | Remove underfloor paneling on left side. | AR61.30-P-1001MFA | |

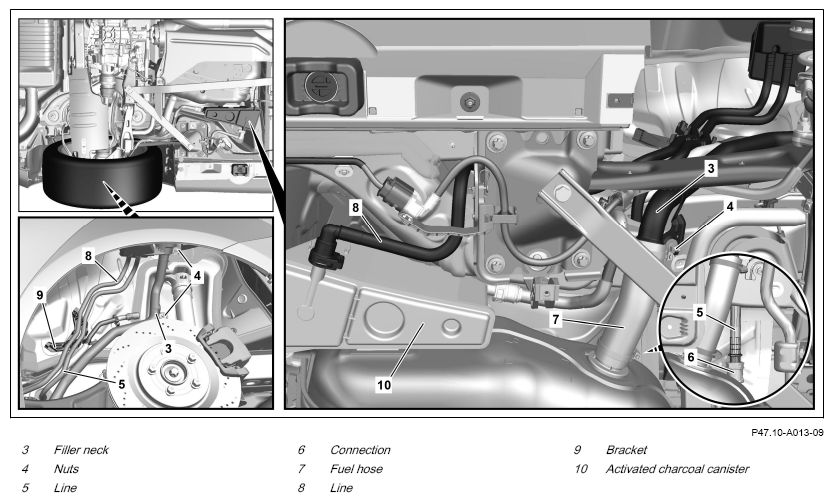

| 8 | Remove nuts (4). | *BA47.10-P-1003-01T | |
| 9 | Unclip line (5, 8) from bracket (9). | ||
| 10 | Release and disconnect line (5) from connection (6) at fuel tank. | ||
| 11 | Seal exposed openings with suitable stop plugs. | Fig 4 | |
| 12 | Release and disconnect line (8) from activated charcoal canister (10). | ||
| 13 | Seal exposed openings with suitable stop plugs. | Fig 4 | |
| 14 | Remove fuel hose (7) from filler neck (3) and seal with plug. | *BA47.10-P-1002-01T | |
| Fig 3 | |||
| 15 | Remove filler neck (3). | ||
| 16 | Remove sealing boot (1) from filler neck (3). | If sealing boot (1) or filler neck (3) is replaced. | |
| 17 | Seal exposed openings with suitable protective covers. | Fig 1 | |
| Fig 2 | |||
| 18 | Check all removed components for damage. | If damage is present: ↓ Replace corresponding components. |
|
| 19 | Install in the reverse order. | ||
| Check | |||
| 20 | Check fuel tank and connections for leaks. |
FUEL TANK
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA47.10-P-1002-01T | Clamp, fuel hose to fuel tank/filler neck | Nm | 4 | 4 |
FUEL TANK
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA47.10-P-1002-01T | Clamp, fuel hose to fuel tank/filler neck | Nm | 4 |
FUEL TANK
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA47.10-P-1003-01T | Nut, filler neck to body | M6 | Nm | 6 | 6 |
FUEL TANK
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA47.10-P-1003-01T | Nut, filler neck to body | M6 | Nm | 6 |
