Remove/Install Filler Neck Of Fuel Tank - AR47.10-P-7541MFD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 260
Model 118, 177, 247 with engine 282
except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
Shown on model 177
Shown on model 177
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Empty the fuel tank. | AR47.10-P-4001MFD | |
| 2 | Remove rear left wheel and tire assembly. | AR40.10-P-1102MFA | |
| 3 | Remove fender liner in rear left fender. | AR88.10-P-1302MFA | |
| 4 | Remove tank filler recess. | AR88.60-P-2001MFA | |

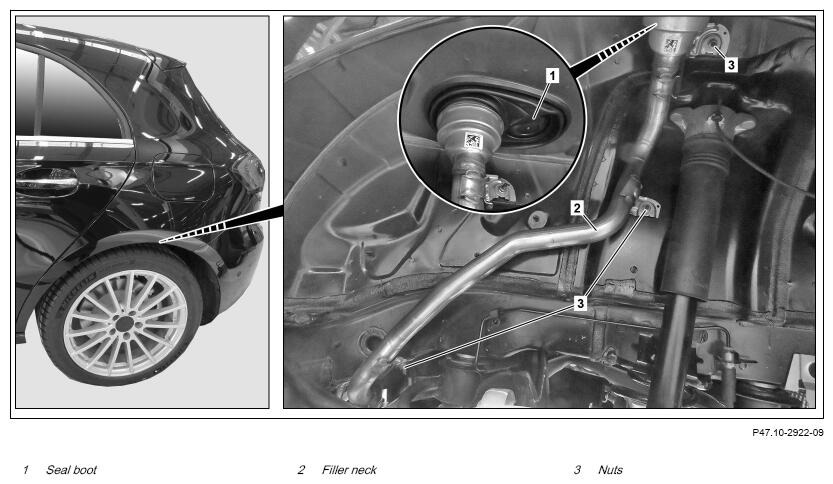

| 5 | Release sealing boot (1) from the body and push downward. | ||
| 6 | Unscrew nuts (3) from filler neck (2). | *BA47.10-P-1003-01T | |
| 7 | Remove trim from rear axle carrier. | Model 118, 177, 247 with engine 260 with code U55 (Multi-link axle) except code M016 (Uprated engine) Model 118, 177, 247 with engine 282 with code U55 (Multi-link axle) except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) |
AR61.30-P-0050MFA |

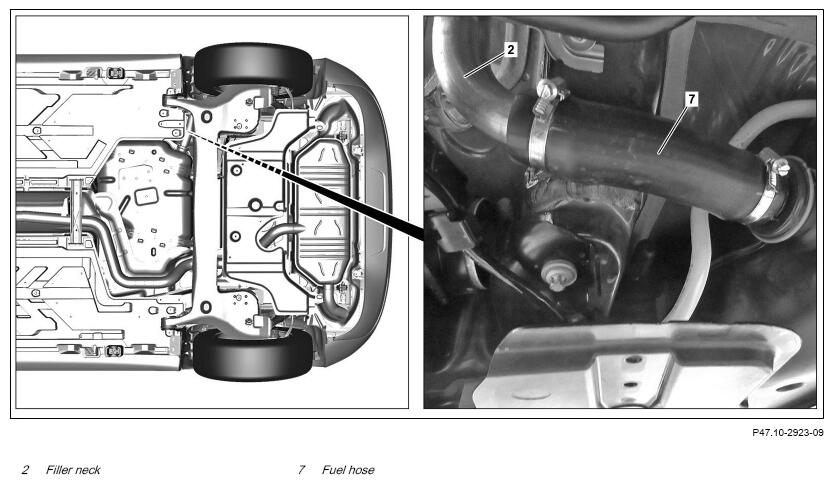

| 8 | Remove fuel hose (7) from filler neck (2) and seal it. | *BA47.10-P-1002-01T | |
| Fig 1 | |||
| 9 | Pull filler neck (2) out of the sealing boot (1) and remove. | ||
| 10 | Seal exposed connections using suitable plugs. | Fig 2 | |
| 11 | Install in the reverse order. |
FUEL TANK
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA47.10-P-1002-01T | Clamp, fuel hose to fuel tank/filler neck | Nm | 4 | 4 |
FUEL TANK
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA47.10-P-1002-01T | Clamp, fuel hose to fuel tank/filler neck | Nm | 4 |
FUEL TANK
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA47.10-P-1003-01T | Nut, filler neck to body | M6 | Nm | 6 | 6 |
FUEL TANK
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA47.10-P-1003-01T | Nut, filler neck to body | M6 | Nm | 6 |
