Remove/Install Rear Door Lower Hinge - AR72.12-P-2663MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3/6, 177, 243, 247

MODIFICATION NOTES

20.07.2023	Remove cover and remove grub screw by three revolutions, added.	Operation step 7
20.07.2023	Tighten grub screw, added.	Operation step 16
18.10.2023	Screw hinge on rear door	Model 118	BA72.12-P-1001-01R

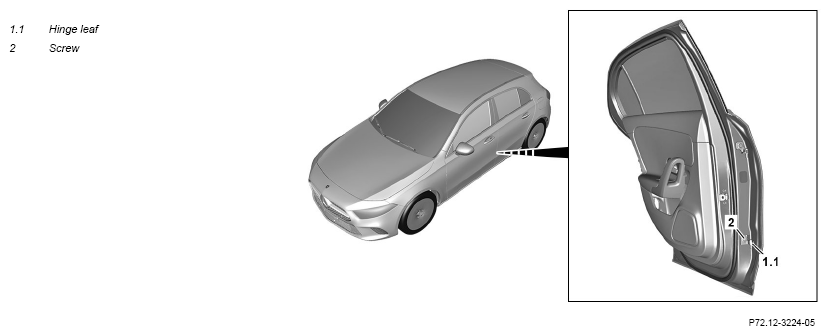

Shown on model 177.0

Courtesy of MERCEDES-BENZ USA

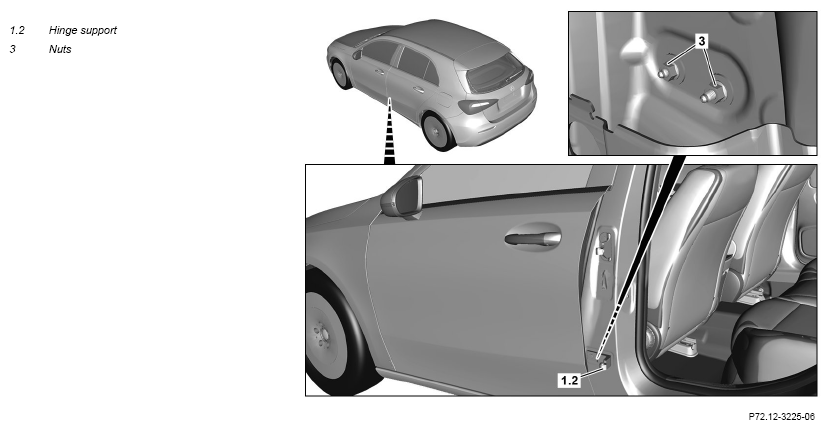

Shown on model 177.0

Courtesy of MERCEDES-BENZ USA

	Risk of injury during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Move left and/or right front seat to foremost position.
2	Detach ground line of on-board electrical system battery.		AR54.10-P-0003MFA
3	Remove lower B-pillar trim.		AR68.30-P-4705MFA
4	Release left front reversible belt tensioner (A76) and/or right front reversible belt tensioner (A76/1) and place to one side.		AR91.40-P-1010MFA
5	Mark installation position of hinge leaf (1.1) and hinge support (1.2).	Lower hinge consists of hinge leaf (1.1) and hinge support (1.2).
6	Support rear door using suitable means and fix in place.	Support rear door and fix in place. Rear door will otherwise be damaged.
7	Remove cover and remove grub screw by three revolutions.
8	Remove nuts (3).
9	Unscrew screw (2) and remove hinge leaf (1.1) with hinge support (1.2).
	Install
10	Clean contact surfaces in area of hinge supports.	Cleaner	*BR00.45-Z-1025-04A
11	Align hinge leaf (1.1) at rear door by means of the previously applied markings and slightly tighten screw (2) by hand.
12	Align hinge support (1.2) with previously applied markings and slightly tighten nuts (3) by hand.	Helper required.
13	Close and open rear door.	The installation position of the rear door may change later due to opening and closing.
	Check
14	Check gap dimensions on the rear door.	Model 243.6/7	AR60.00-P-0700-01EQA
		Model 118.3/6	AR60.00-P-0700-01MFC
		Model 177, 247	AR60.00-P-0700-01MFA
		Model 118.3/6 Front door to rear door	*BE60.00-P-1010-01NA
		Model 118.3/6 Longitudinal member panel to front door/rear door	*BE60.00-P-1024-01NA
		Model 118.3/6 Front door to fender	*BE60.00-P-1009-01NA
		Model 177 Rear door to side wall	*BE60.00-P-1011-01JA
		Model 177 Longitudinal member panel to fender/front door/rear door	*BE60.00-P-1025-01JA
		Model 177 Front door cover to rear door cover (B-pillar)	*BE60.00-P-1010-01JA
		Model 177 Front door to rear door	*BE60.00-P-1009-01JA
		Model 243.6/7, 247 Rear door to side wall	*BE60.00-P-1011-01MA
		Model 247 Longitudinal member panel to front door/rear door	*BE60.00-P-1025-01MA
		Model 243.6/7, 247 Front door cover to rear door cover (B-pillar)	*BE60.00-P-1010-01MA
		Model 243.6/7, 247 Front door to rear door	*BE60.00-P-1009-01MA
		Feeler gauge If there are problems, ↓ adjust rear door.	Fig 1
		Model 118.3/6	AR72.12-P-0650MFC
		Model 177, 243, 247	AR72.12-P-0650MFA
15	Tighten screw (2) and nuts (3).	Model 118.3/6 Nut, hinge to B-pillar	*BA72.12-P-1002-01R
		Model 118.3/6 Screw/bolt, hinge to rear door	*BA72.12-P-1001-01R
		Model 177, 243, 247 Screw/bolt, hinge to rear door	*BA72.12-P-1001-01T
		Model 177, 243, 247 Nut, hinge to body	*BA72.12-P-1002-01T
16	Tighten grub screw.	Model 177, 243, 247 Grub screw to door hinge shaft	*BA72.12-P-1003-01T
	Install
17	Repair paint damage at respective bolt heads.		AR98.00-P-0150CW
18	Protect rear door and B-pillar in area of hinge leaf (1.1) and hinge support (1.2) against corrosion.	Model 243	AR97.20-P-1500EQA
		Model 118.3/6, 177, 247	AR97.20-P-1500MFA
19	Install left front reversible belt tensioner (A76) and/or right front reversible belt tensioner (A76/1).		AR91.40-P-1010MFA
20	Install lower B-pillar trim.		AR68.30-P-4705MFA
21	Connect ground line of on-board electrical system battery.		AR54.10-P-0003MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1009-01JA	Front door to rear door	Dimension "I"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1009-01JA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 243.6	Model 243.7
BE60.00-P-1009-01MA	Front door to rear door	Dimension "I"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1009-01MA	Front door to rear door	For picture, see		AR60.00-P-0700-01EQA	AR60.00-P-0700-01EQA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1009-01MA	Front door to rear door	Dimension "I"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1009-01MA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1009-01MA	Front door to rear door	Dimension "I"	mm	4 (±0, 5)
BE60.00-P-1009-01MA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 118.3	Model 118.6
BE60.00-P-1009-01NA	Front door to fender	Dimension "G"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1009-01NA	Front door to fender	For picture, see		AR60.00-P-0700-01MFC	AR60.00-P-0700-01MFC

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1010-01JA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (±1)	4 (±1)
BE60.00-P-1010-01JA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 243.6	Model 243.7
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (±1)	4 (±1)
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01EQA	AR60.00-P-0700-01EQA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (±1)	4 (±1)
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (±1)
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 118.3	Model 118.6
BE60.00-P-1010-01NA	Front door to rear door	Dimension "H"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1010-01NA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFC	AR60.00-P-0700-01MFC

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1011-01JA	Rear door to side wall	Dimension "K"	mm	3 (+0, 5)	3 (+0, 5)
BE60.00-P-1011-01JA	Rear door to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 243.6	Model 243.7
BE60.00-P-1011-01MA	Rear door to side wall	Dimension "K"	mm	3, 5 (+0, 5)	3 (+0, 5)
BE60.00-P-1011-01MA	Rear door to side wall	For picture, see		AR60.00-P-0700-01EQA	AR60.00-P-0700-01EQA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1011-01MA	Rear door to side wall	Dimension "K"	mm	3, 5 (+0, 5)	3, 5 (+0, 5)
BE60.00-P-1011-01MA	Rear door to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1011-01MA	Rear door to side wall	Dimension "K"	mm	3 (+0, 5)
BE60.00-P-1011-01MA	Rear door to side wall	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 118.3	Model 118.6
BE60.00-P-1024-01NA	Longitudinal member panel to front door/rear door	Dimension "V"	mm	5 (±1)	5 (±1)
BE60.00-P-1024-01NA	Longitudinal member panel to front door/rear door	For picture, see		AR60.00-P-0700-01MFC	AR60.00-P-0700-01MFC

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1025-01JA	Longitudinal member panel to fender/front door/rear door	Dimension "Y"	mm	5 (±1)	5 (±1)
BE60.00-P-1025-01JA	Longitudinal member panel to fender/front door/rear door	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1025-01MA	Longitudinal member panel to front door/rear door	Dimension "Y"	mm	5, 0 (±1)	-
BE60.00-P-1025-01MA	Longitudinal member panel to front door/rear door	For picture, see		AR60.00-P-0700-01MFA	-

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1025-01MA	Longitudinal member panel to front door/rear door	Dimension "Y"	mm	-
BE60.00-P-1025-01MA	Longitudinal member panel to front door/rear door	-		-

REAR DOOR

Number	Designation		Model 118
BA72.12-P-1001-01R	Screw/bolt, hinge to rear door	Nm	50

REAR DOOR

Number	Designation			Model 177, 243, 247
BA72.12-P-1001-01T	Screw/bolt, hinge to rear door	Initial tightening torque (hold period 2 s)	Nm	50
BA72.12-P-1001-01T	Screw/bolt, hinge to rear door	Follow-up tightening torque	Nm	50

REAR DOOR

Number	Designation		Model 118
BA72.12-P-1002-01R	Nut, hinge to B-pillar	Nm	32

REAR DOOR

Number	Designation		Model 177, 243, 247
BA72.12-P-1002-01T	Nut, hinge to body	Nm	32

REAR DOOR

Number	Designation		Model 177, 243, 247
BA72.12-P-1003-01T	Grub screw to door hinge shaft	Nm	20

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
