Assembly And Covering Work When Painting The Rear Fender - Ar98.00-P-0207MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247
MODIFICATION NOTES
| 17.03.2021 | Method extended. | Operation steps 3, 7, 20, 25 |

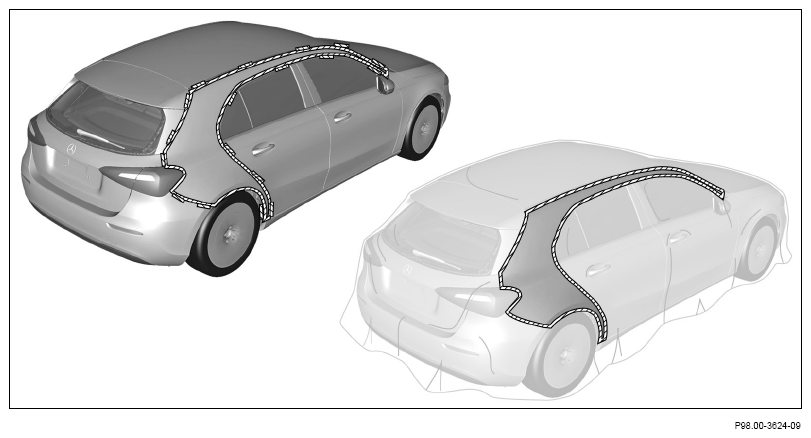

Shown on right rear fender in paint stage 2/3 in installed condition, shown on model 177.0

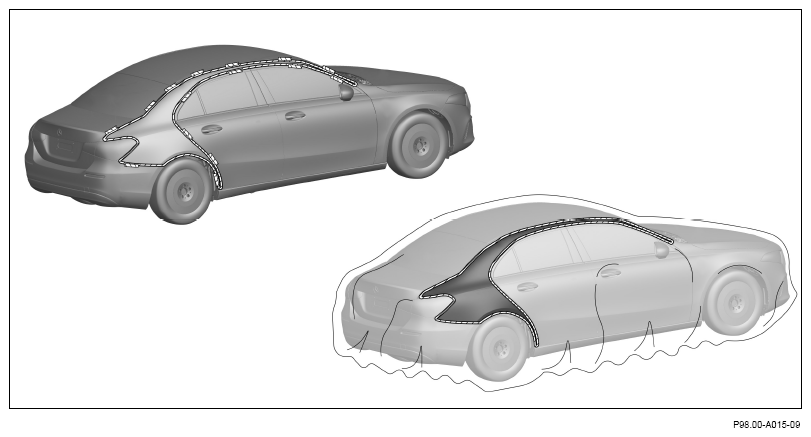

Shown on right rear fender in paint stage 2/3 in installed condition, shown on model 177.1

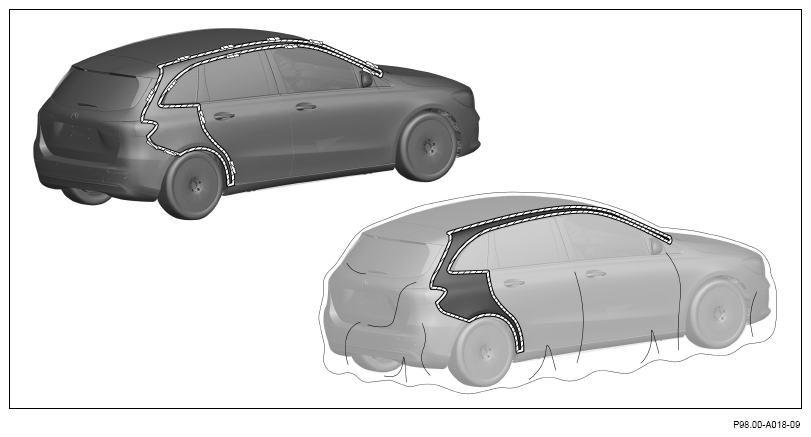

Shown on right rear fender in paint stage 2/3 in installed condition, shown on model 247.0

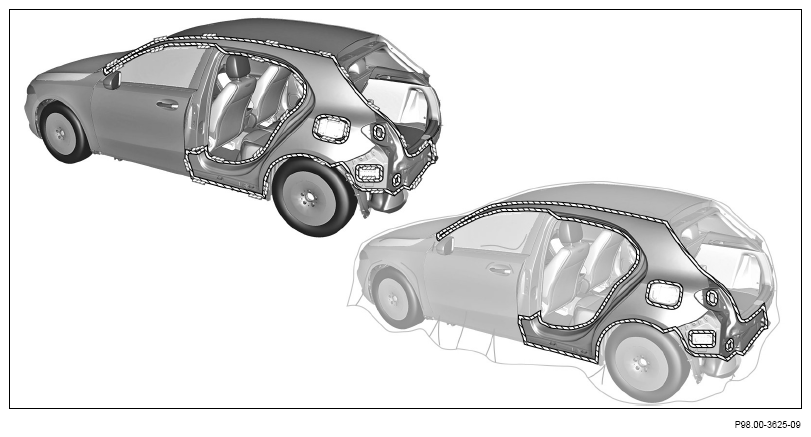

Shown on left rear fender in paint stage 3, shown on model 177.0

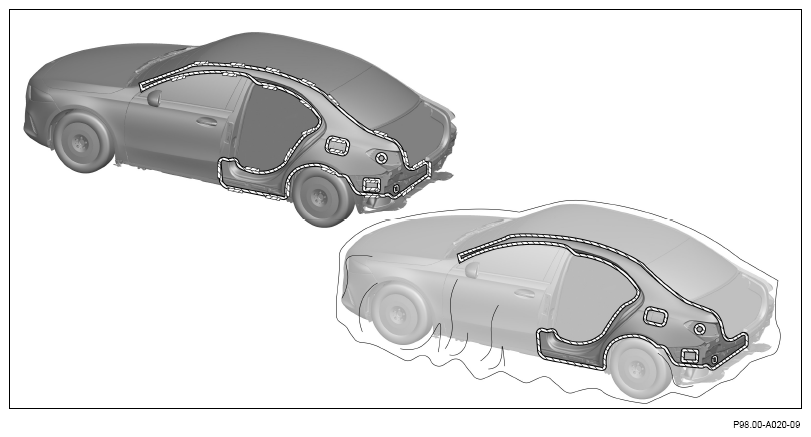

Shown on left rear fender in paint stage 3, shown on model 177.1

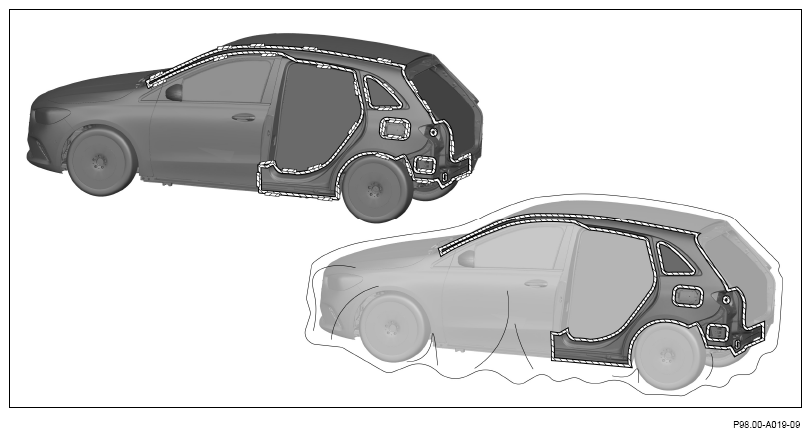

Shown on left rear fender in paint stage 3, shown on model 247.0
| Notice | Cleaning plastic cover plates of lamps | AH82.10-P-1002-01A | |
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK | ||
| Taping up, masking | |||
| 1.1 | Unfasten rear bumper. | Paint stage 3, if damaged area is not in the area of the bumper at the rear or paint stage 2. | AR88.20-P-2200MFA |
| 1.2 | Remove rear bumper. | Paint stage 3, if the damaged area is in the vicinity of the rear bumper. | AR88.20-P-2200MFA |
| 2.1 | Release longitudinal member panel. | Paint stage 3, if the damaged area is not in the vicinity of the longitudinal member panel or paint stage 2. | AR88.80-P-6000MFA |
| 2.2 | Remove longitudinal member panel. | Paint stage 3, if the damaged area is in the vicinity of the longitudinal member panel. | AR88.80-P-6000MFA |
| 3 | Remove rear lamp unit. | Model 118 Model 177 Model 247 Paint stage 3, if the damaged area is in the vicinity of the rear lamp unit. Model 118.6, 177.0, 247.0/6/7 |
AR82.10-P-4731MFA |
| Model 118.3, 177.1/9 | AR82.10-P-4731MFV | ||
| 4.1 | Release drip rail in area of roof frame at side. | Paint stage 3, if the damaged area is not in the vicinity of the drip rail or paint stage 2. | AR88.80-P-4000MFA |
| 4.2 | Remove drip rail. | Paint stage 3, if the damaged area is in the vicinity of the drip rail. | AR88.80-P-4000MFA |
| 5 | Mask off fender all the way round. | Under category "Guidelines for paint technology". |
|
| 6 | Cover areas of vehicle that are not to be painted using film. | Under category "Guidelines for paint technology". |
|
| 7 | Remove rear side window. | Paint stage 3, if the damage area is in the vicinity of the side window. Model 247.6/7 |
AR67.30-P-0007MFX |
| Model 247.0 | AR67.30-P-0007MFB | ||
| 8 | Remove fuel filler flap. | Left side of vehicle. Paint stage 3 if the damaged area is not in the vicinity of the tank filler recess, or paint stage 2. | AR88.60-P-2001MFA |
| 9.1 | Mask off tank filler recess. | Left side of vehicle. Paint stage 3 if the damaged area is not in the vicinity of the tank filler recess, or paint stage 2. Section "Guidelines for paint technology". |
|
| 9.2 | Remove tank filler recess. | Left side of vehicle. Paint stage 3, if the damaged area is in the vicinity of the tank filler recess. | AR88.60-P-2001MFA |
| 10 | Install fuel filler flap. | Left side of vehicle. Paint stage 3 if the damaged area is not in the vicinity of the tank filler recess, or paint stage 2. | AR88.60-P-2001MFA |
| 11 | Mask off inside of fuel filler flap and close fuel filler flap. | Left side of vehicle. Paint stage 3 if the damaged area is not in the vicinity of the tank filler recess, or paint stage 2. Section "Guidelines for paint technology". |
|
| 12 | Remove cover from sealing frame on trunk lid. | Paint stage 3, if the damaged area is in the vicinity of the cover on the trunk lid sealing frame. | |
| 13 | Mask off all openings using masking tape. | Section "Guidelines for paint technology". |
|
| 14 | Mask off rear fender all way round. | Section "Guidelines for paint technology". |
|
| 15 | Cover areas of vehicle that are not to be painted using film. | Section "Guidelines for paint technology". |
|
| Mask off, cover in paint stage 1E | |||
| 16 | Remove rear bumper. | AR88.20-P-2200MFA | |
| 17.1 | Remove trailer hitch. | Model 118.3/6, 177.0/1, 247 with code 550 (Trailer coupling) |
AR31.10-P-8000MFA |
| 17.2 | Remove rear crossmember under bumper. | Model 118, 177, 247 except code 550 (Trailer coupling) |
|
| 18 | Remove bracket for rear bumper. | ||
| 19 | Remove longitudinal member panel. | AR88.80-P-6000MFA | |
| 20 | Remove rear lamp unit. | Model 118 Model 177 Model 247 Model 118.6, 177.0, 247.0/6/7 |
AR82.10-P-4731MFA |
| Model 118.3, 177.1/9 | AR82.10-P-4731MFV | ||
| 21 | Remove tank filler recess. | Left side of vehicle. | AR88.60-P-2001MFA |
| 22 | Remove edge guard for trunk lid cutout. | ||
| 23 | Remove rear door. | AR72.12-P-0600MFA | |
| 24 | Remove edge guard for door cutout of rear door. | ||
| 25 | Remove rear side window. | Model 247.0 | AR67.30-P-0007MFB |
| Model 247.6/7 | AR67.30-P-0007MFX | ||
| 26 | Detach floor covering. | ||
| 27 | Remove rear fender liner. | AR88.10-P-1302MFA | |
| 28 | Mask off all openings using masking tape. | Section "Guidelines for paint technology". |
|
| 29 | Mask off rear fender all the way round. | Section "Guidelines for paint technology". |
|
| 30 | Cover areas of vehicle that are not to be painted using film. | Section "Guidelines for paint technology". |
