Remove/Install Longitudinal Member Paneling - AR88.80-P-6000MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247
MODIFICATION NOTES
| 25.06.2021 | Picture added. | P88.80-A092-76 | |
| 25.06.2021 | Work procedure revised. | Whole document. |
Shown on model 247
Shown on model 177
Shown on model 177
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open front door and rear door. | ||
| 2 | Remove rear door. | Model 118 Model 247.0 | AR72.12-P-0600MFA |

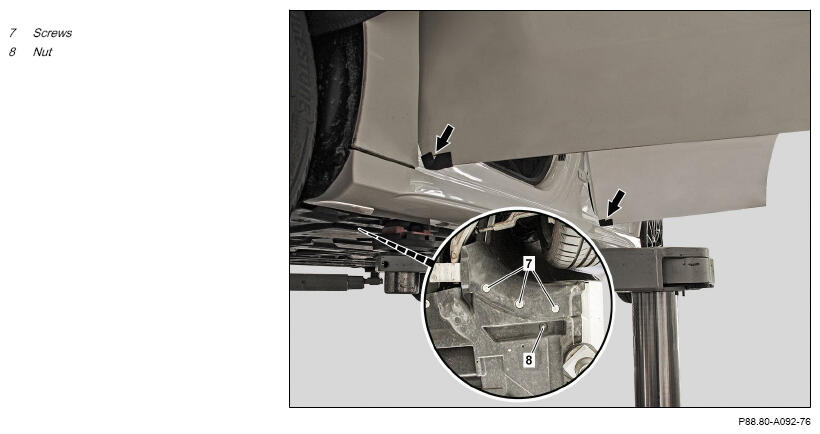

| 3 | Mask off front door and rear door in lower front area with a felt strip on each (arrows). | Model 247.6/7 This avoids damage to the longitudinal member panel (1). |
|
| Felt strip | *BR00.45-Z-1150-02A | ||

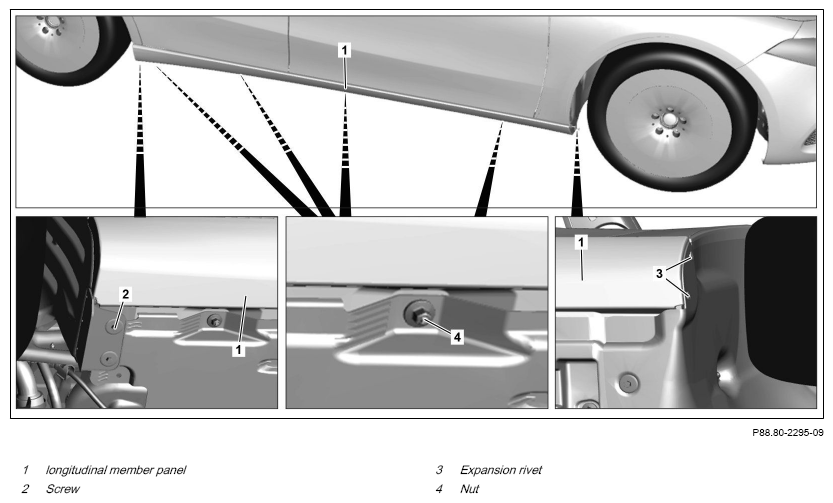

| 4 | Remove screw (2). | ||
| 5 | Remove expansion rivets (3) from front fender liner. | ||
| Fig 1 | |||
| 6 | Remove nuts (4). | ||
| 7 | Release and lift the underfloor paneling on the side until the retaining clips (5) are accessible. | ||
| 8 | Unclip retaining clips (5). | Fig 1 | |

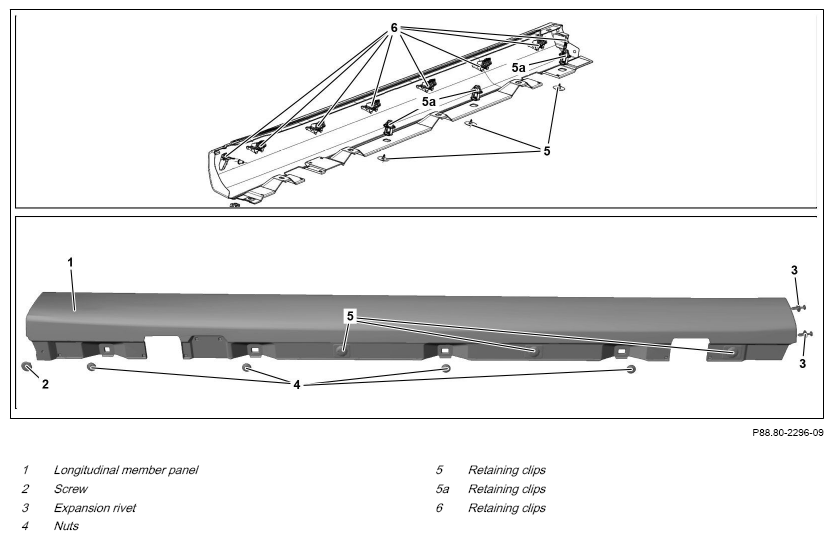

| 9 | Unclip longitudinal member panel (1) along longitudinal member and remove. | Fig 1 | |
| 10 | Place the longitudinal member panel (1) on a clean, soft base. | ||
| Check | |||
| 11 | Check old retaining clips (5, 5a, 6) for damage. | If damage is identifiable, ↓ replace damaged retaining clips (5, 5a, 6). |
|
| 12 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1150-02A | Felt strip | A 000 983 89 10 |
