Remove/Install Differential Tapered Roller Bearing - AR27.50-P-0771-01NKB

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.0 in model 117

Transmission 724.0 in model 118, 177, 247

Transmission 724.0 in model 156

Transmission 724.0 in model 176

Transmission 724.0 in model 242

Transmission 724.0 in model 246

Fig 1: Identifying Chuck (000 589 60 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Sleeve (203 589 00 14 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Thrust Piece (124 589 02 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Puller (001 589 50 33 00)

Courtesy of MERCEDES-BENZ USA

The following special tools are required: Collet (000 589 60 34 00), thrust piece (124 589 02 34 00), a puller (001 589 50 33 00), sleeve (203 589 00 14 00).

Courtesy of MERCEDES-BENZ USA

Disassemble

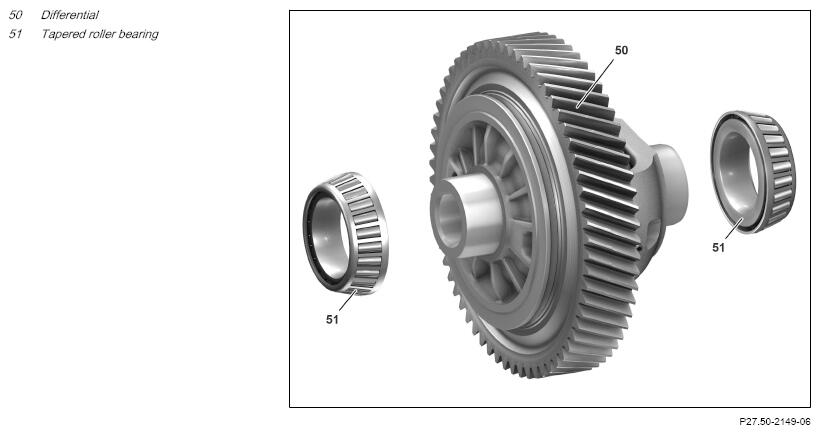

Insert thrust piece into differential (50).
Insert collet (02) onto tapered roller bearing (51).

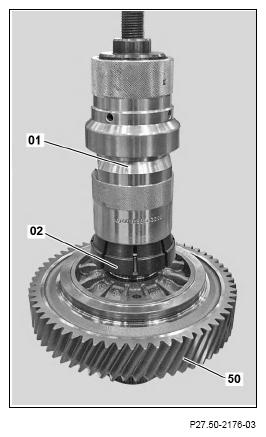

Place the puller (01) onto the collet (02) and remove the tapered roller bearing (51) from the differential (50).
Turn differential (50) around and proceed in same sequence for other tapered roller bearing (51).

Courtesy of MERCEDES-BENZ USA

Assembly

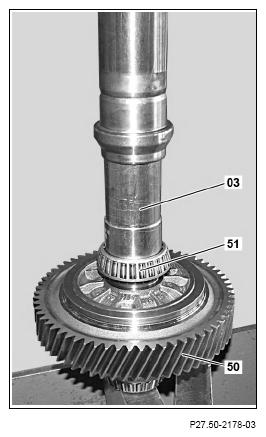

Press tapered roller bearing (51) with sleeve (03) onto differential (50).

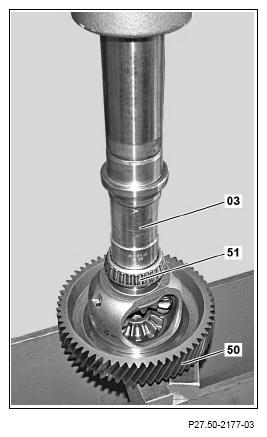

Do not tilt the tapered roller bearing (51).

Otherwise damage will occur.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
