Assemble Hollow Shaft - AR27.50-P-0650-02NKB
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 117
Transmission 724.0 in model 118, 177, 247
Transmission 724.0 in model 156
Transmission 724.0 in model 176
Transmission 724.0 in model 242
Transmission 724.0 in model 246
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB |
MODIFICATION NOTES
| 19.07.2018 | Operation step variant created. | Operation step 1 |
The following special tools are required:
Sleeve (203 589 00 14 00),
Drift (711 589 07 15 00).
- 1.1 Transmission 724.0 in model 117 Transmission 724.0 in model 156
Transmission 724.0 in model 176
Transmission 724.0 in model 242
Transmission 724.0 in model 246

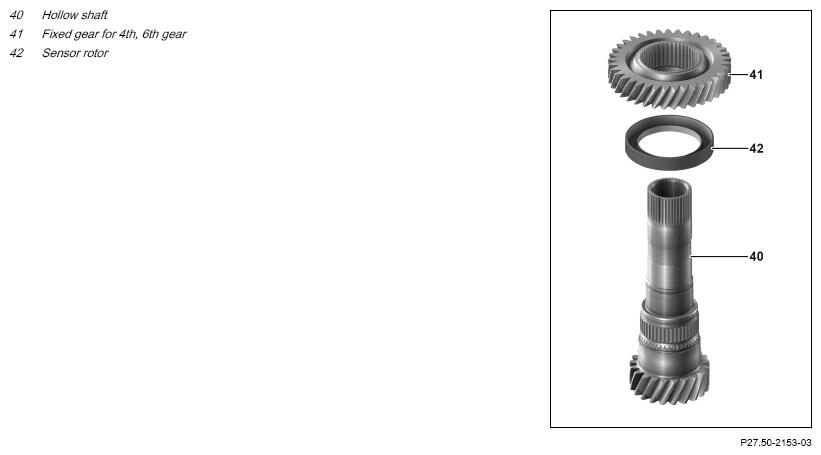

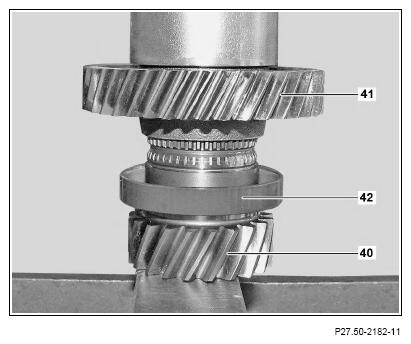

Press sensor rotor (42) with
sleeve onto hollow shaft (40).
Use new sensor rotor (42).
- 1.2 Transmission 724.0 in model 177
Check sensor rotor (42) and hollow shaft (40) for damage.
If damage is detected,
↓
Replace sensor rotor (42) with hollow shaft (40).
- 2 Use fixed gear for 4th, 6th gear (41) using
