Remove/Install Oil Engine Pan - AR01.45-P-7500MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Drain off Engine oil and remove oil filter.
		Only install lower Engine compartment paneling after leak test.	AP18.00-P-0101MFA
2	Remove the catalytic converter.		AR49.20-P-0100MFC

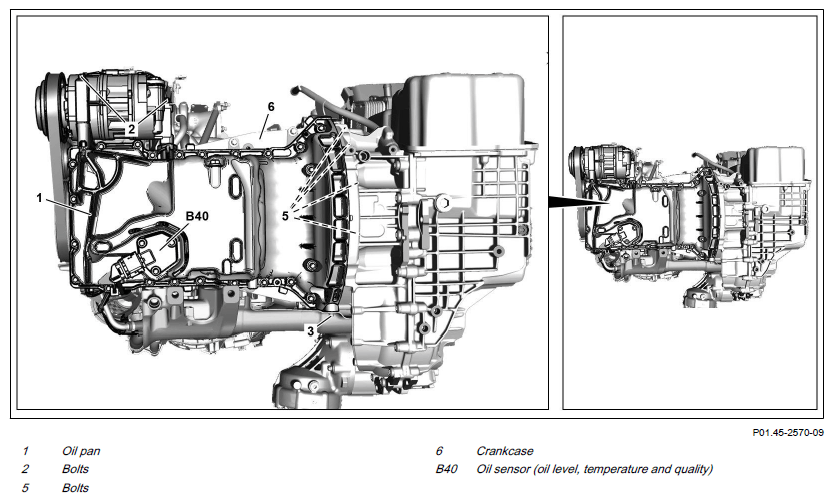

3	Release and disconnect electrical connector at oil sensor (oil level, temperature, and quality) (B40) and unclip electric line at oil pan (1).
4	Remove lower Engine stabilizer mount.		AR22.10-P-1155MFC

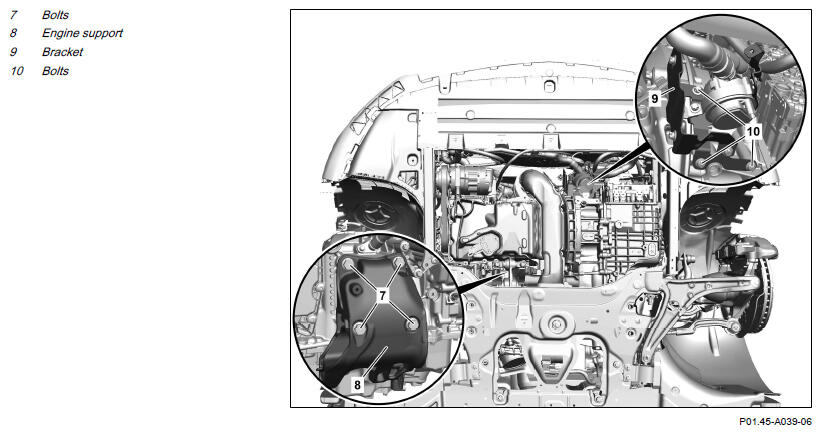

5	Unscrew bolts (7) and remove rear Engine carrier (8).	Replace screws (7). Bolt, Engine carrier to crankcase/oil pan	*BA22.10-P-1001-02E
6	Remove screws (2) from refrigerant compressor on oil pan (1).	Bolt, refrigerant compressor to timing case/oil pan	*BA83.55-P-1001-02F
7	Remove screws (10), remove holder (9) from transmission together with circulation pump and place to one side.	M6x1	*BA00.10-P-1002-04A
8	Remove screws (5) for transmission bell housing on oil pan (1).	Engine 260 in model 118, 177, 247 with transmission 724.0 Bolt, transmission to Engine	*BA27.10-P-1017-04F
		Engine 260 in model 118, 177, 247 with transmission 724.1 Bolt, transmission to Engine	*BA27.10-P-1014-06C

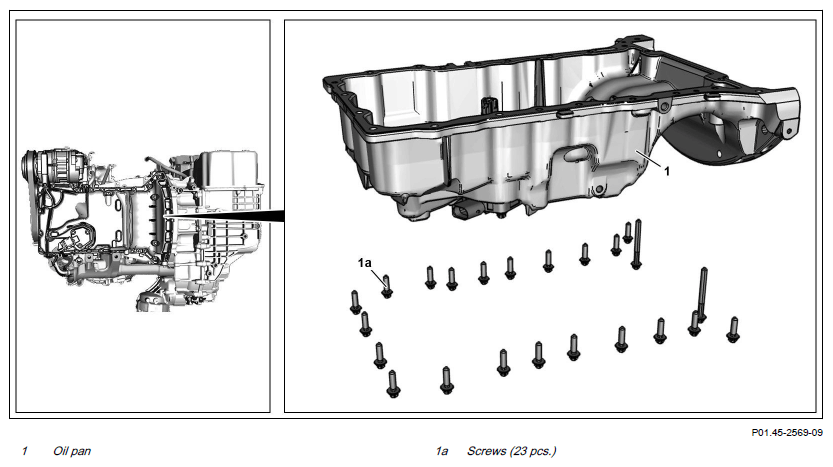

9	Remove screws (1a) in reverse order to the tightening procedure.	Tightening procedure for oil pan bolts Pay attention to different lengths of screws. Observe tightening procedure for oil pan (1).	AR01.45-P-7500-01MFC
		Bolt, oil pan to crankcase/timing case cover	*BA01.45-P-1001-01T
10	Release oil pan (1) from crankcase (6) and remove downward. Notes on sealant path for oil pan		AH01.45-P-0001-01MMA
	000 588 15 84 00 Heat gun		WS54.00-P-0125B
		Do not drive any tools between crankcase (6) and oil pan (1) to loosen them. The sealing surfaces can be damaged otherwise. Apply sealant to sealing surface of oil pan (1) and, in doing so, observe notes on sealant path on the oil pan (1). Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 1
11	Remove oil sensor (oil level, temperature, and quality) (B40).	When installing a new oil pan (1).	AR18.40-P-5112MFD
	Clean
12	Clean sealing surface of the oil pan (1).	If oil pan (1) is to be reused. Do not use any sharp-edged tools or abrasive paper. The sealing surface will otherwise be damaged.	AR01.00-P-0050-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Loctite 7200	*BR00.45-Z-1038-04A
13	Clean sealing surface of crankcase (6).	Do not use any sharp-edged tools or abrasive paper. The sealing surface will otherwise be damaged.	AR01.00-P-0050-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Loctite 7200	*BR00.45-Z-1038-04A
14	Install in the reverse order.
	Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Perform Engine test run. While doing so, check Engine for proper operation and leak tightness.
16	Install lower Engine compartment lining.	Engine 260 in model 118, 177, 247 with code M016 (Uprated Engine)	AR61.20-P-1105MFR
		Engine 260 in model 118, 177, 247 except code M016 (Uprated Engine)	AR61.20-P-1105MFA

METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number	Designation		8.8	10.9
BA00.10-P-1002-04A	M6x1	Nm	9	13

OIL PAN

Number	Designation			Engine 260
BA01.45-P-1001-01T	Bolt, oil pan to crankcase/timing case cover	M6	Nm	11

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Engine 260
BA22.10-P-1001-02E	Bolt, Engine carrier to crankcase/oil pan	M10	Stage 1	Nm	58
BA22.10-P-1001-02E	Bolt, Engine carrier to crankcase/oil pan	M10	Stage 2	∠°	90

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation		Transmission 724.1
BA27.10-P-1014-06C	Bolt, transmission to Engine	Nm	39

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation		Transmission 724.0
BA27.10-P-1017-04F	Bolt, transmission to Engine	Nm	39

REFRIGERANT COMPRESSOR

Number	Designation		Engine 260
BA83.55-P-1001-02F	Bolt, refrigerant compressor to timing case/oil pan	Nm	20

Fig 1: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant, Loctite 5970, 50 ml	A 003 989 98 20 10
BR00.45-Z-1038-04A	Loctite 7200	A 010 989 90 71
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
