Tightening Procedure For Oil Engine Pan Bolts - AR01.45-P-7500-01MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

OIL PAN

Number Designation Engine 260
BA01.45-P-1001-01T Bolt, oil pan to crankcase/timing case cover M6 Nm 11

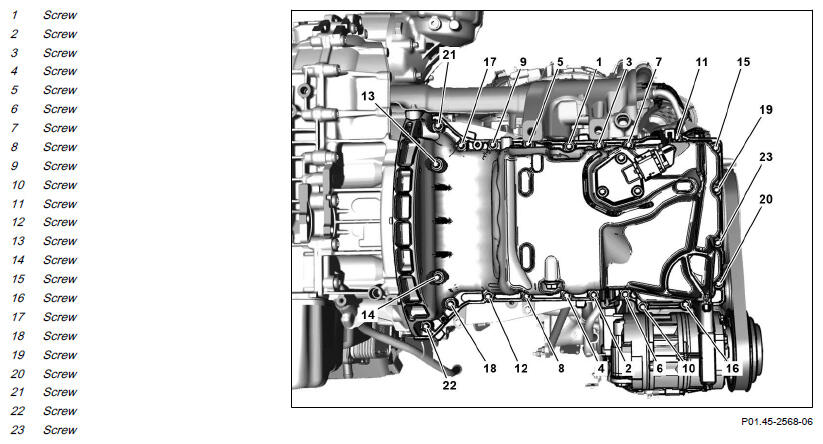

G16054185Courtesy of MERCEDES-BENZ USA
  1. Slightly tighten screws (1 to 23) by hand.

    REMOVAL IMPORTANT

    Release screws (1 to 23) in reverse order.

  2. Tighten screws (1 to 23) in numerical order TORQUE SPECIFICATION .
