Inspect Cylinders With A Light Probe - AR01.00-P-0200MFD

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260, 282 in model 118, 177, 247

MODIFICATION NOTES

10.05.2021

Information document AH01.00-P-0300-01AMG, added.

Operation step 5.

Courtesy of MERCEDES-BENZ USA

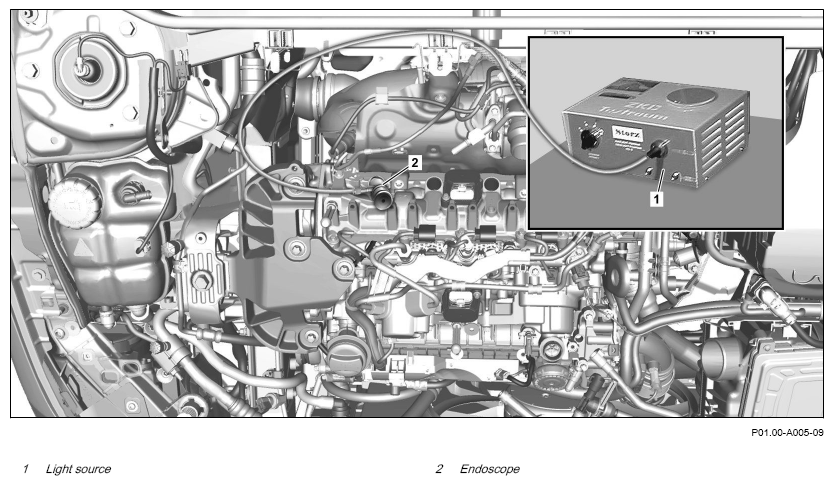

Shown on model 177 with Engine 282

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove spark plugs.
		Engine 260 in model 118, 177, 247	AP15.10-P-1580F
		Engine 282 in model 118, 177, 247	AP15.10-P-1580I
2	Remove front section of the front right fender liner.		AR88.10-P-1301MFA
3	Move piston of the cylinder to be checked at the center bolt of the crankshaft to bottom dead center (BDC).	Rotate Engine at center Bolt, crankshaft in the direction of Engine rotation. Socket wrench bit	Fig 1
4	Connect light source (1) and insert endoscope (2) through the bore of the spark plug into the cylinder.
	000 588 27 21 00 Endoscope		WS01.00-P-0252B
	Check
5	Check cylinder barrel of the cylinder to be checked for scoring. General information on inspecting cylinder walls	Engine 260 in model 118, 177, 247	AH01.00-P-0300-01A
	General information on inspecting cylinder walls	Engine 282 in model 118, 177, 247	AH01.00-P-0300-01AMG
	General information on checking valves, valve seats and valve guides		AH05.30-P-1000-02SZ
	000 588 27 21 00 Endoscope	If there is 'scoring' (wear to the cylinder), the cylinder barrel has become rough and honing marks are no longer visible. If the condition of the cylinder barrel is not clearly recognizable, ↓ Remove cylinder head.	WS01.00-P-0252B
		Engine 282 in model 118, 177, 247	AR01.30-P-5800MFD
		Engine 260 in model 118, 177, 247	AR01.30-P-5800MFC
6	Perform check of other cylinders in the same way.
7	Install in the reverse order.

Fig 1: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
