Remove/Install Rear Window - AR67.20-P-5145MFV
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3, 177.1/9
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Notes on removal/installation of rear window | AH67.20-P-2000-02A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Open side window in driver door. | The side window in the driver door must be open during the curing time of the adhesive material. This prevents the rear window (3) from being pressed outwards by the air pressure when the door are closed. |
|
| 2 | Remove C-pillar trim. | AR68.30-P-4490MFV | |
| 3 | Release and disconnect electrical connections (1). | ||
| 4 | Remove center brake lamp. | AR82.10-P-5376MFV | |
| 5 | Remove ground line (2) from ground point on C-pillar. | ||
| 6 | Fix the electric lines on the rear window (3) to the inside of the rear window (3) with tape. | ||
| 7 | Cover vehicle interior in the repair area. | ||
| 8 | Open trunk lid approx. 45° and fix in place with suitable objects. | ||
| 9 | Mask areas around the rear window (3) with suitable tape. | ||
| Risk of injury from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows | Wear protective gloves and safety glasses. | AS67.00-Z-0004-01A | |
| 10 | Cut out and remove rear window (3). | AR67.10-P-1000-11SX | |
| Clean | |||
| 11 | Remove adhesive strips and cover material from vehicle. | ||
| 12 | Clean repair area. | ||
| Install | |||
| 13 | Prepare the window frame for installation. | AR67.20-P-5145-03MFA | |
| Topical note | General notes about painting the body flange in the glazing area | AH98.00-P-9408-06A | |
| 14 | Replace rubber spacer disks. | ||
| 15 | Prepare rear window (3) for installation. | AR67.10-P-1000-03MFA | |
| 16 | Align rear window (3) in body opening. | AR67.20-P-4050-04MFV | |
| Height of rear window to roof | *BE67.20-P-1007-01S | ||
| Rear window to roof | *BE67.20-P-1006-01S | ||
| Height of rear window to side wall | *BE67.20-P-1005-01S | ||
| Rear window to side wall | *BE67.20-P-1004-01S | ||

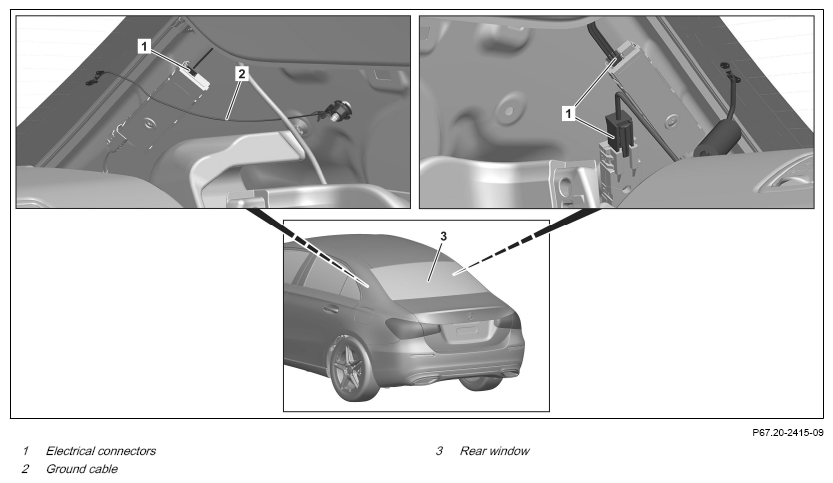

| Fig 1 | |||
| 17 | Remove protective foil from rubber spacer disks on rear window (3). | ||
| 18 | Apply adhesive material. | AR67.20-P-3000-05MFA | |
| Topical note | Notes on handling adhesive | AH67.00-P-1000-01A | |
| Fig 2 | |||
| 19 | Align rear window (3) in body opening according to adhesive strips, firmly press on and fix in place with suitable tape. | Only perform the following work after the curing time. |
|
| 20 | Close side window of the driver's door. | ||
| 21 | Install ground line (2) on ground point of C-pillar. | ||
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| *BA00.19-P-1037-02E | |||
| 22 | Connect electrical connectors (1). | ||
| 23 | Install center brake lamp. | AR82.10-P-5376MFV | |
| 24 | Install C-pillar trim. | AR68.30-P-4490MFV | |
| 25 | Remove fixation and close trunk lid. |
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1004-01S | Rear window to side wall | Dimension "D" | mm | 3 (±1) | 3 (±1) |
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1005-01S | Height of rear window to side wall | Dimension "D1" | mm | -4, 5 (±1, 5) | -3, 5 (±1, 5) |
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1006-01S | Rear window to roof | Dimension "E" | mm | 2, 5 (±1) | 2, 5 (±1) |
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1007-01S | Height of rear window to roof | Dimension "E1" | mm | -2 (±1) | -2 (±1) |
GROUND POINTS
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA00.19-P-1037-02E | Ground point (left rear window heater) | W13/1 | Nm | - | 10 |
