Align Rear Window In Body Opening - AR67.20-P-4050-04MFV
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3, 177.1/9
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1004-01S | Rear window to side wall | Dimension "D" | mm | 3 (±1) | 3 (±1) |
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1005-01S | Height of rear window to side wall | Dimension "D1" | mm | -4, 5 (±1, 5) | -3, 5 (±1, 5) |
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1006-01S | Rear window to roof | Dimension "E" | mm | 2, 5 (±1) | 2, 5 (±1) |
TEST AND ADJUSTMENT VALUES FOR REAR WINDOW
| Number | Designation | Model 118.3 | Model 177.1/9 | ||
|---|---|---|---|---|---|
| BE67.20-P-1007-01S | Height of rear window to roof | Dimension "E1" | mm | -2 (±1) | -2 (±1) |
- Install cup suction tools on rear window.
- Place rear window on spacers on body flange.
Helper required.

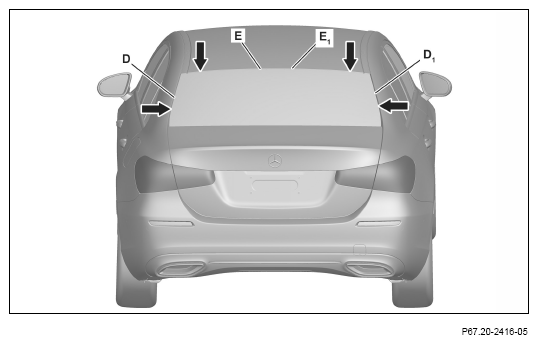

- Align rear window with
feeler gauge between rear window and roof according to dimension E and then center at the side.
- Check dimensions D, D1, and E1 and correct if necessary.
- Glue on suitable adhesive strips (arrows) and cut along edge of rear window.
Do not remove strips of adhesive tape (arrows).
- Remove rear window from body flange.
Helper required.
